Courtesy Lamp
>>
Glove Box Lamp
Glove Box Lamp

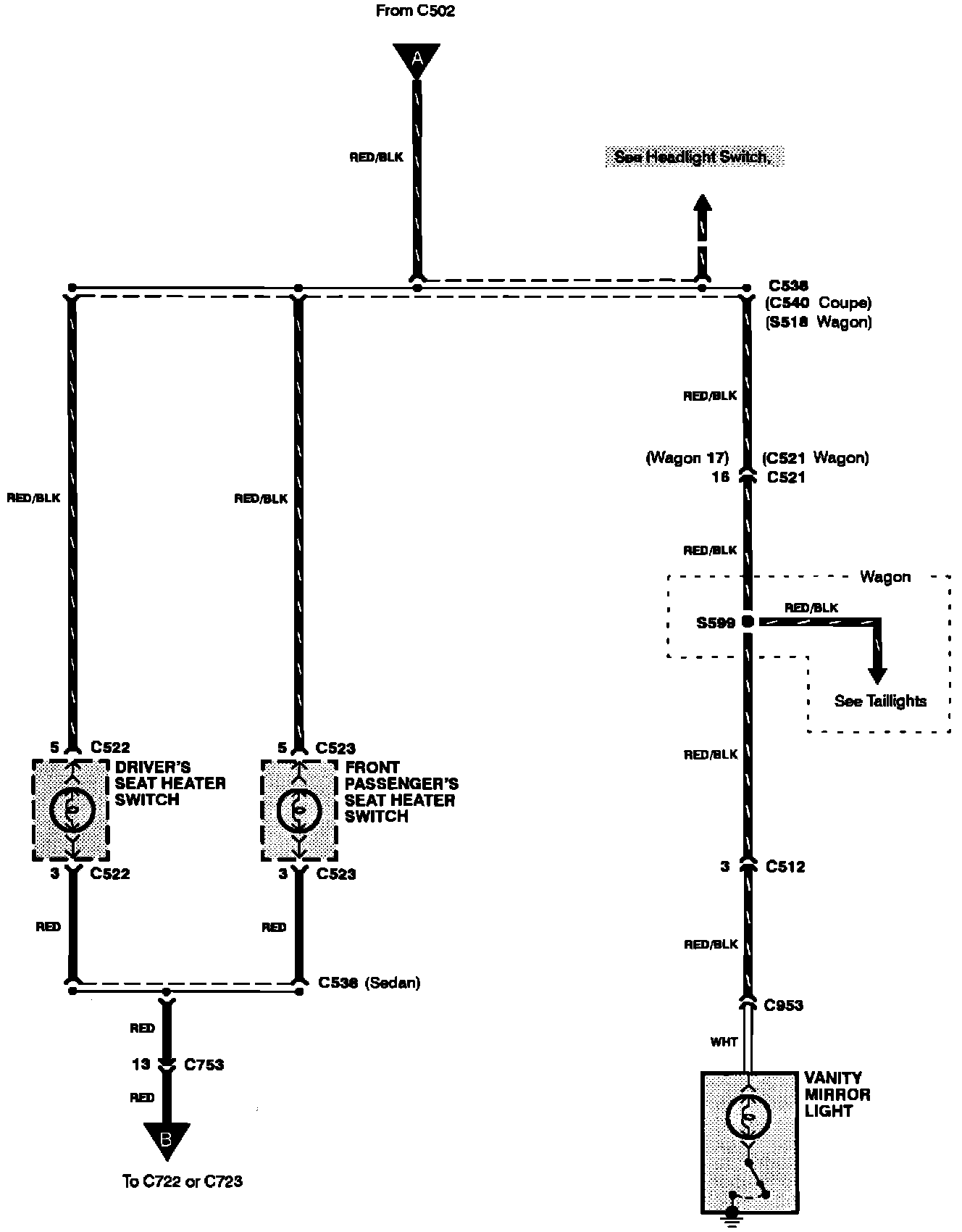

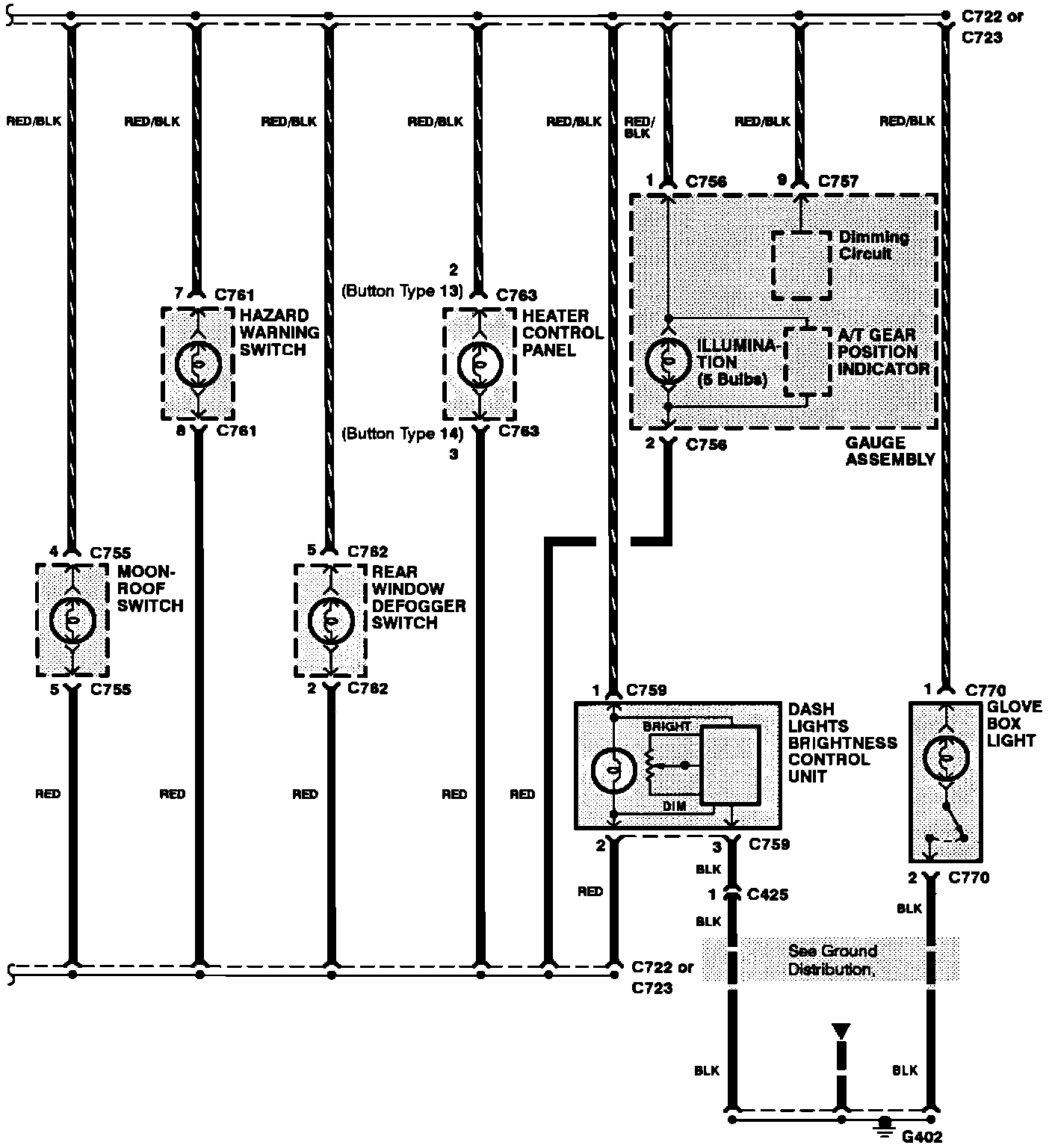

Dash, Glove Box, Vanity Mirror, And Console Lights:
Dash, Glove Box, Vanity Mirror, And Console Lights:
Dash, Glove Box, Vanity Mirror, And Console Lights:
