Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Sedan

Sedan

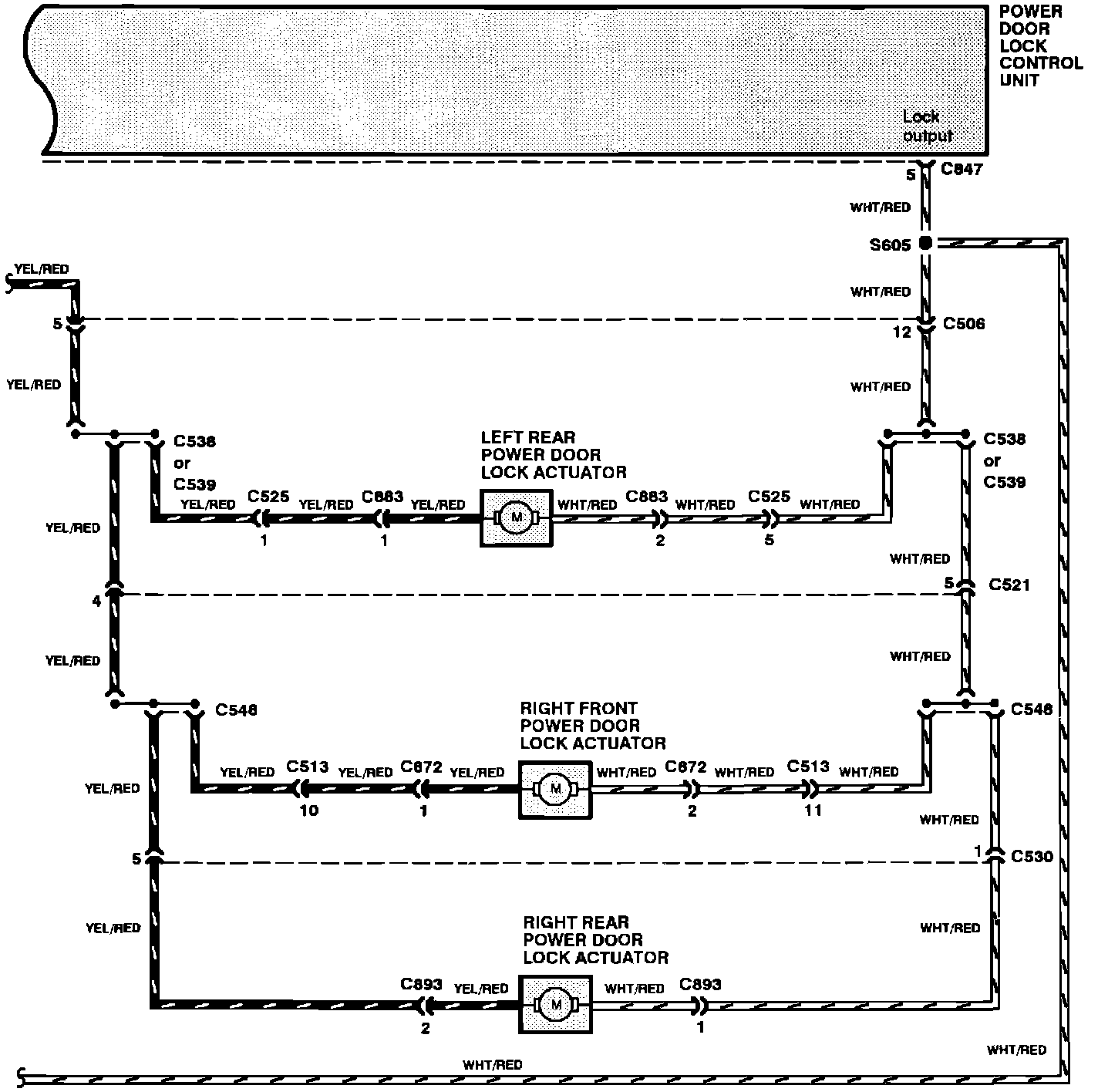

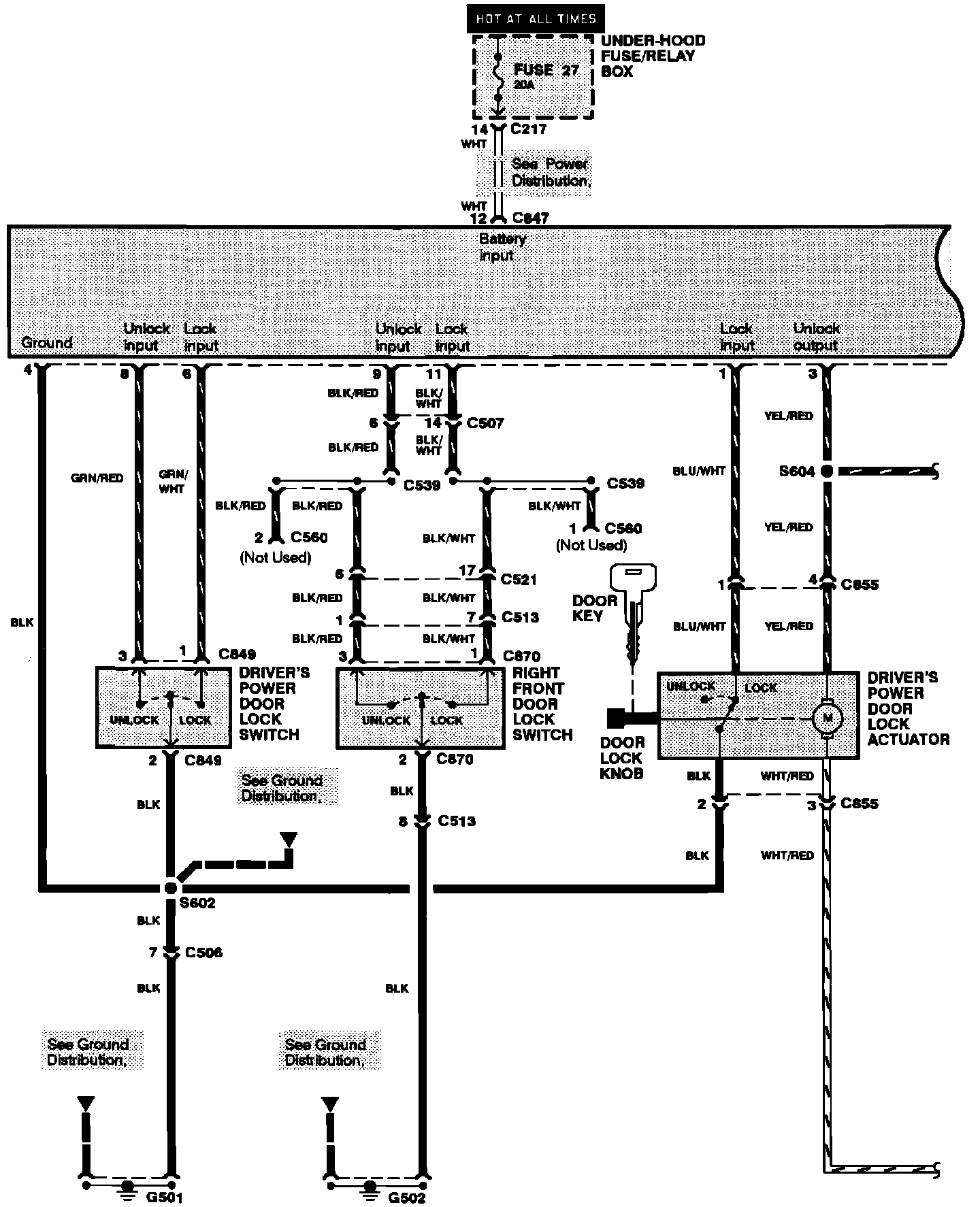

Power Door Locks (Sedan):



Power Door Locks (Sedan):
