Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Wagon

Wagon

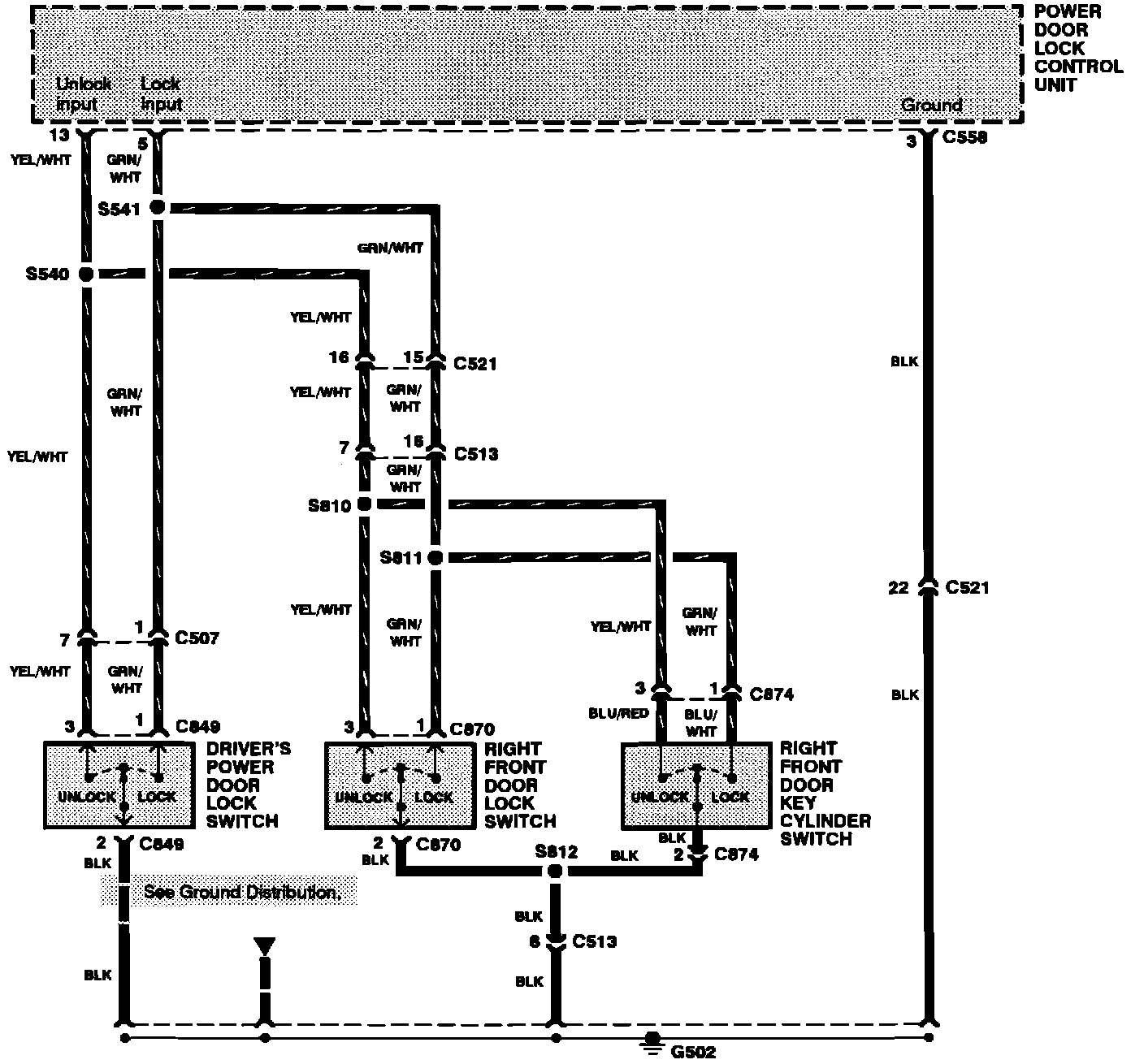

Power Door Locks (Wagon):



Power Door Locks (Wagon):



Power Door Locks (Wagon):



Power Door Locks (Wagon):
