Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp >> Wagon

Wagon

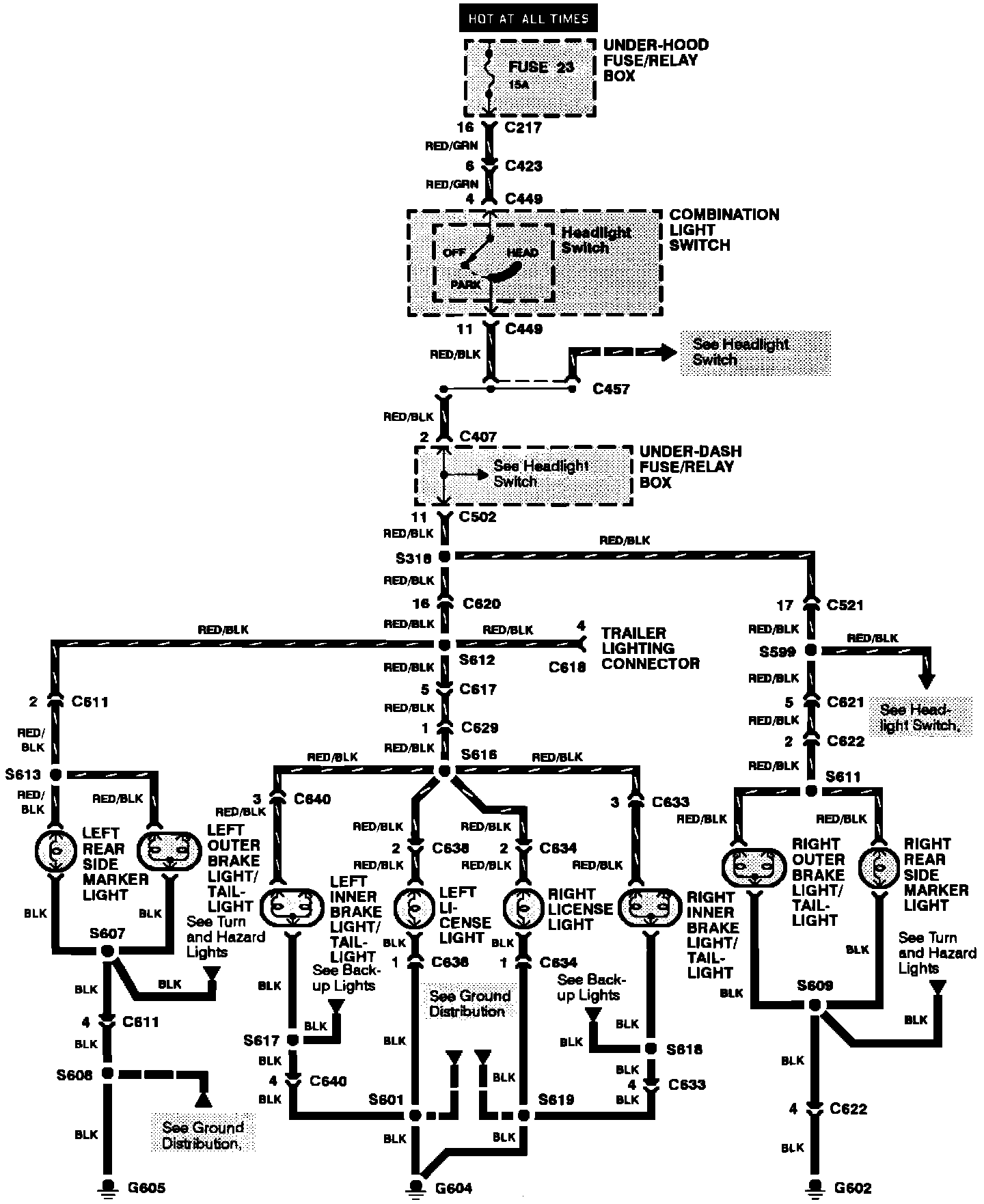

Tail, Rear Side Marker, And License Plate Lights (Wagon):
