Trailer Lighting Module

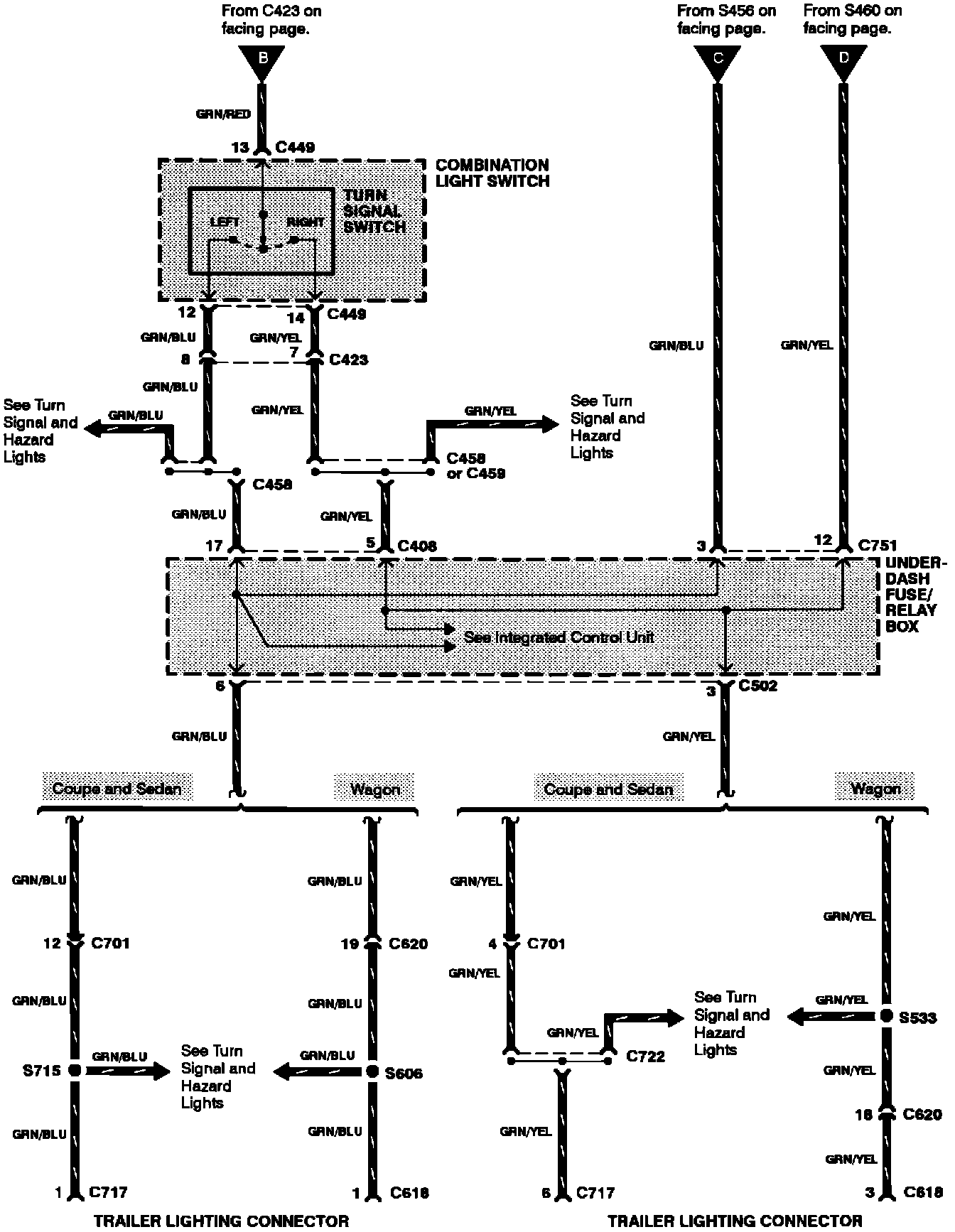

Trailer Lighting Module

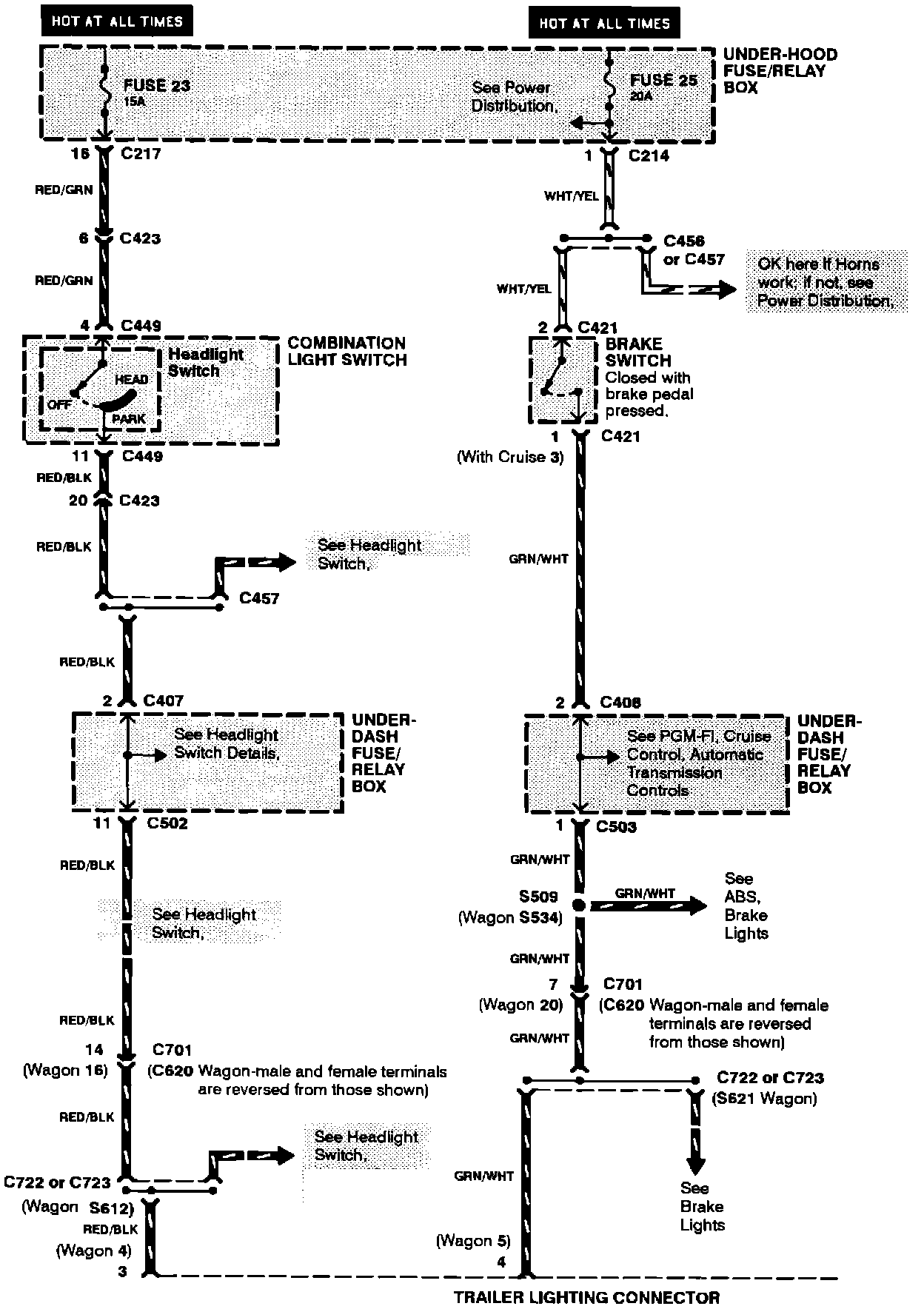

Trailer Light Connector:

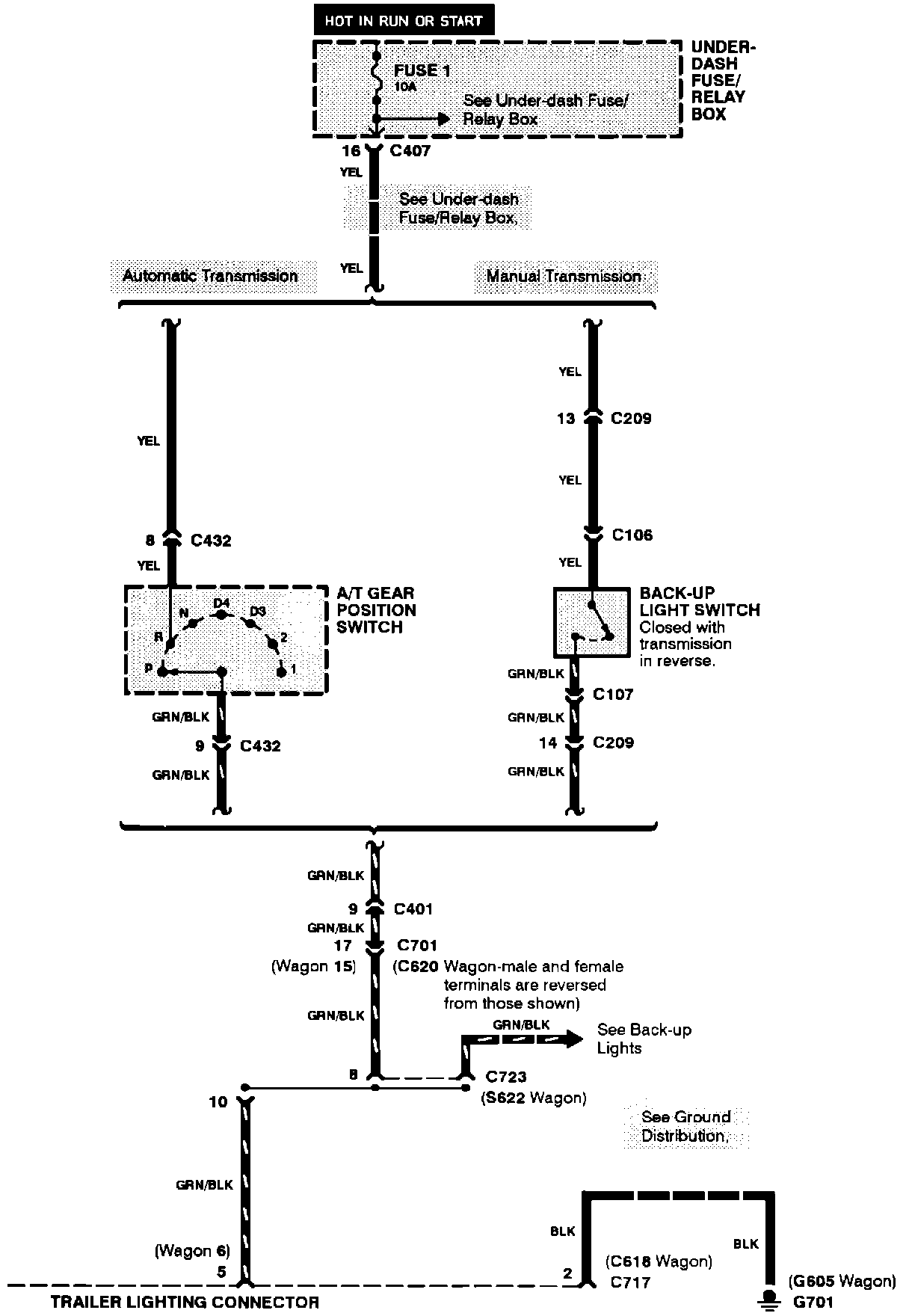

Trailer Light Connector:
Trailer Light Connector:
Trailer Light Connector:
