Trunk Lamp

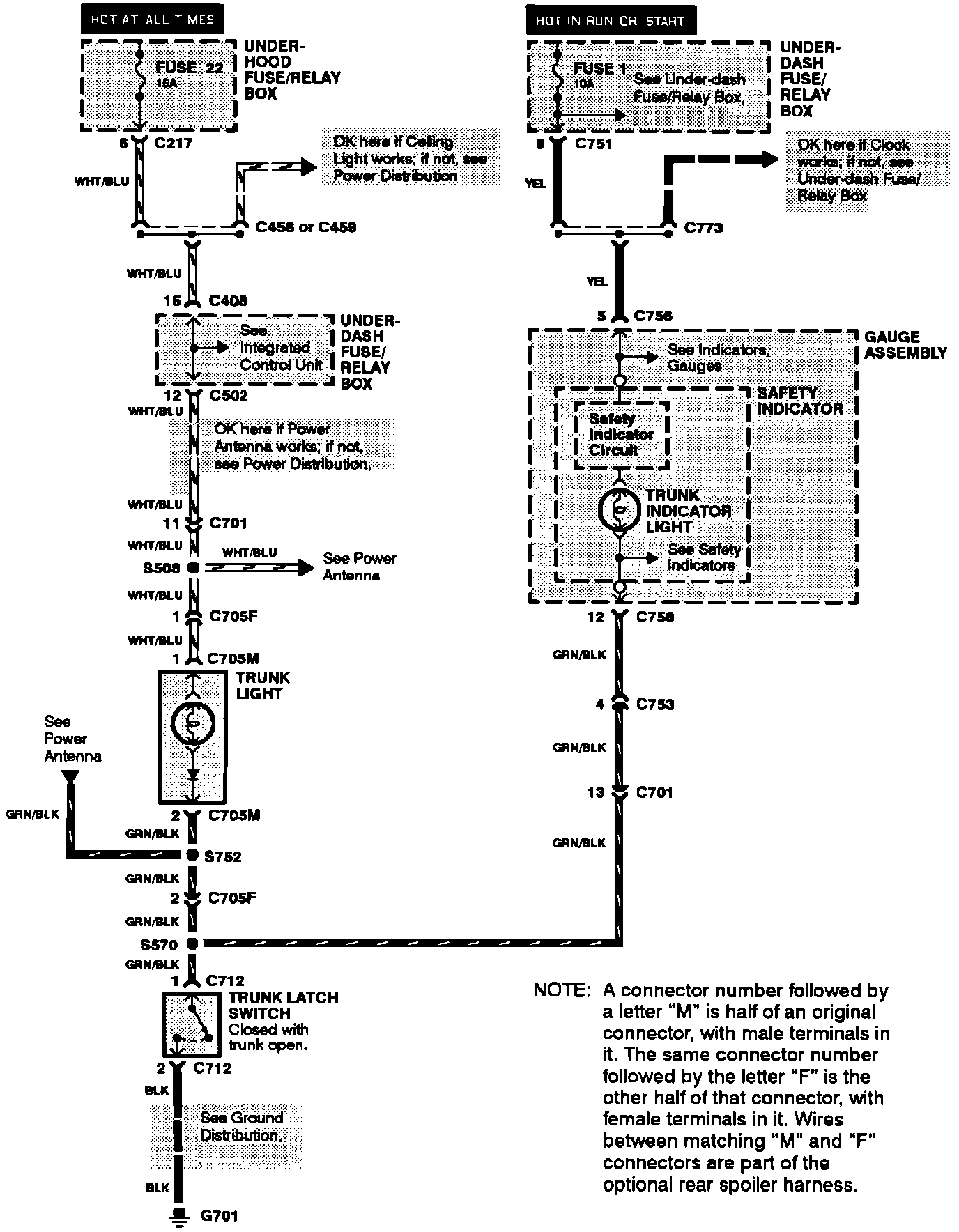

Trunk Light (Coupe And Sedan) (without Optional Rear Spoiler):

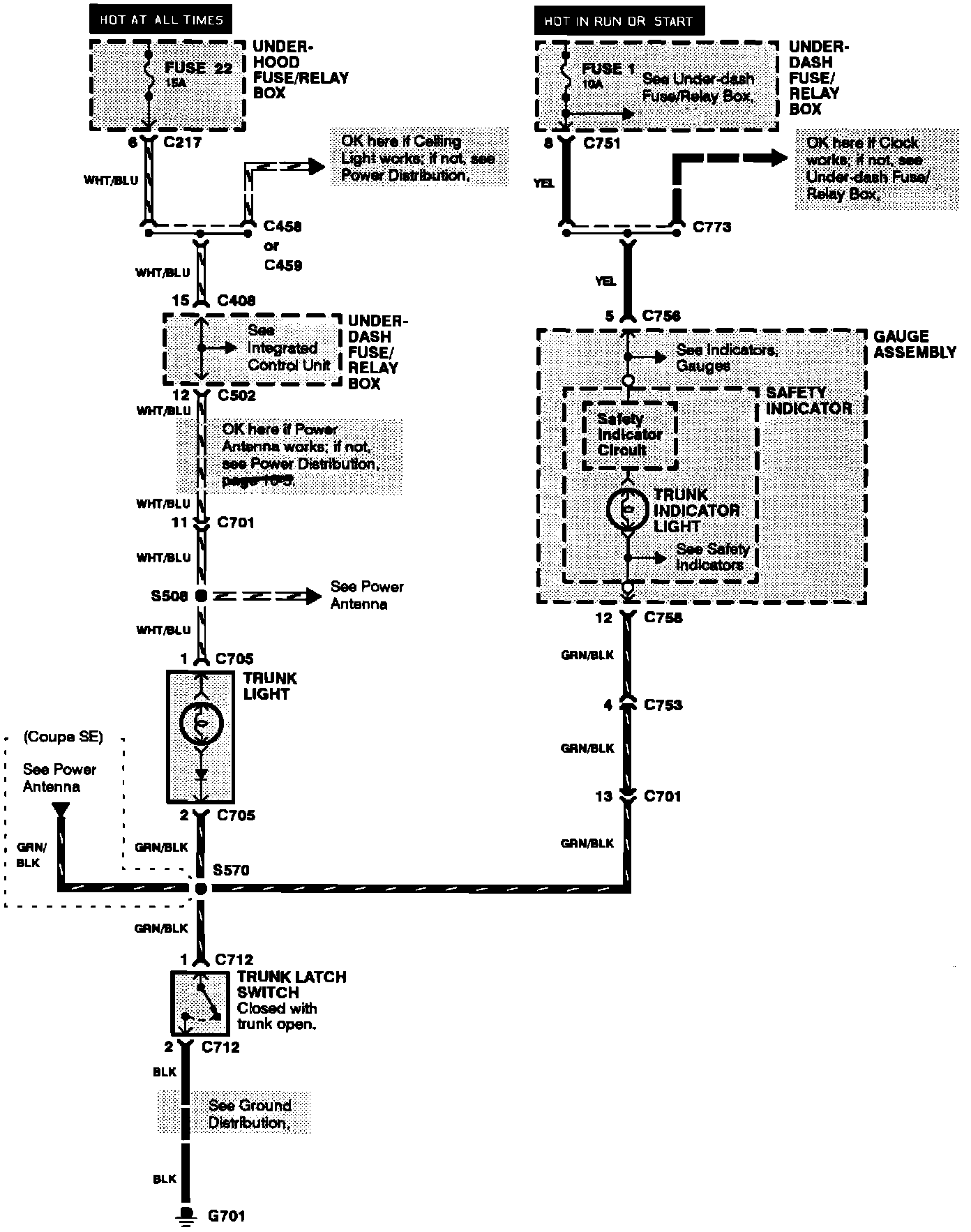

Trunk Light (Coupe And Sedan) (with Optional Rear Spoiler):
