System Diagram

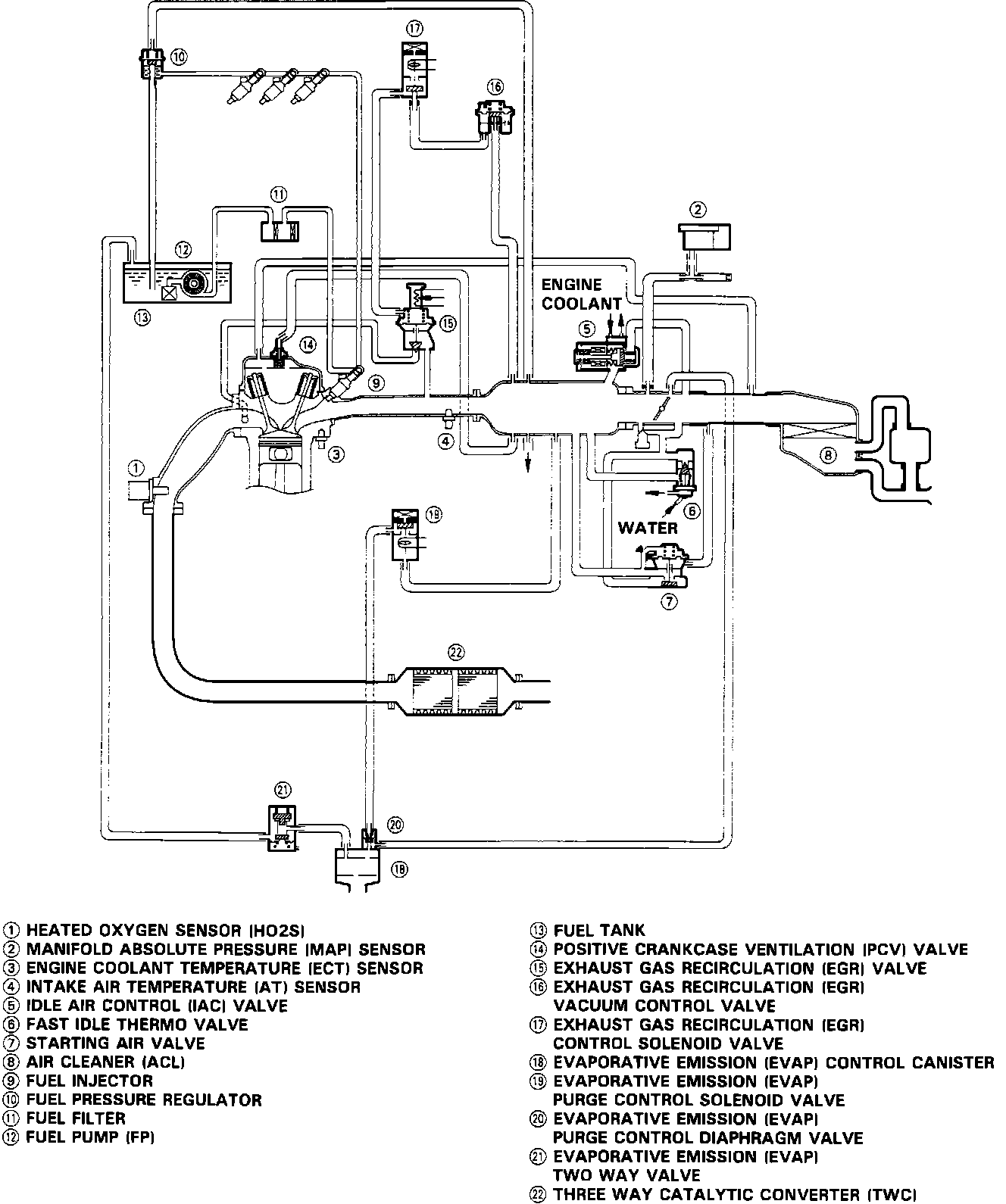

Schematic View Vacuum Connections DX And LX Models:



Schematic View Vacuum Connections EX And SE Models:
