Honda
>>
1993
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
A/C Compressor Controls
A/C Compressor Controls

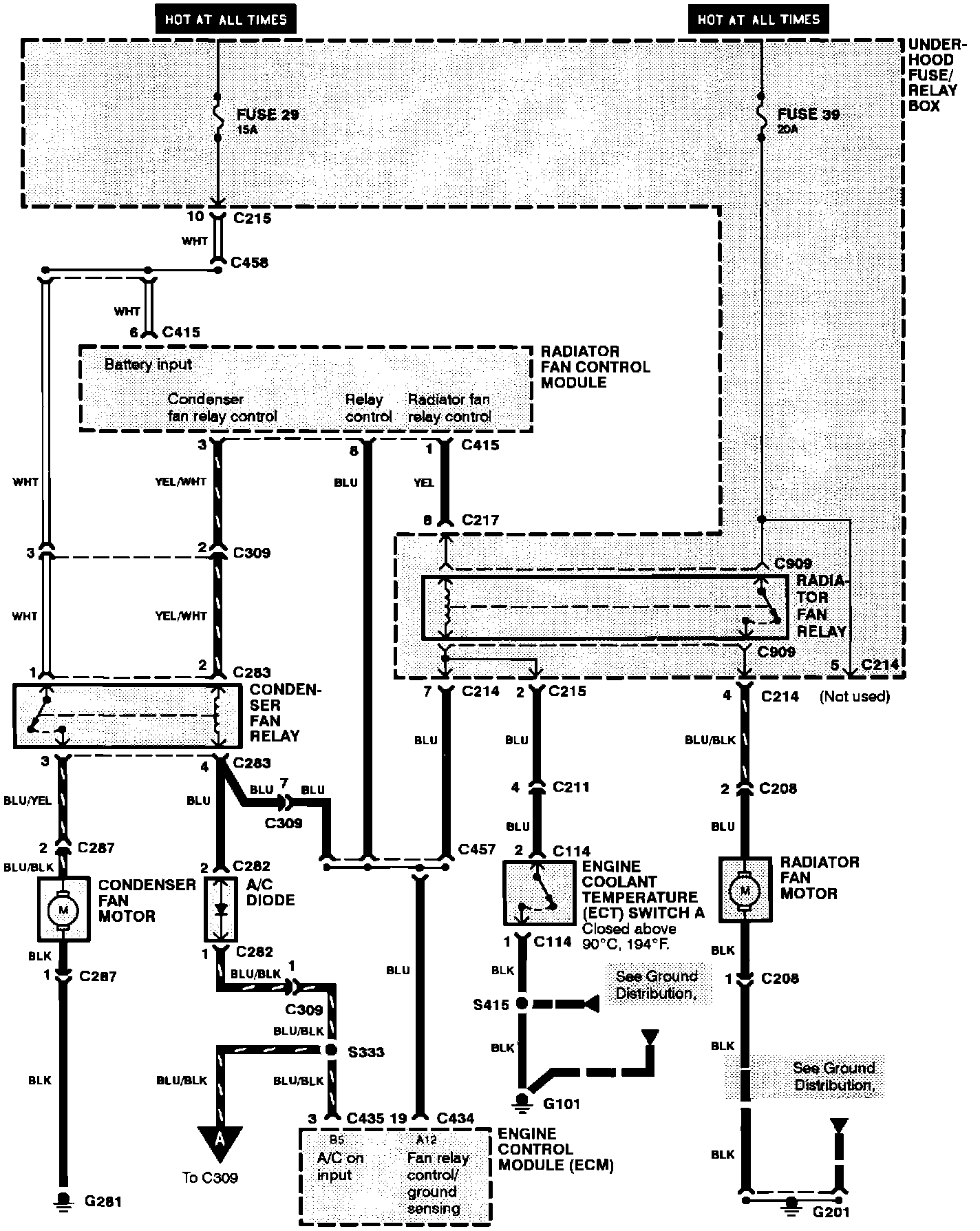

A/C: Fans And Compressor Control, Part 1 Of 3:
A/C: Fans And Compressor Control, Part 2 Of 3:
A/C: Fans And Compressor Control, Part 3 Of 3:
