Electrical Diagrams

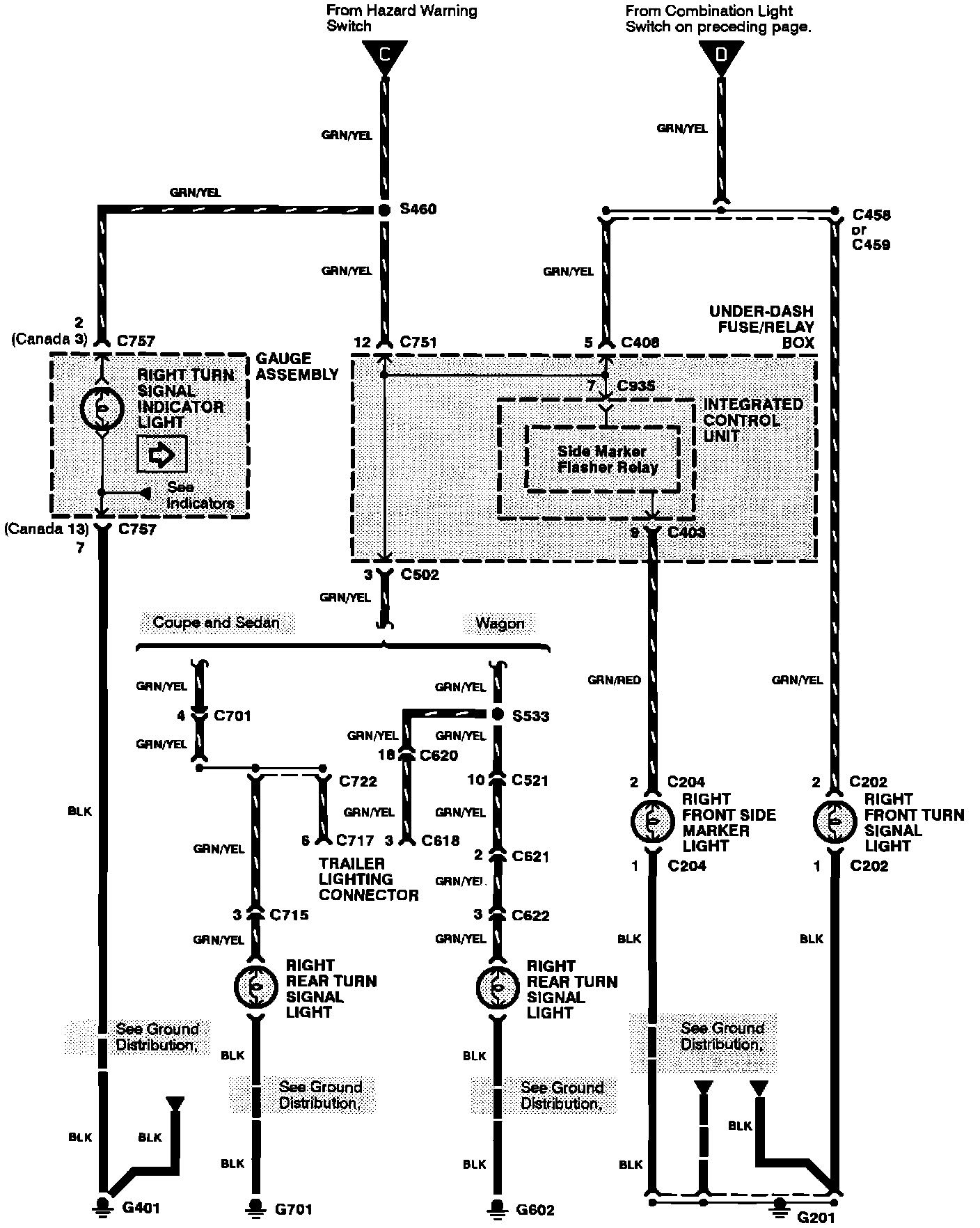

Turn Signal, Front Side Marker, And Hazard Lights:

Turn Signal, Front Side Marker, And Hazard Lights:

Turn Signal, Front Side Marker, And Hazard Lights:
