Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Engine Compartment Left Side
Engine Compartment Left Side

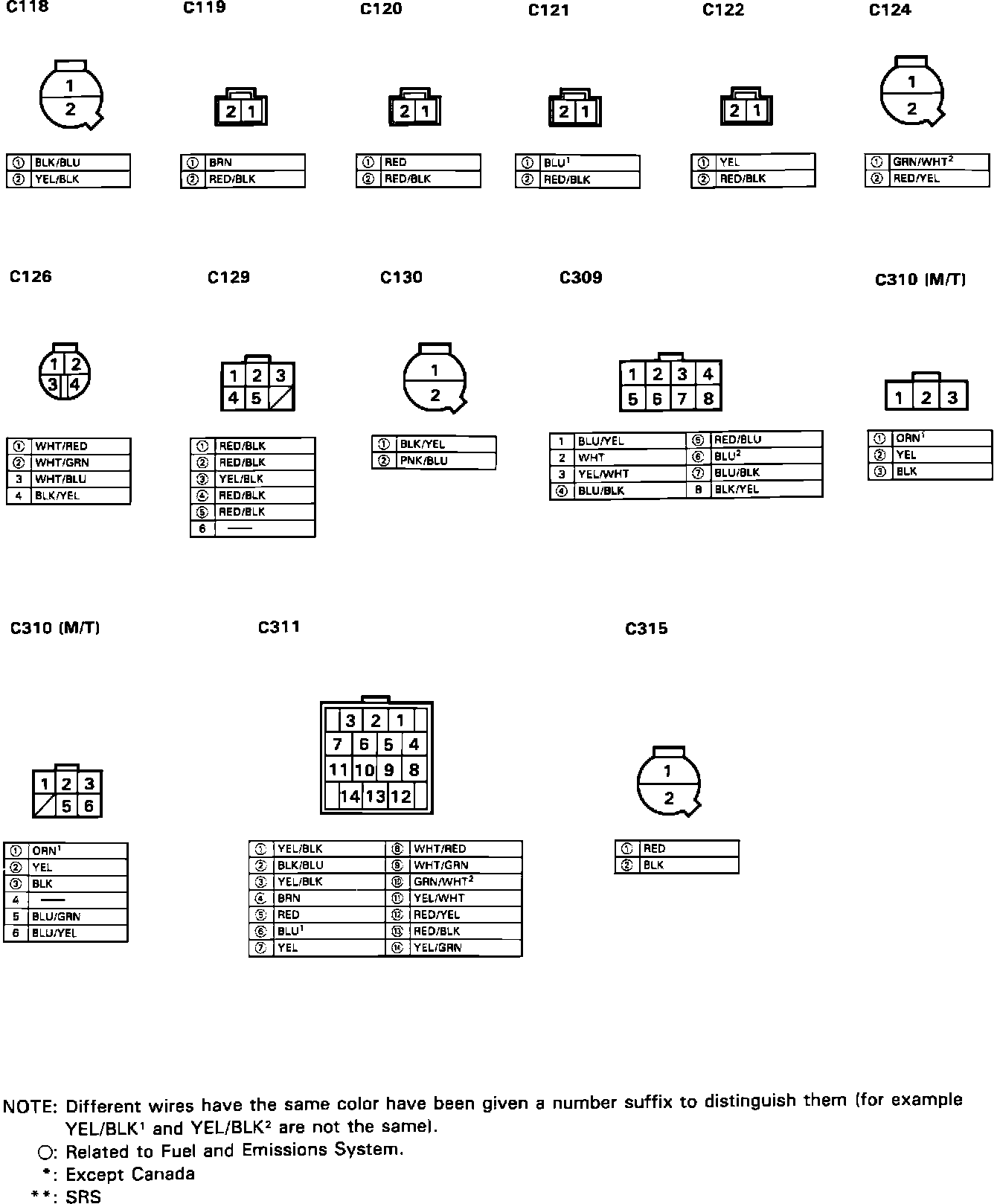

Connector Identification And Wire Location:
