Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 1 of 9

Part 1 of 9

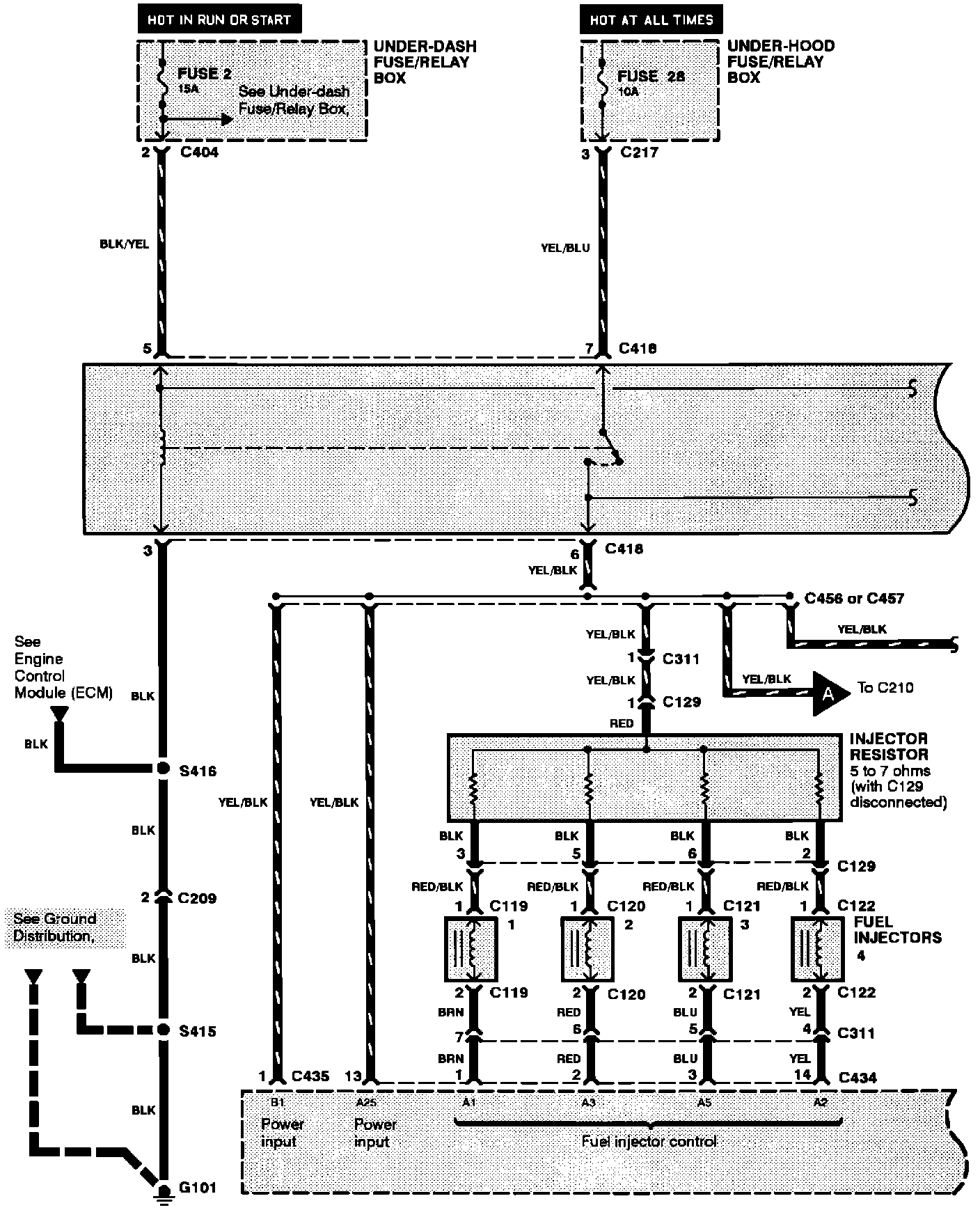

Engine Management (PGM-FI):
