Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 3 of 9

Part 3 of 9

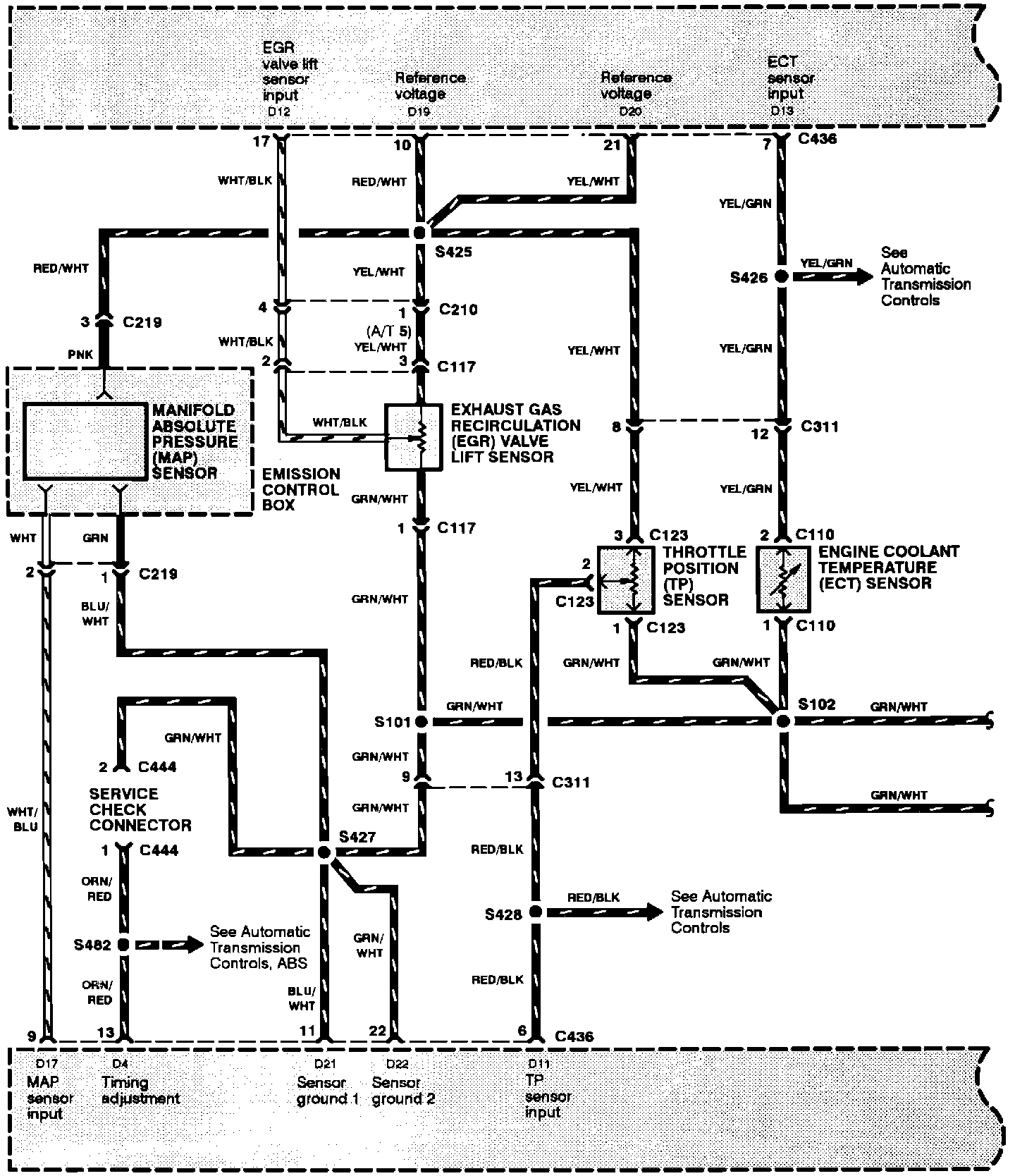

Engine Management (PGM-FI):
