Catalytic Converter: Service and Repair

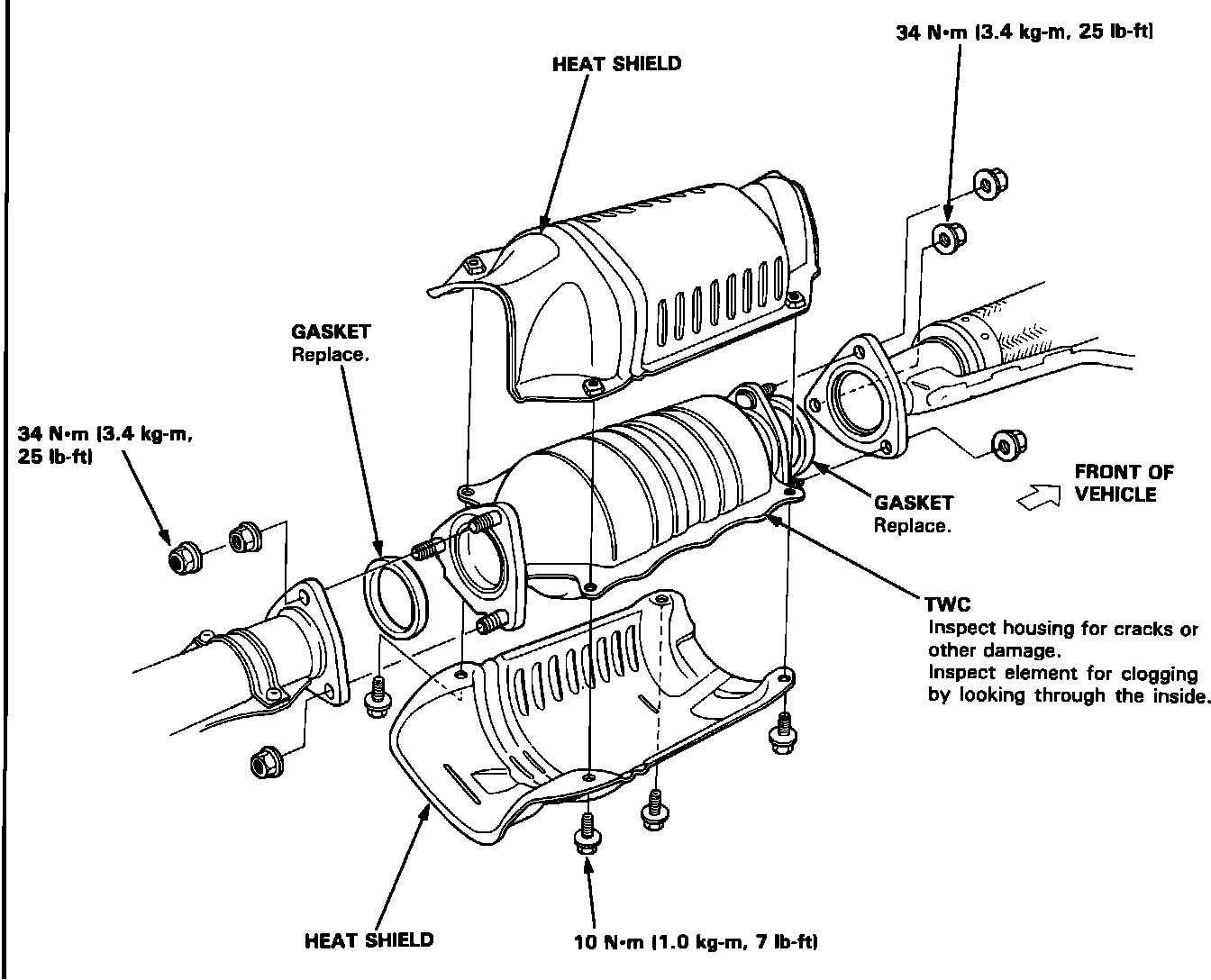

Exploded View Catalytic Converter:

CAUTION! Before checking Catalytic Converter for damage make sure the housing is cool.


If excessive exhaust system back-pressure is suspected, remove the TWC from the car and make a visual check for plugging, melting or cracking of the catalyst. Replace the TWC if any of the visible area is damaged or plugged.
