Fuel Injector: Testing and Inspection

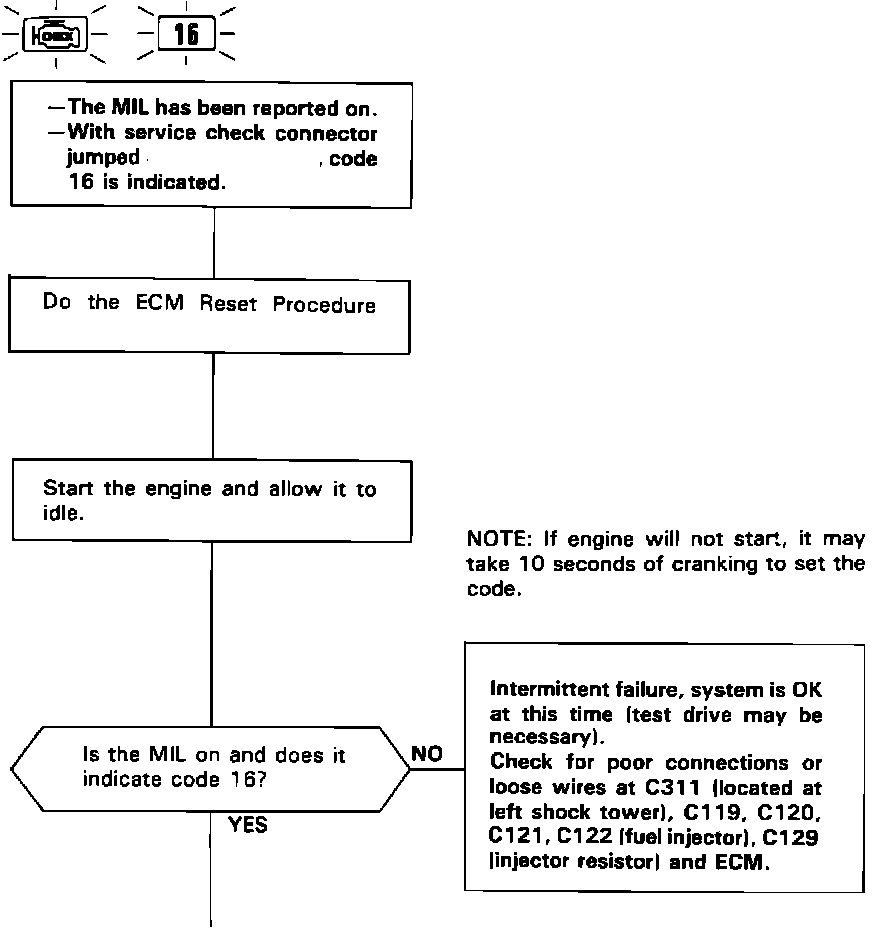

Code 16 is indicated, follow flow chart for diagnosis of fuel injectors and wiring harness.

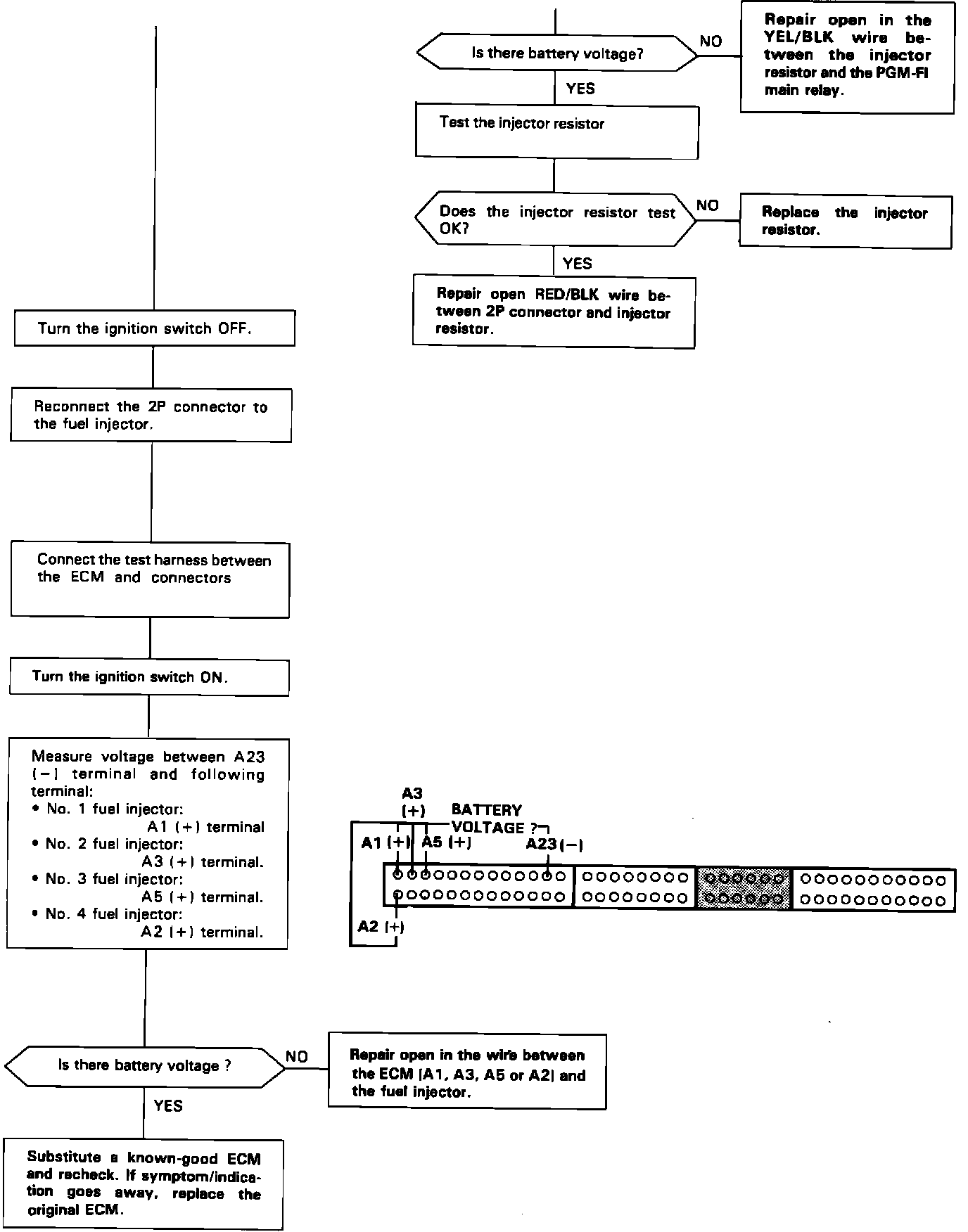

Troubleshooting Fuel Supply System:
1 of 3
Troubleshooting Fuel Supply System:
2 of 3
Troubleshooting Fuel Supply System:
3 of 3
