Electrical Diagrams

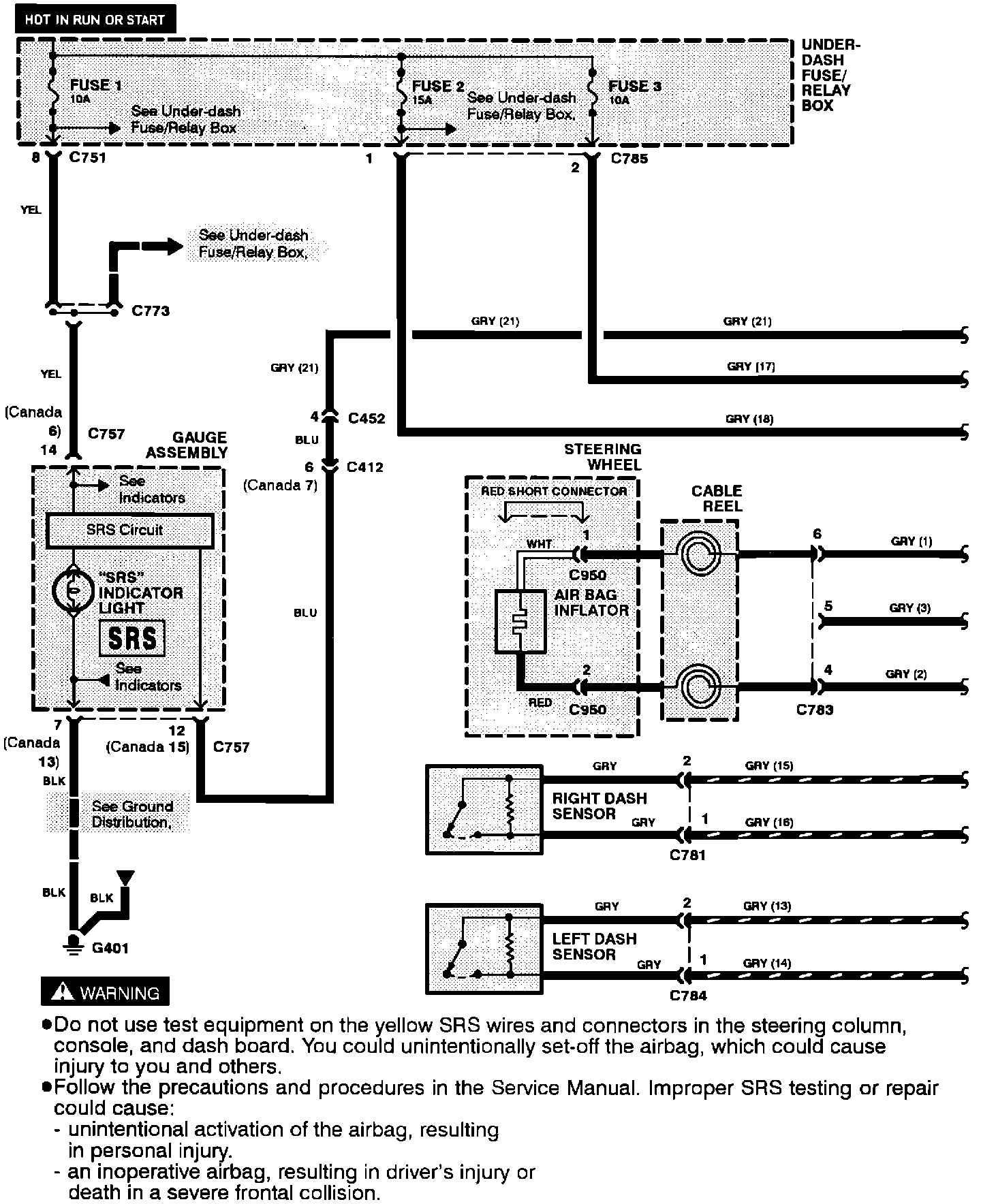

SRS Circuit Diagram (Without Front Passenger Airbag):

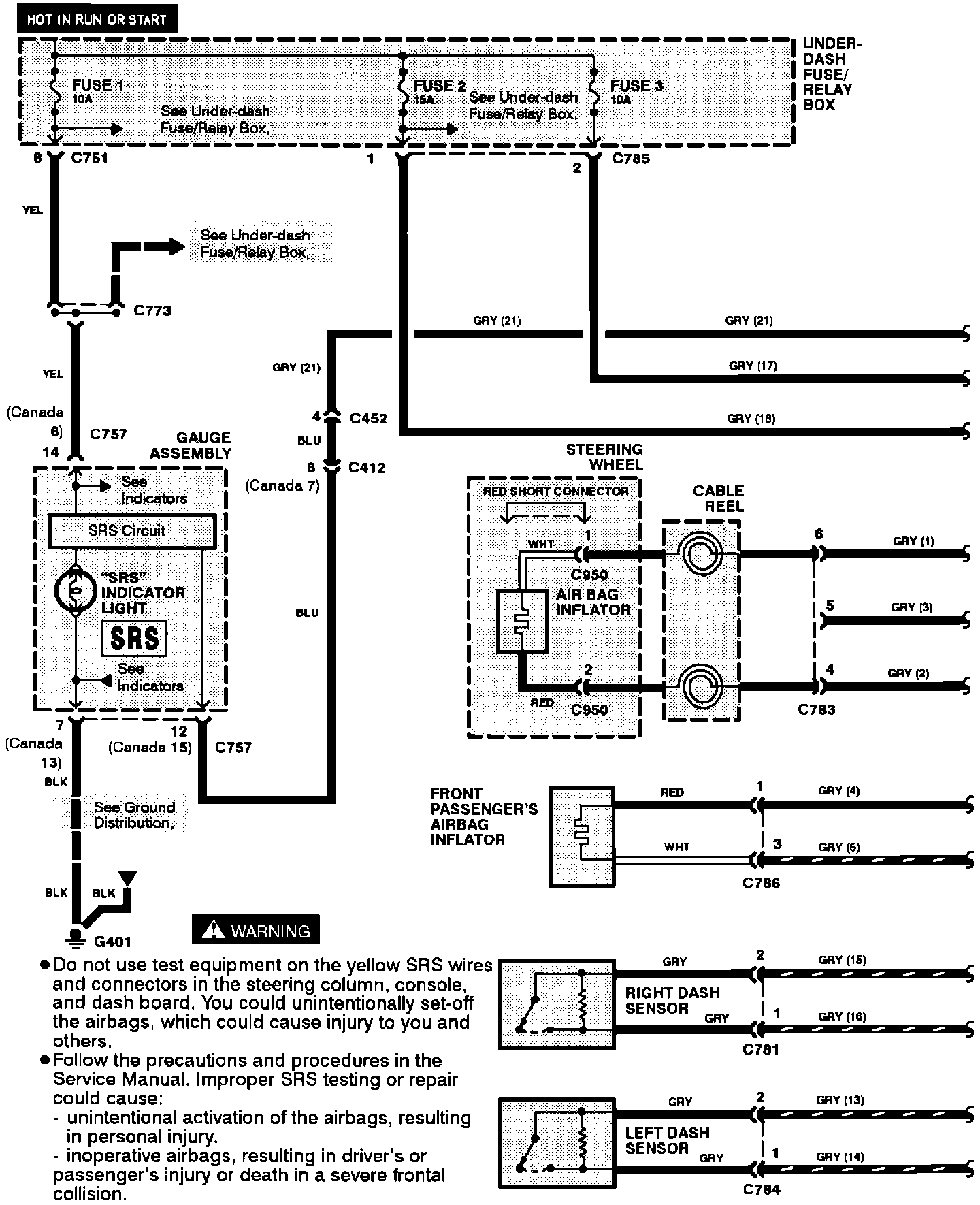

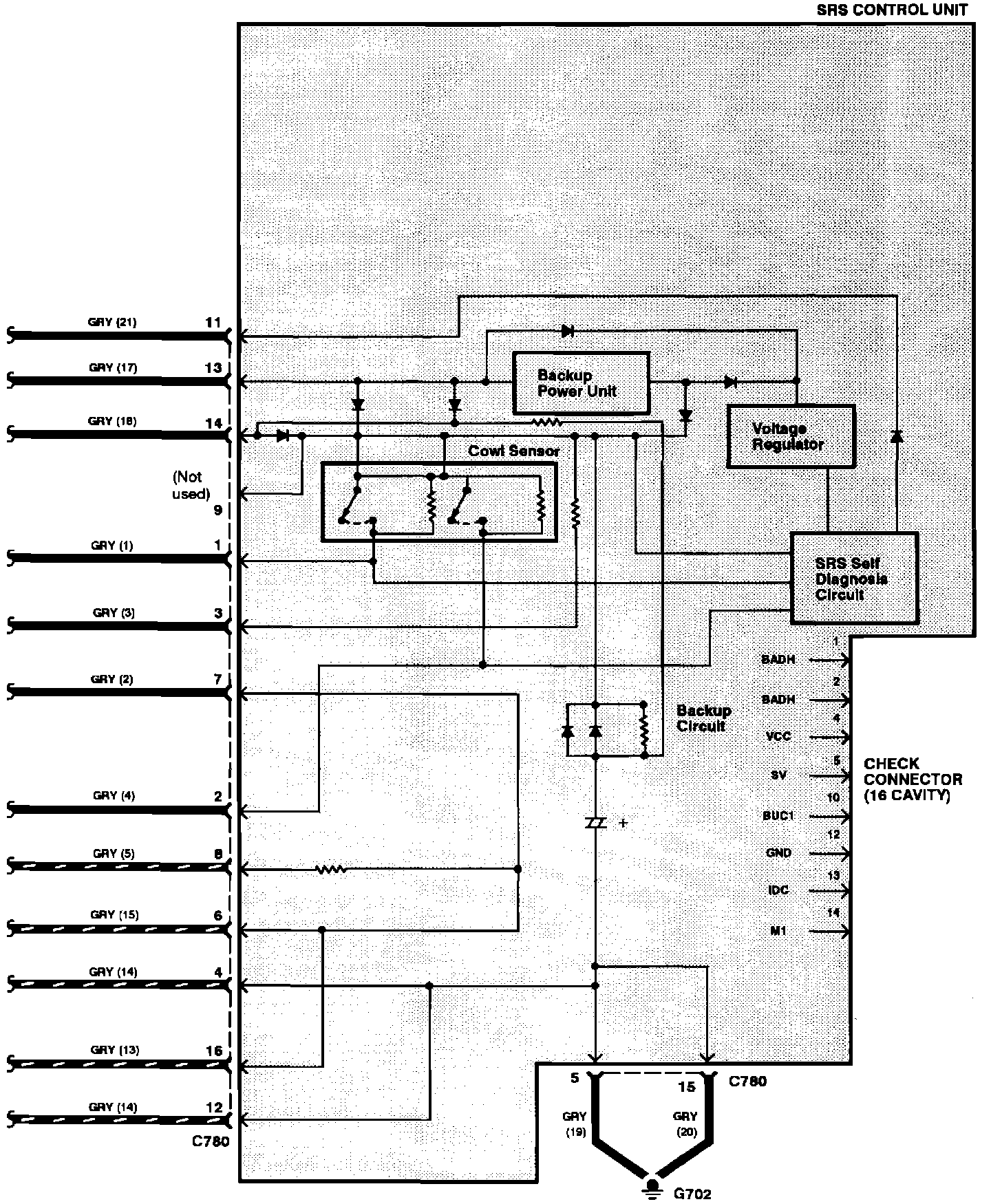

SRS Circuit Diagram (With Front Passenger Airbag):

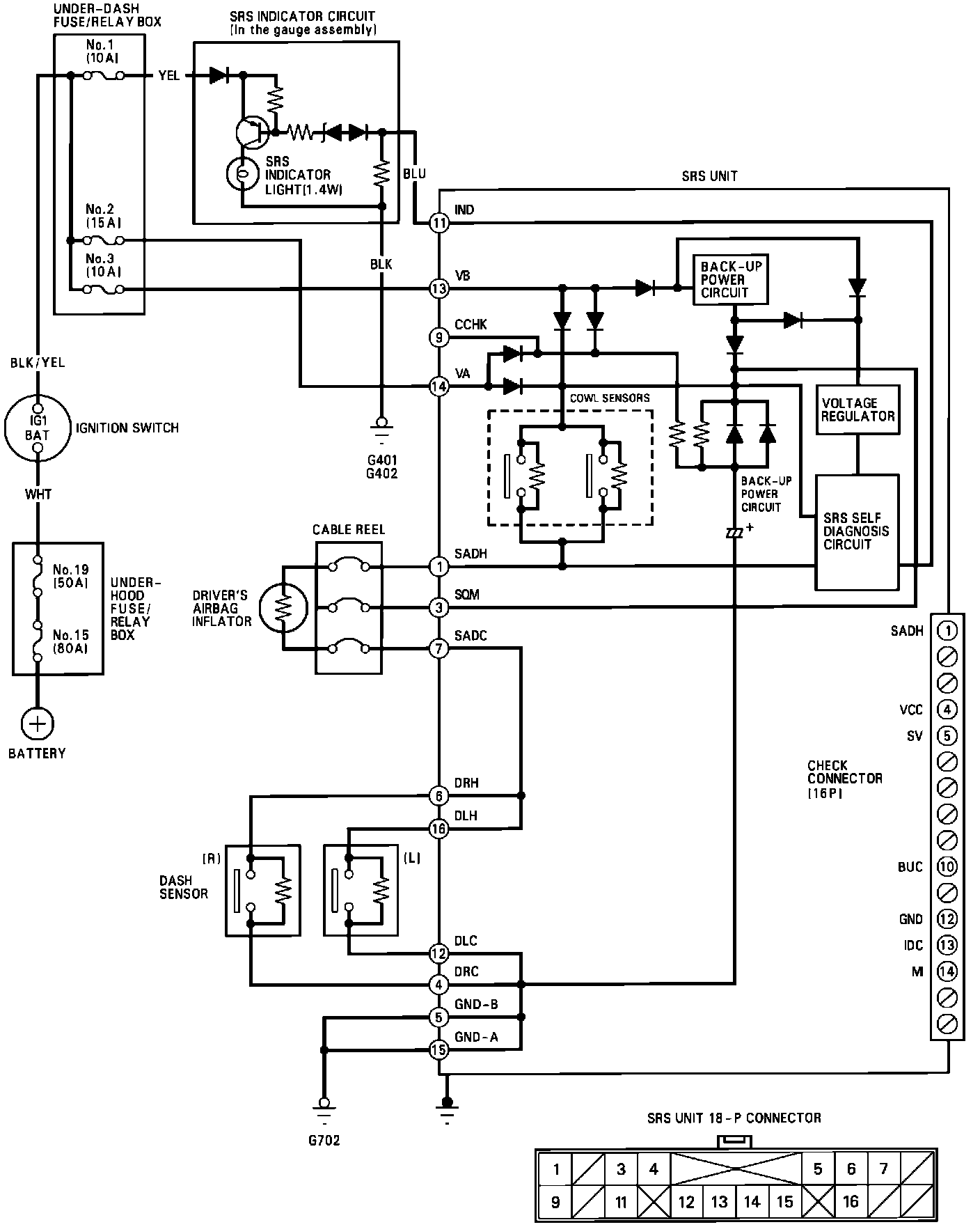

Supplemental Restraint System (SRS) (Driver's Side):



Supplemental Restraint System (SRS) (Driver's Side):

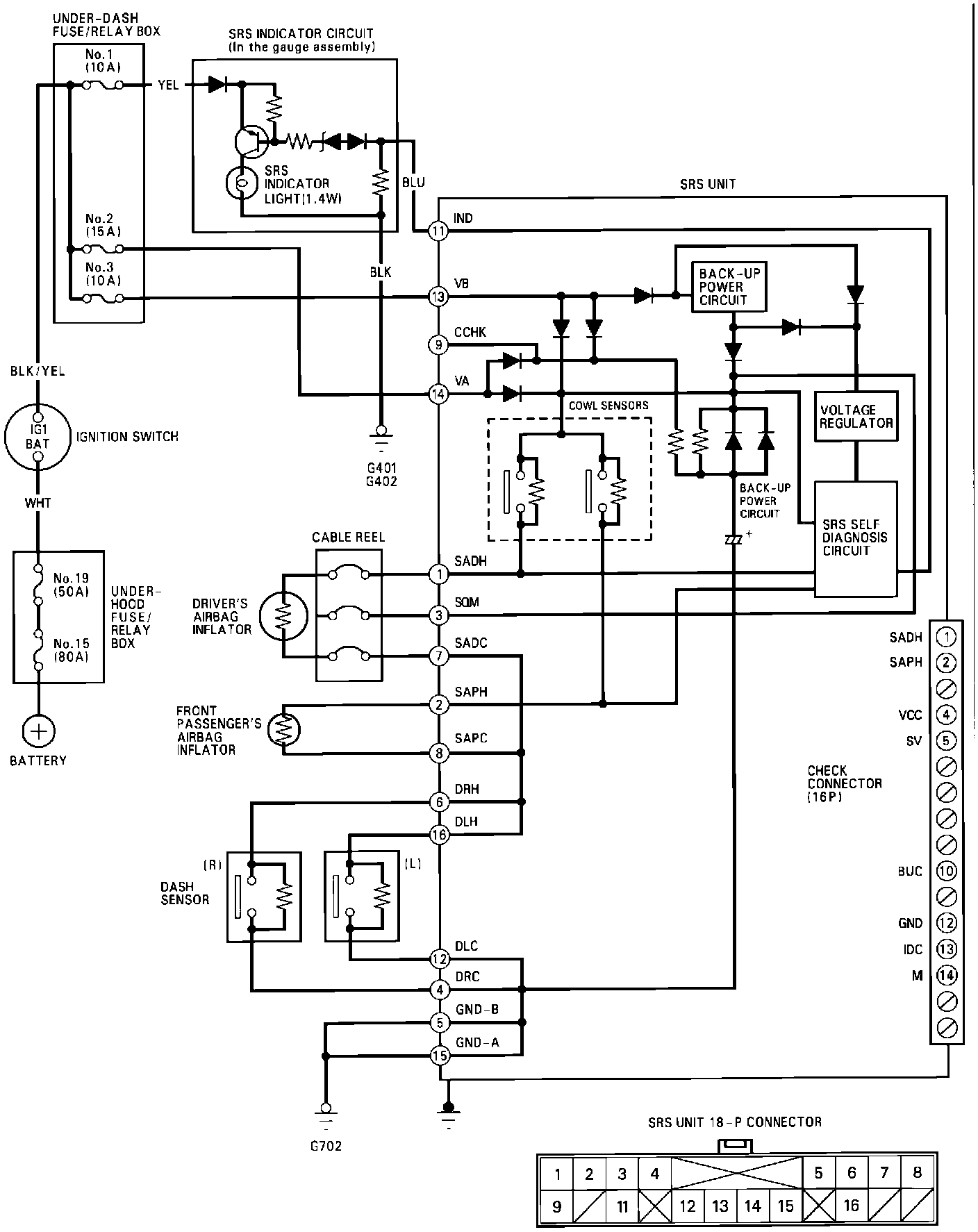

Supplemental Restraint System (SRS) (Driver's And Passenger's Airbag):



Supplemental Restraint System (SRS) (Driver's And Passenger's Airbag):
