Oil Pan, Engine

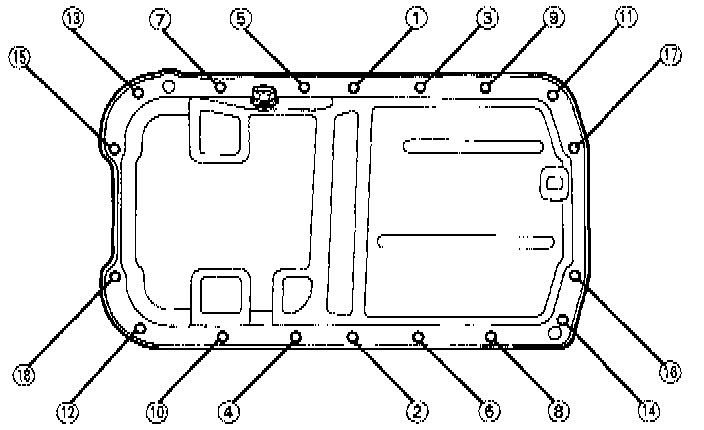

TORQUE AND SEQUENCEOil Pan Tightening Sequence:
Tighten the nuts and bolts in two steps and torque them in a criss-cross pattern, as shown.
Torque: 14 Nm (1.4 kg-m, 10 ft lb)
Tighten the nuts and bolts in two steps and torque them in a criss-cross pattern, as shown.
Torque: 14 Nm (1.4 kg-m, 10 ft lb)
