Starting System: Testing and Inspection

NOTE: The air temperature must be between 59 and 100°F (15 and 38°C) before testing.

Recommended Procedure:

^ Connect and operate a starter system tester in accordance with manufacturer's instructions.
^ Test and troubleshoot as described.

Alternate Procedure:

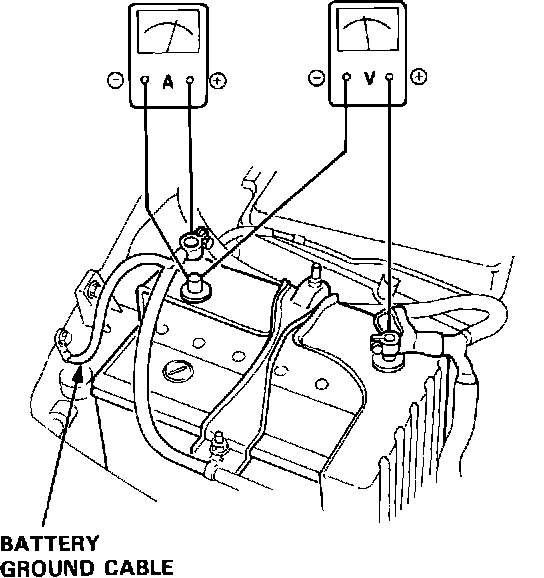

Voltmeter And Ammeter Hook-up:

^ Use the following equipment:
- Ammeter, 0-400 A
- Voltmeter, 0-20 V (accurate within 0.1 volt)
- Tachometer, 0-1200 rpm
^ Hook up voltmeter and ammeter as shown.

NOTE: Check the No. 9 (7.5 A) fuse in the under-dash fuse/relay box. Before testing (M/T only).

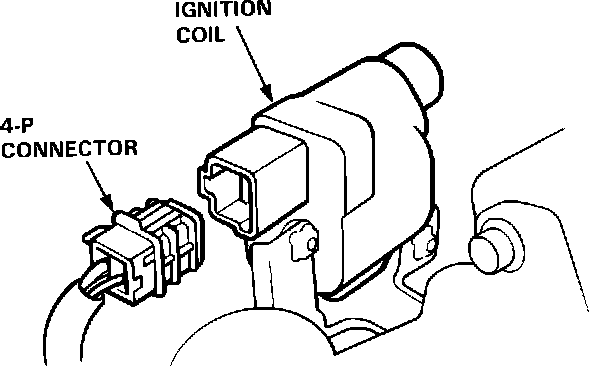

Disconnecting 4-P Connector At Ignition Coil:

1. Disconnect the 4-P connector (ignition coil primary lead) from the ignition coil.
2. Check the starter engagement:
^ Press the clutch pedal all the way (M/T only), and turn the ignition switch to "Start." The starter should crank the engine.

NOTE: On cars equipped with manual transmission, the engine will not crank unless the clutch pedal is fully depressed.

^ If the starter does not crank the engine, check the battery, battery positive cable, ground cable and the wire connections for looseness or corrosion.

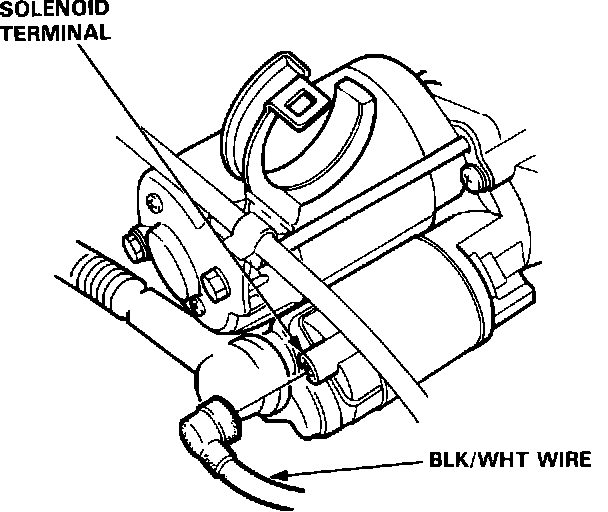

Disconnecting BLK/WHT Wire At Starter:

3. Test again. If the starter still does not crank the engine, bypass the ignition switch circuit as follows.
^ Unplug the connector (BLK/WHT wire) from the starter.
^ Connect a jumper wire from the battery positive (+) terminal to the solenoid terminal. The starter should crank the engine.
^ If the starter still does not crank the engine, remove the starter and diagnose its internal problems.
^ If the starter cranks the engine, check for an open in the BLK/WHT wire circuit between the starter and ignition switch, and connectors. Check the ignition switch.
^ On cars with automatic transmission, check the A / T gear position switch (neutral position switch) and connector.
^ On cars with manual transmission, check the starter relay, clutch interlock switch and connectors.

4. Check for wear or damage:
^ The starter should crank the engine smoothly and steadily.
^ If the starter engages, but cranks the engine erratically, remove the starter motor. Inspect the starter, drive gear and flywheel ring gear for damage.
^ Check the drive gear overrunning clutch for binding or slipping when the armature is rotated with the drive gear held. Replace the gears if damaged.

5. Check cranking voltage and current draw: Voltage should be no less than 8.5 volts. Current should be no greater than 350 amperes.
If voltage is too low, or current draw too high, check for:

^ Low battery.
^ Open circuit in starter armature commutator segments.
^ Starter armature dragging.
^ Shorted armature winding.
^ Excessive drag in engine.

6. Check cranking rpm:

^ Engine speed during cranking should be above 100 rpm.
^ Loose battery or starter terminals.
^ Excessively worn starter brushes.
^ Open circuit in commutator segments.
^ Dirty or damaged helical spline or drive gear.
^ Defective drive gear overrunning clutch.

7. Check the starter disengagement:

^ Press the clutch pedal all the way (M/T only), turn the ignition switch to "Start" and release to "Run". The starter drive gear should disengage from the flywheel ring gear.
^ If the drive gear hangs up on the flywheel ring gear, check:
^ Solenoid plunger and switch for malfunction.
^ Drive gear assembly for dirt or damaged overrunning clutch.
