Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Right Side Cover

Right Side Cover

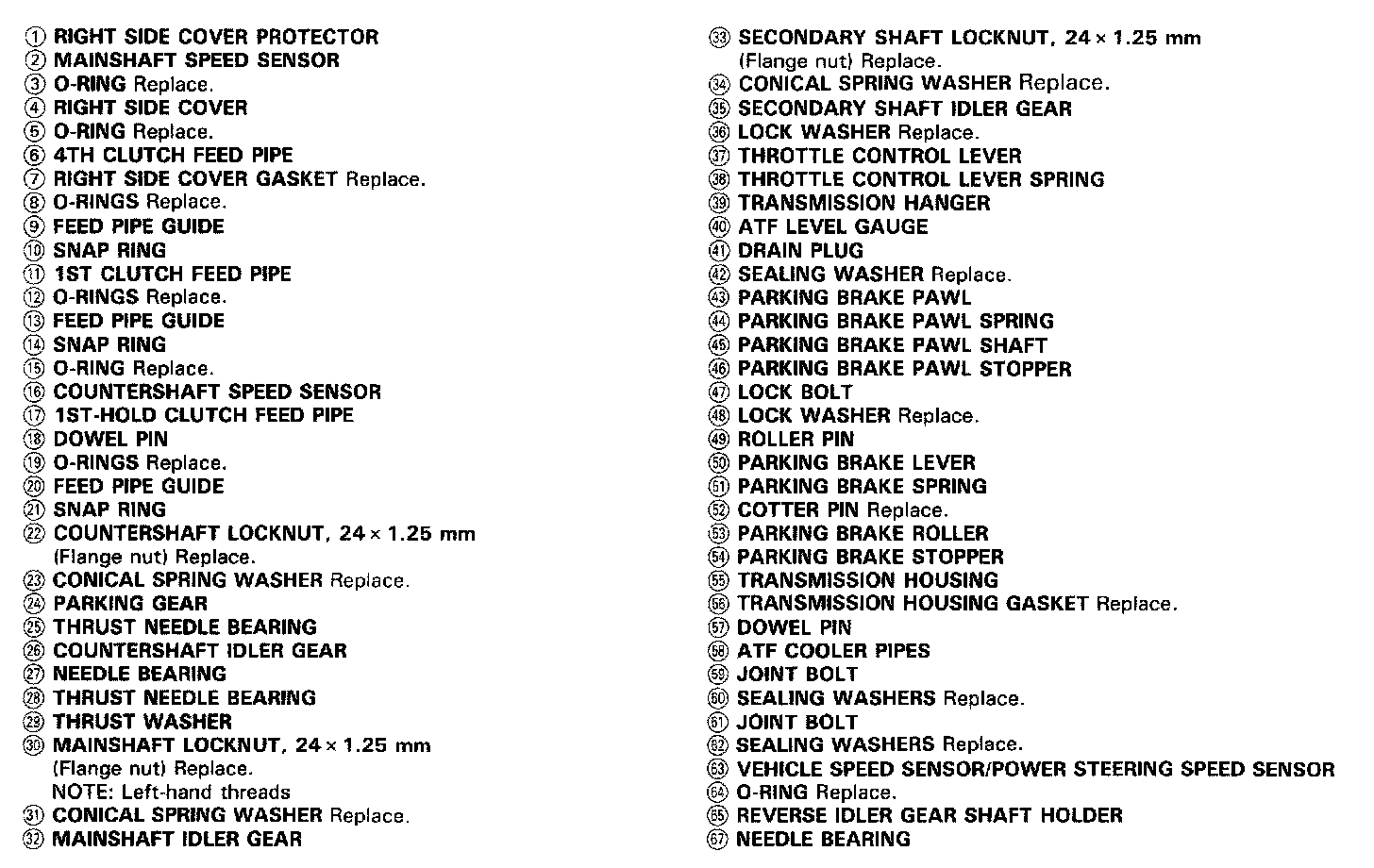

Part 1 Of 2:

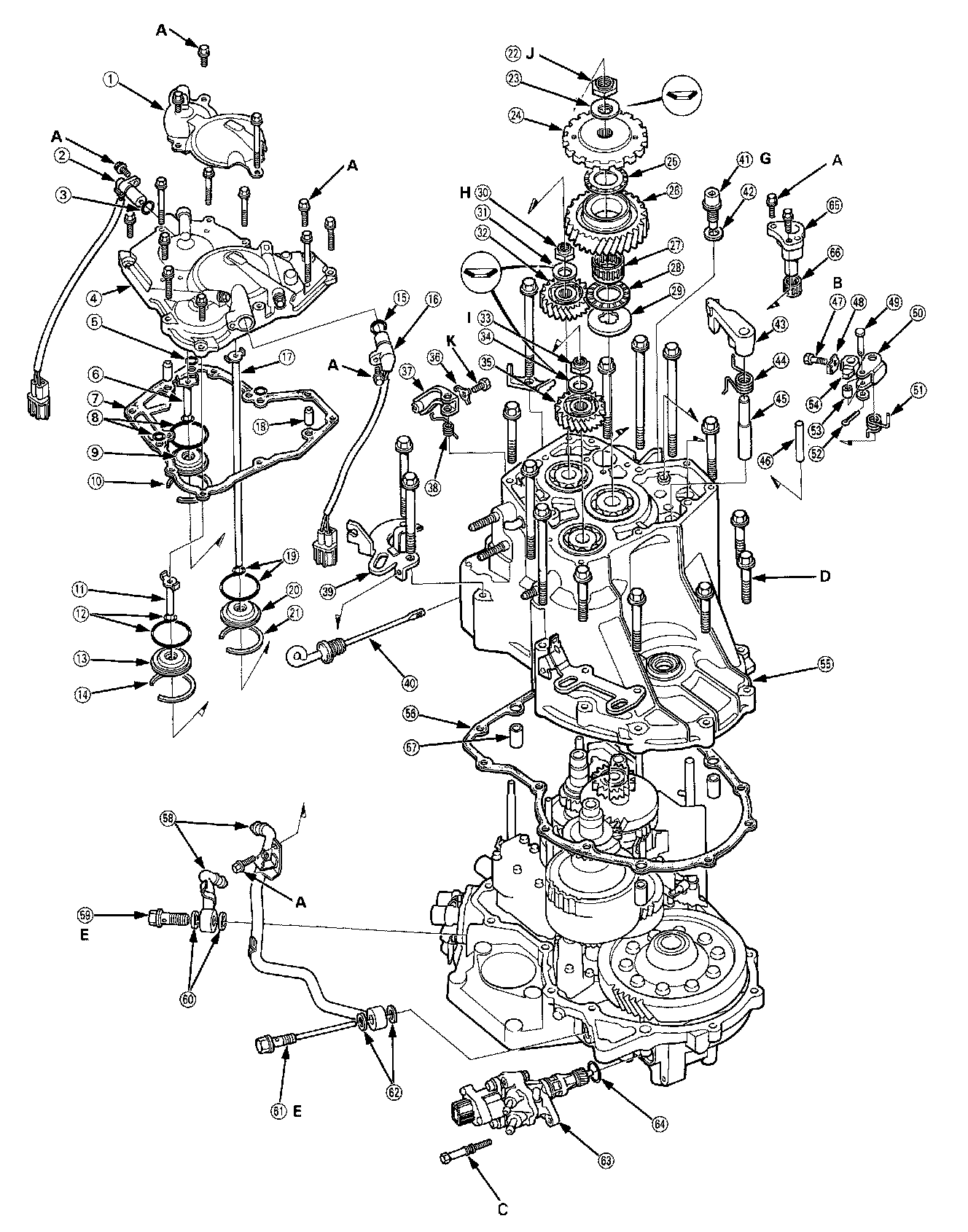

Part 2 Of 2:
