Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1993
>>
Civic L4-1493cc 1.5L SOHC (16 valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
>>
Hatchback
Hatchback

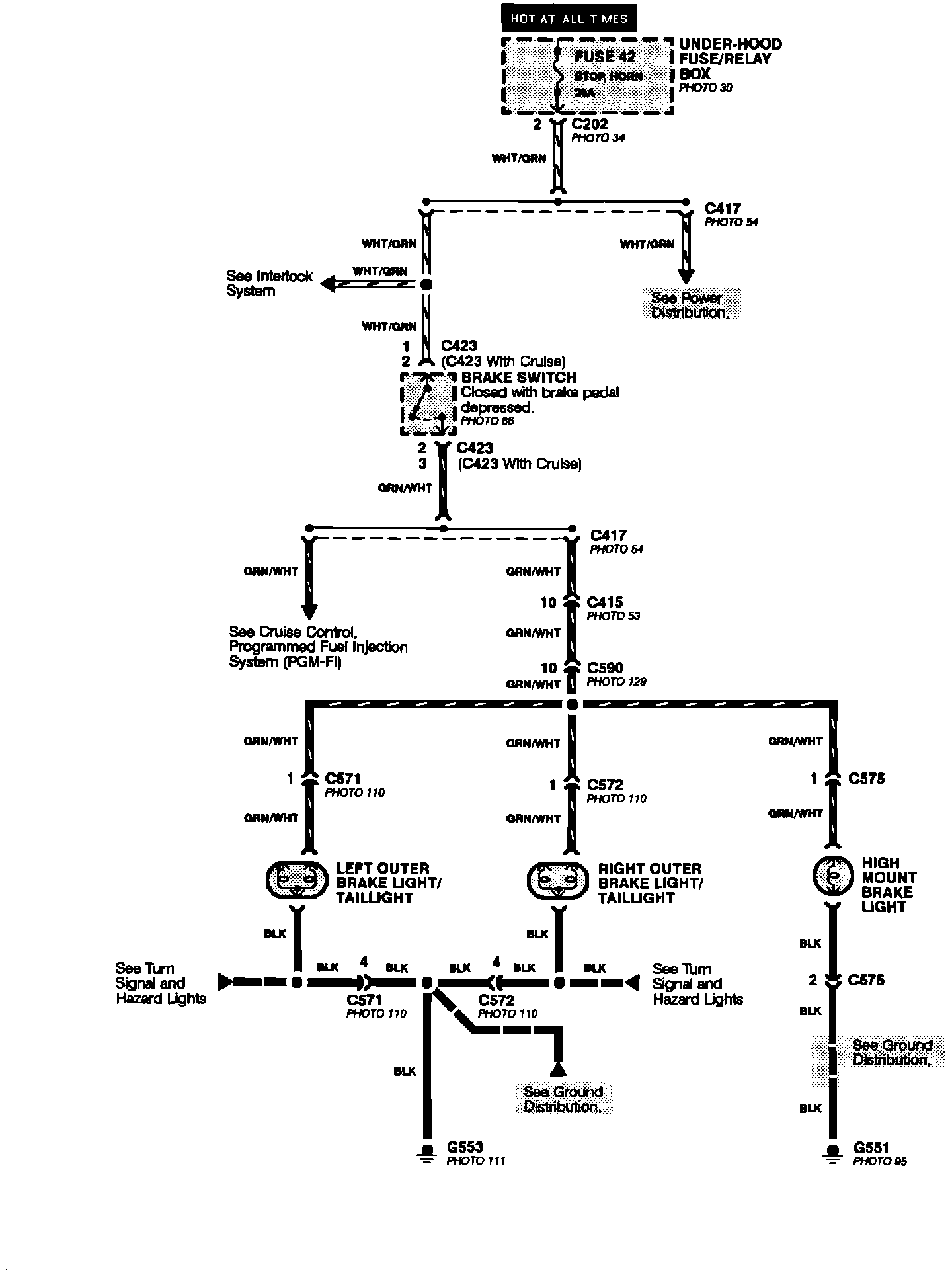

Exterior Lights: Brake (Hatchback):
