Civic L4-1493cc 1.5L SOHC (16 valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wire Harness Routing
>>
Engine
Engine

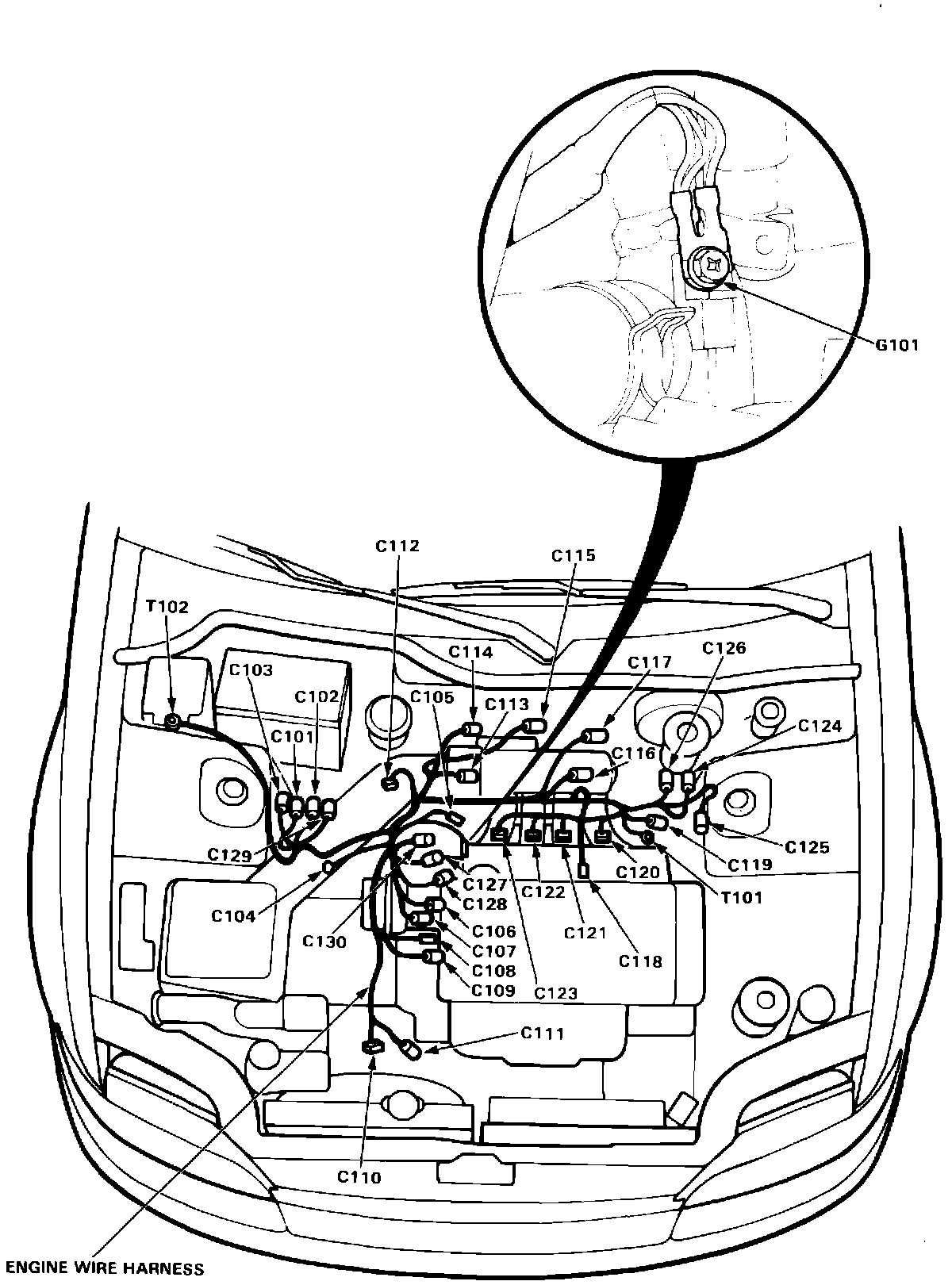

Connector Locations And Wire Harness Routing: Engine Wire Harness:
Connector Locations And Wire Harness Routing: Engine Compartment Wire Harness:
