Tailgate (Hatchback), Trunk Lid (Sedan) Wire Harness
Tailgate (Hatchback), Trunk Lid (Sedan) Wire Harness

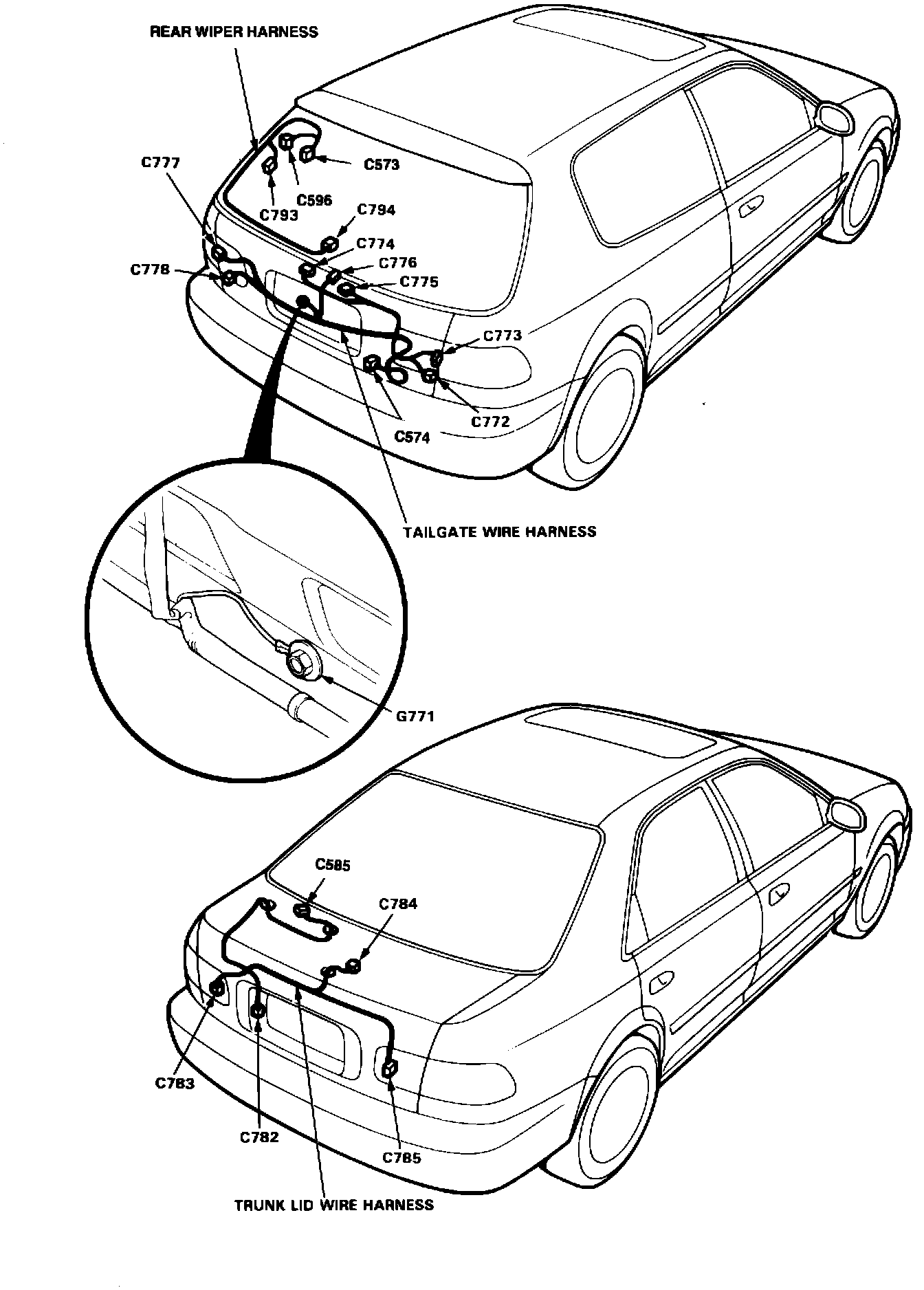

Connector Locations And Wire Harness Routing: Tailgate (Hatchback), Trunk Lid (Sedan) Wire Harness:
