Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1993
>>
Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Identification
>>
C714 Thru C914
C714 Thru C914

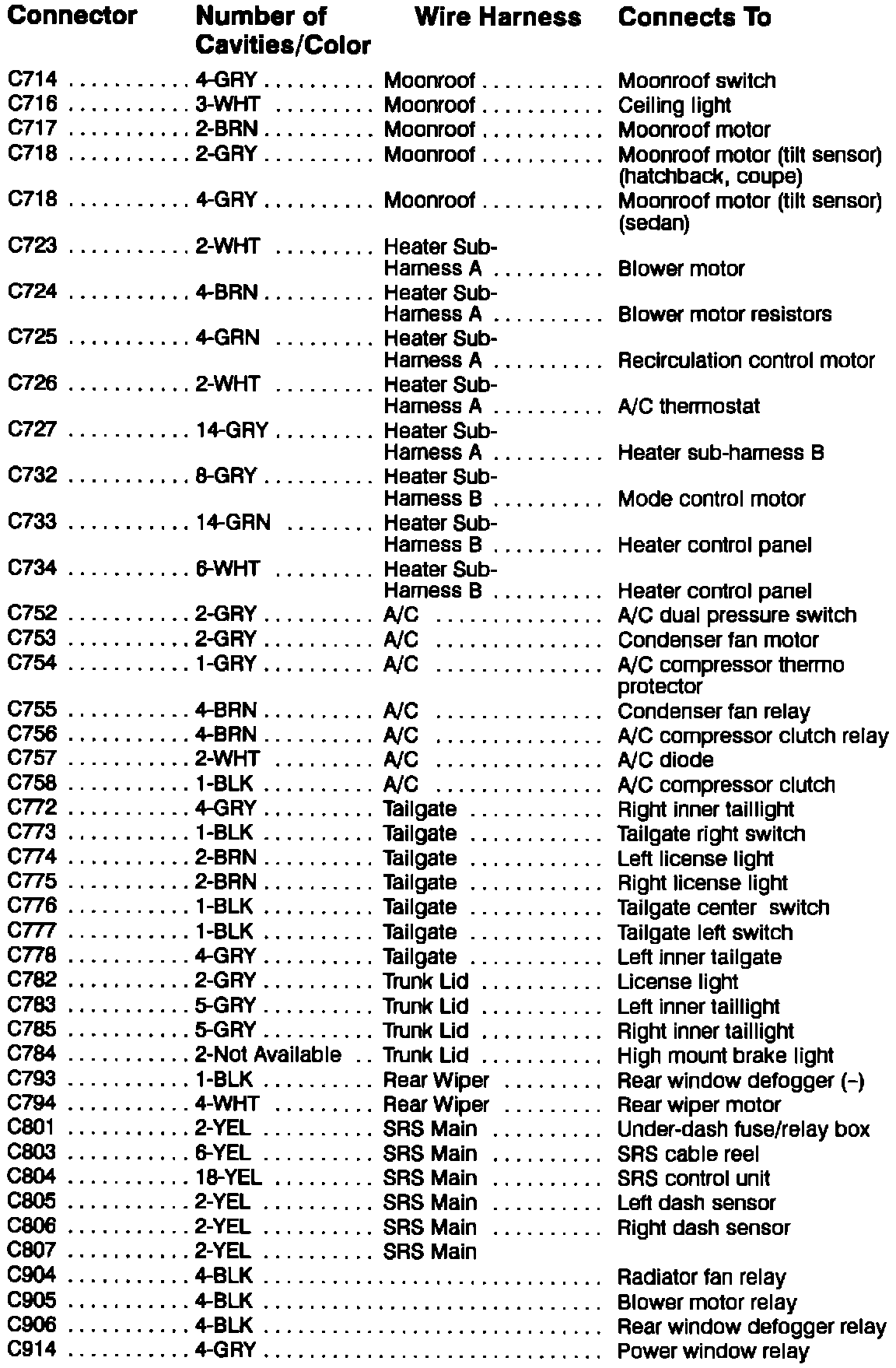

Connector Identification Index: C714 Thru C914:
