Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Schematic and Routing
Schematic and Routing
Schematic View Vacuum Hose Routing:
COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC
Vacuum Hose Locations:

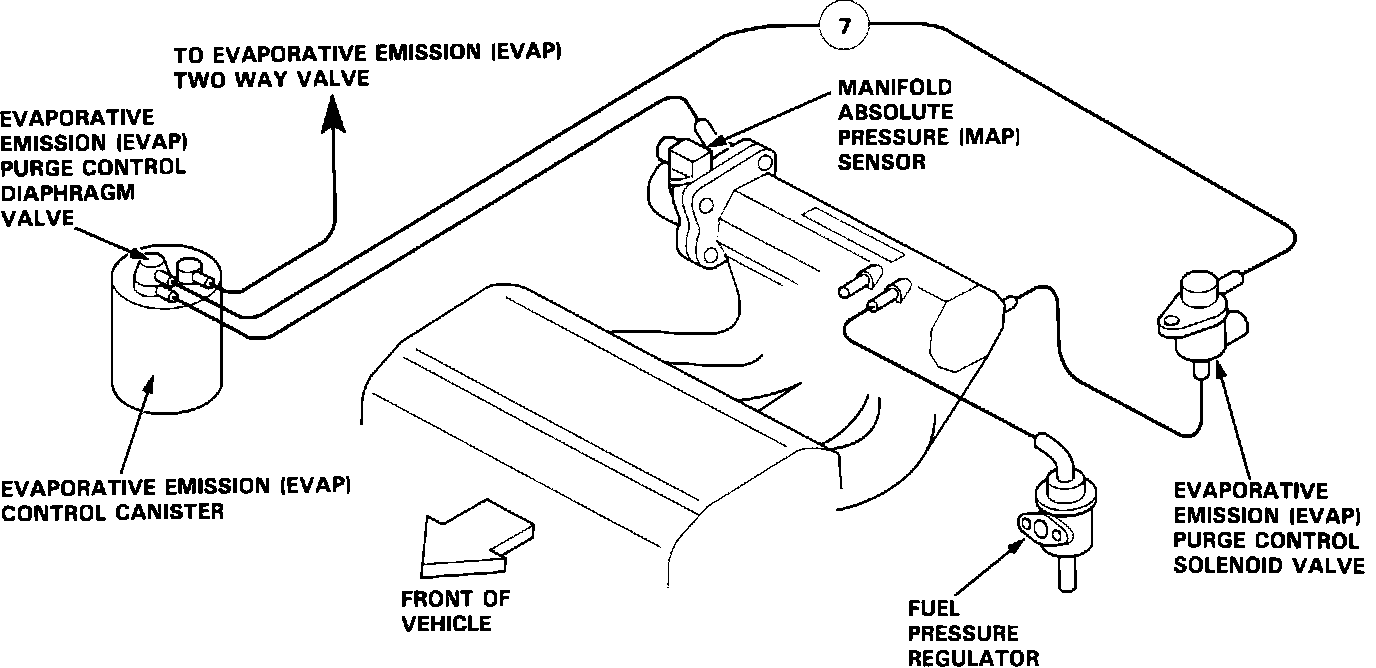

ENGINE VACUUM HOSE ROUTING
