Seats - Rear Seat Back Won't Unlatch

Bulletin No.
93-014

Model
1992-93
CIVIC

Applicable To
See VEHICLES AFFECTED

File Under
BODY

Rear Seat-back Won't Unlatch

SYMPTOM

The rear seat-back cannot be unlatched with the key or by pulling the loop in the trunk.

PROBABLE CAUSE

The release lever on the latch assembly is bent.

VEHICLES AFFECTED

1992 Civic 4-door: All
1993 Civic 4-door:
Japan-built DX/LX:
thru VIN JHMEG8...PS052997
Japan-built EX:
thru VIN JHMEH9...PS010646
Ohio-built DX/LX: thru VIN 1HGEG8...PL029609
1993 Civic Coupe:
Ohio-built: thru VIN 1HGEJ....PL027112
Canada-built: thru VIN 2HGEJ2...PH509675

CORRECTIVE ACTION

Replace the rear seat latch assembly with the new assembly listed under PARTS INFORMATION.

1. Unlatch the rear seat-back and tilt it forward. The release lever on the latch may be bent downward, preventing the seat from unlatching. If so, push the lever upward while releasing the seat-back.

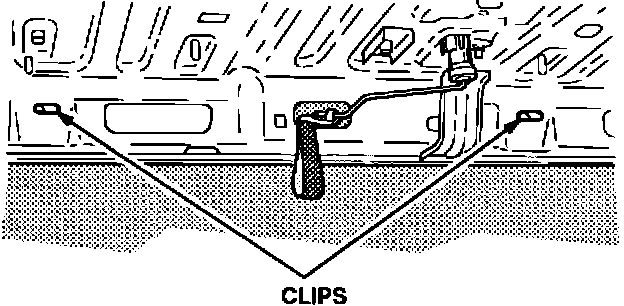

2. Remove the trim panel on the front of the rear shelf by squeezing the clips with a pair of pliers.

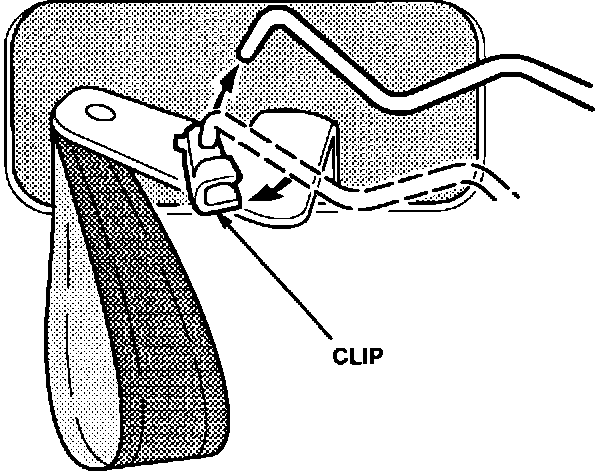

3. Unsnap the plastic clip and remove the lock rod from the latch assembly.

4. Remove the two bolts and the latch assembly.

5. Install the new latch assembly with the original bolts. Torque the bolts to 10 N-m (1.0 kg-m, 7.2 lb.ft.).

6. Reinstall the lock rod in the release lever.

7. Install the trim panel.

8. Check the lock cylinder and release loop for smooth operation.

NOTE:
Because the seat-back fits tightly against the side panels, it will not pop forward when it releases. You must rotate the key and hold it, or pull the loop and hold it, and move the seat-back away from the rear shelf.

PARTS INFORMATION

Rear Seat Latch Assembly
4-door: P/N 82220-SR4-013, H/C 4235529
Coupe: P/N 82220-SR8-A02, H/C 4207288

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 853110

Flat rate time: 0.3 hour

Failed part: P/N 82220-SR4-003
H/C 3895356

Defect code: 002

Contention code: B01
