Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

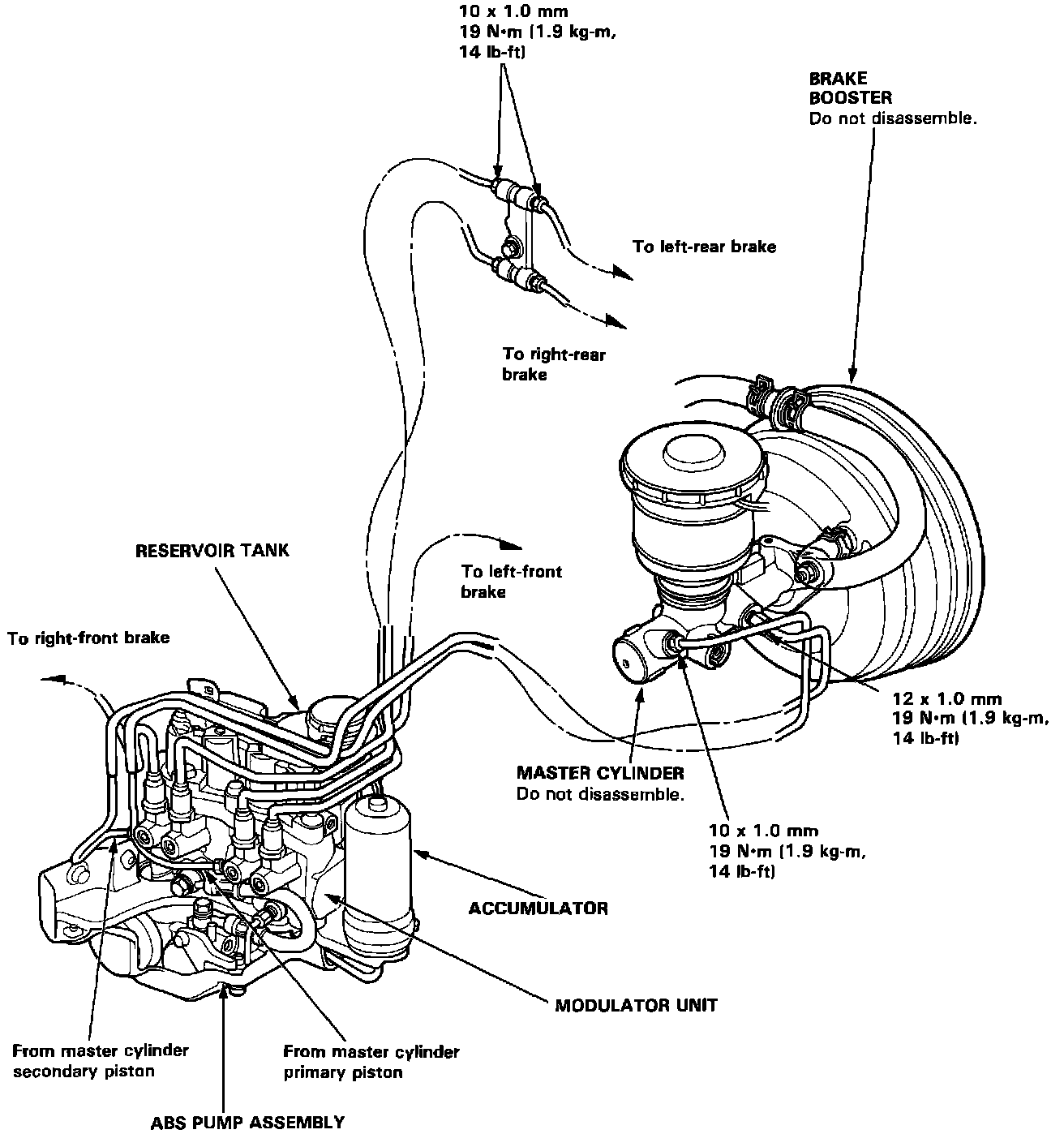

Hydraulic Connector Locations:
