Home >> Honda >> 1993 >> Del Sol L4-1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Identification >> C101 Thru C214

C101 Thru C214

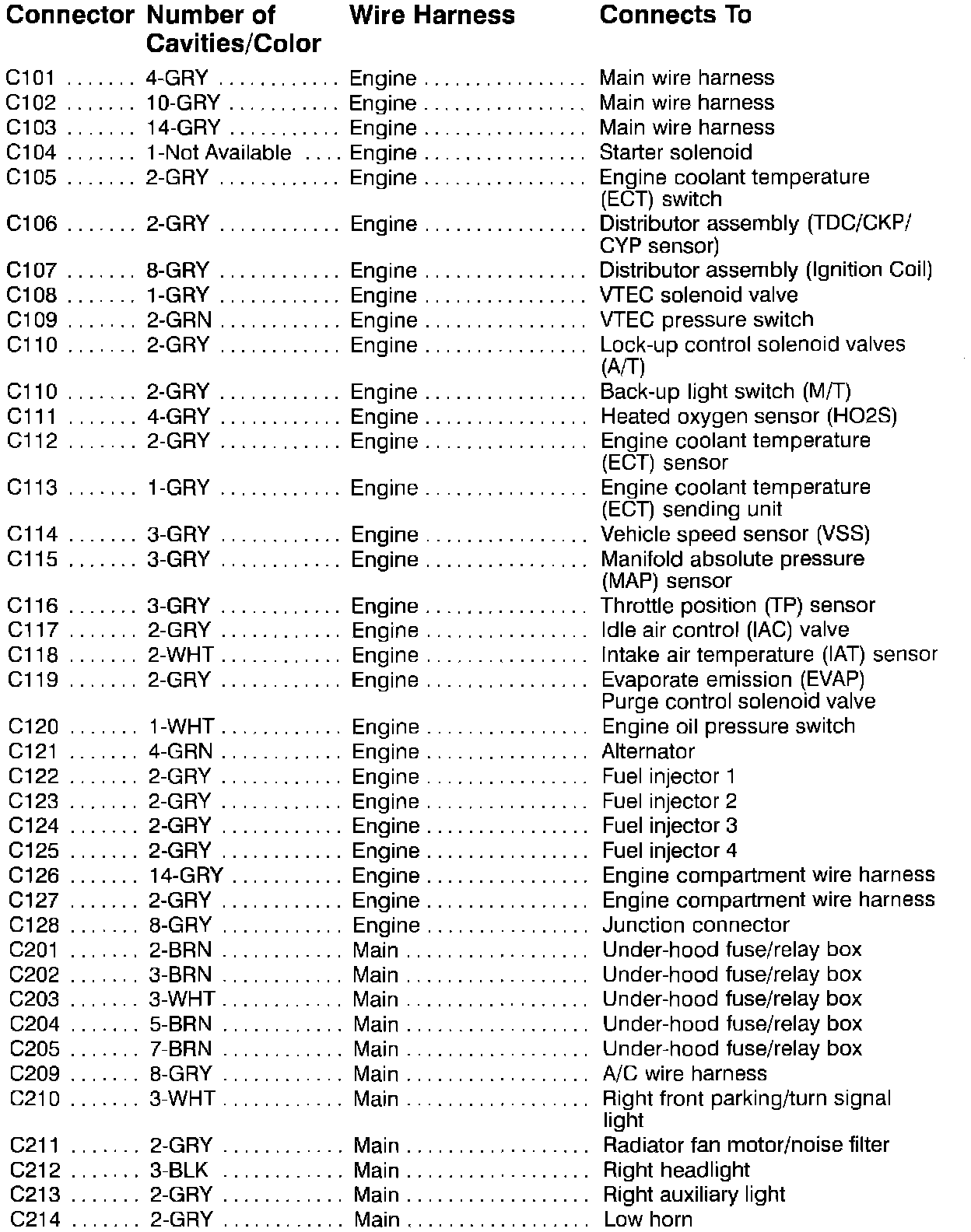

Connector Index:
