Diagrams
>>
Connector Views
>>
Connector Identification
>>
C215 Thru C425
C215 Thru C425

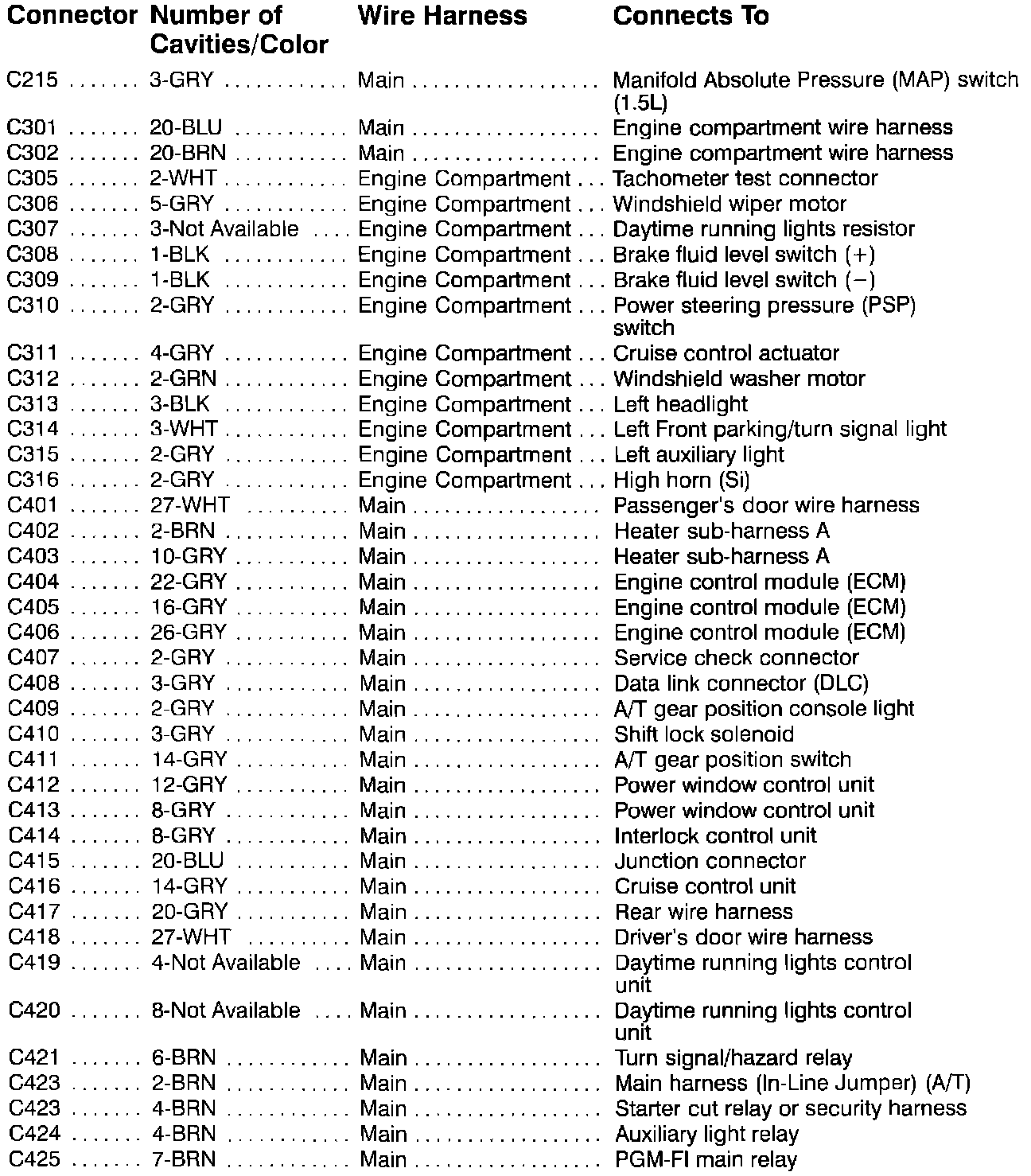

Connector Index:
