System Diagram
System Diagram

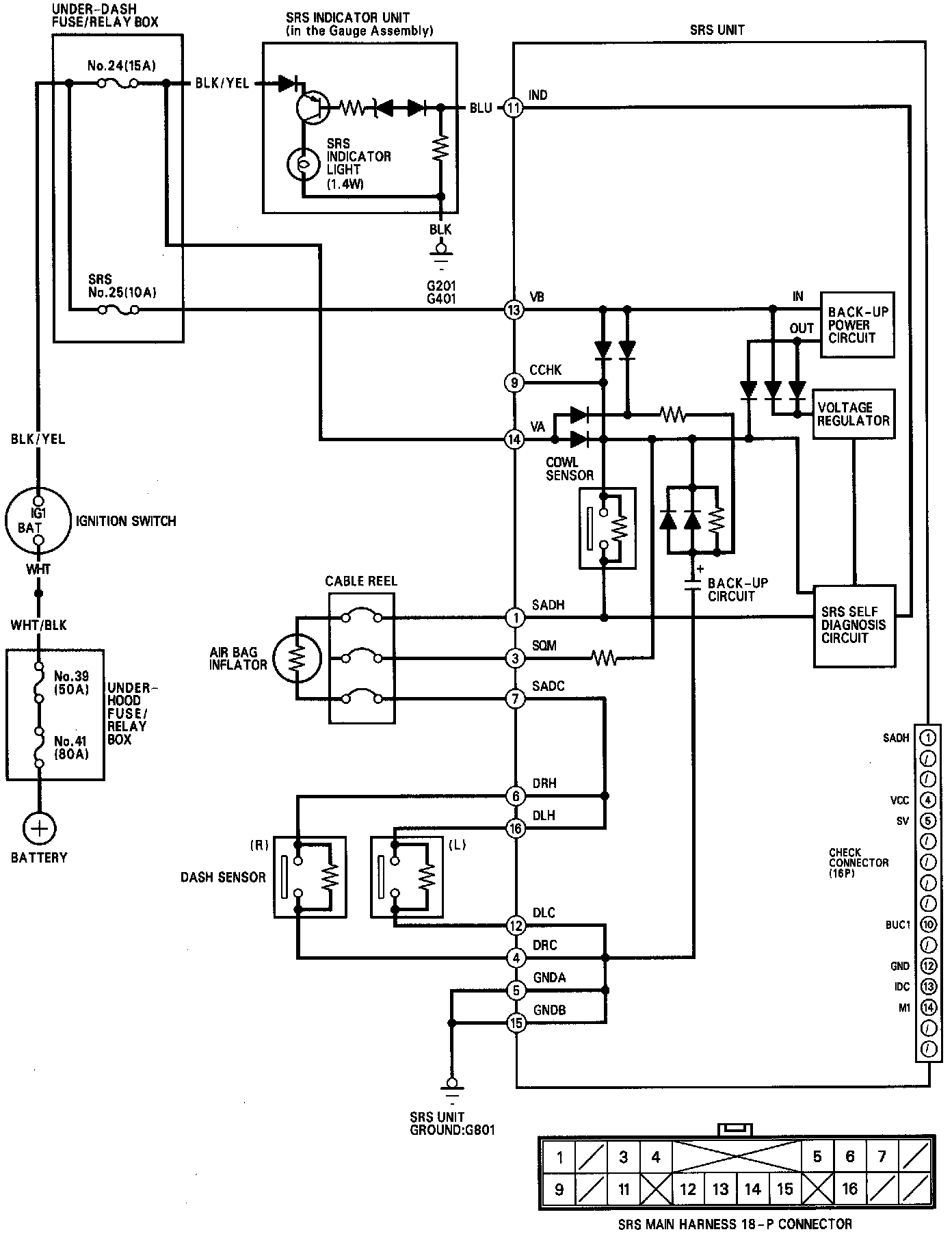

SRS Circuit Diagram:
Supplemental Restraint System (SRS) (Without SRS):
Horns: With SRS And Security System:
