Home >> Honda >> 1993 >> Del Sol L4-1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> 1 of 4

1 of 4

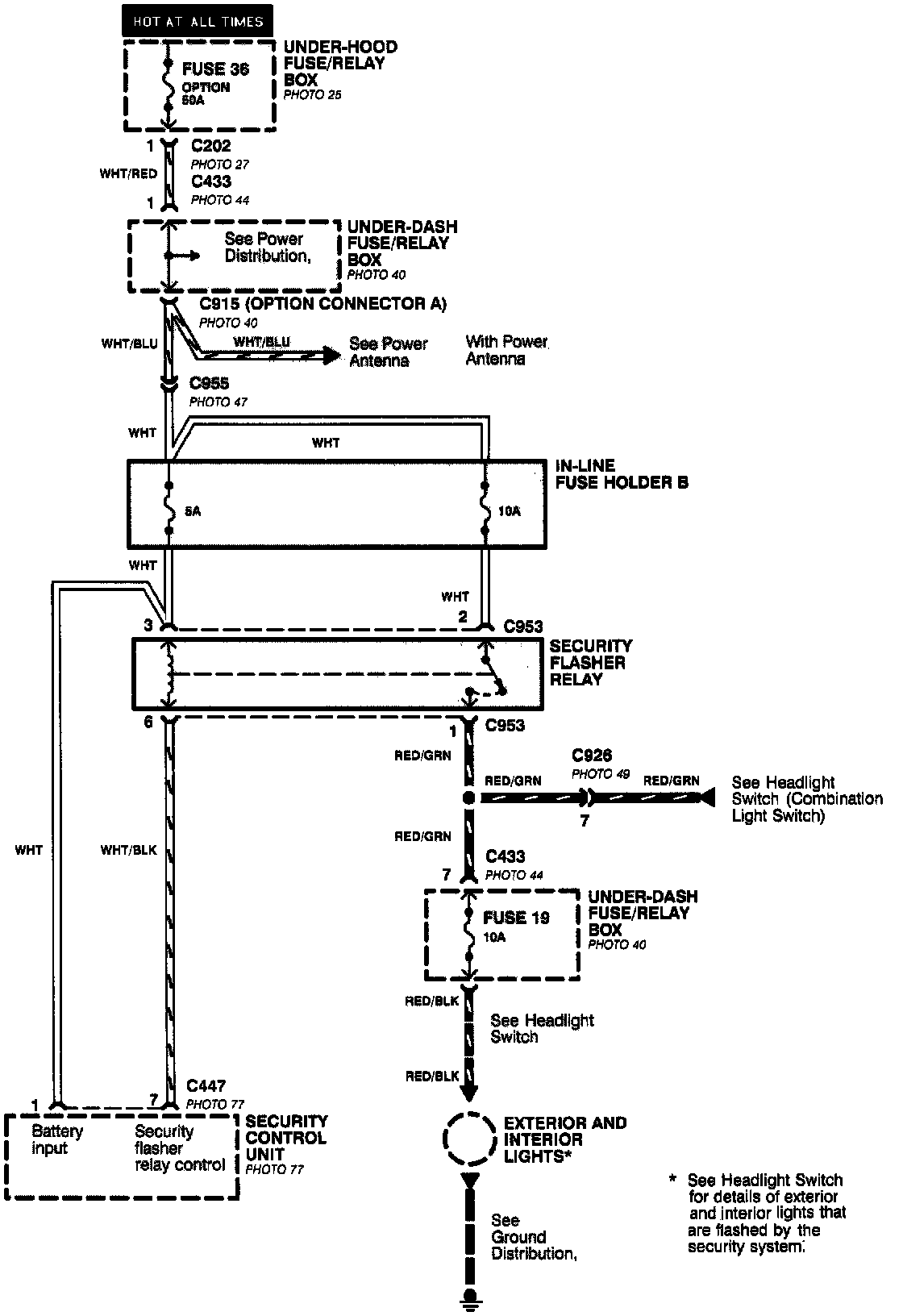

Security System: Power And Lights:
