Rear Window Defogger Sub-Harness, Heater Sub-Harness A and B
Rear Window Defogger Sub-Harness, Heater Sub-Harness A and B

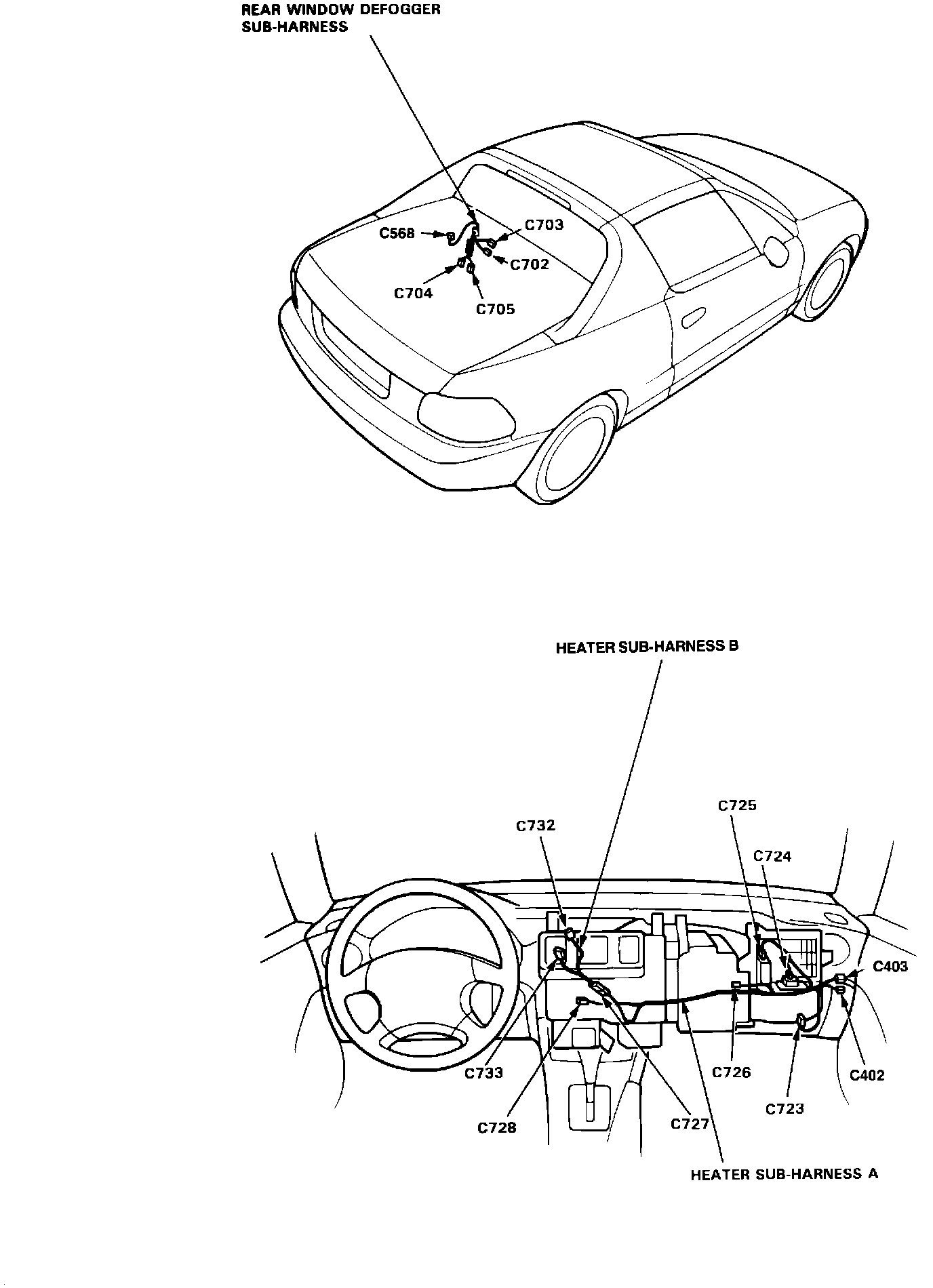

Connector Locations And Wire Harness Routing: Rear Window Defogger Sub-harness, Heater Sub-harness A And B:
