Torque Specifications

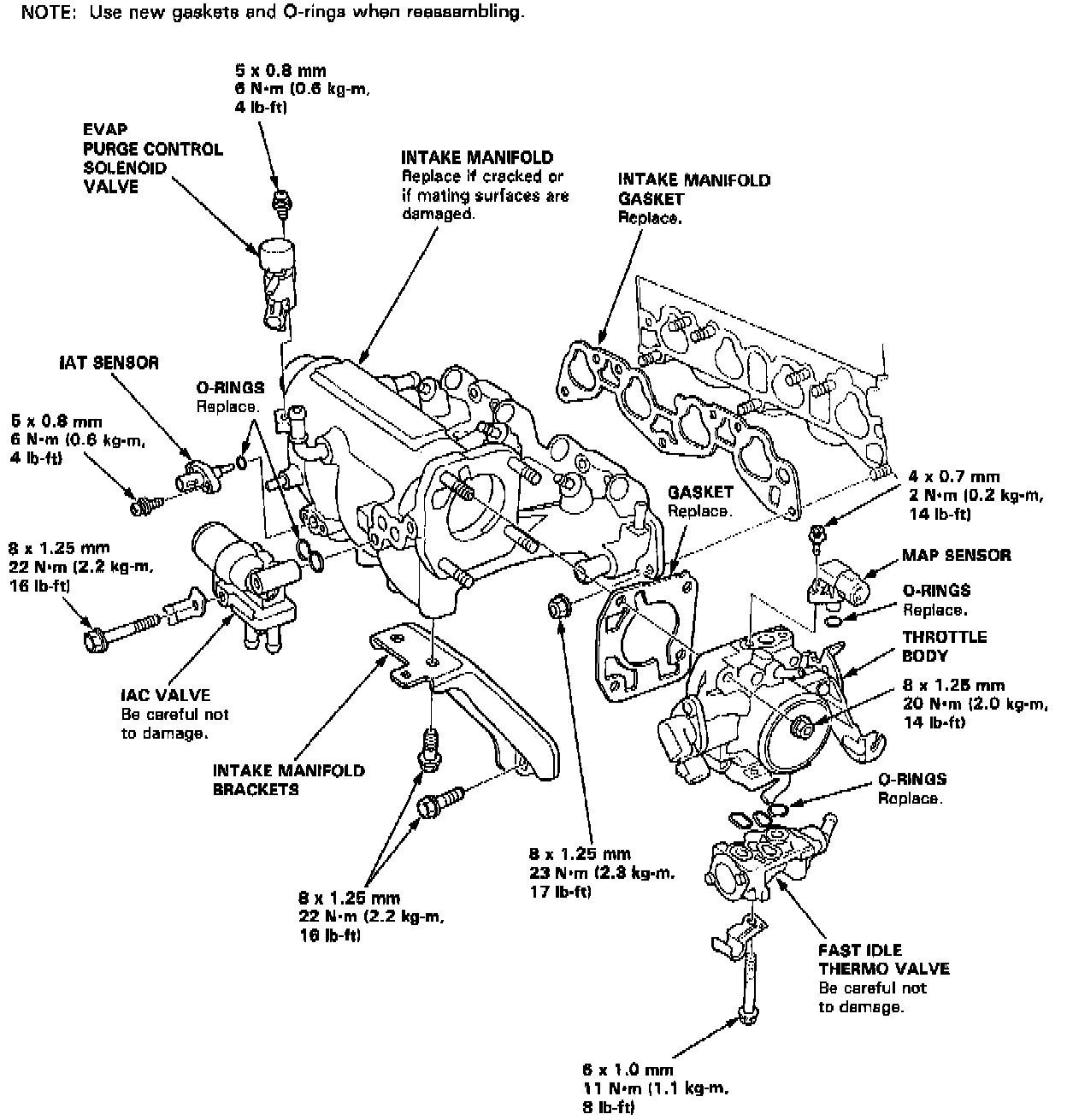

Intake:

Exhaust Manifold (D15B7):

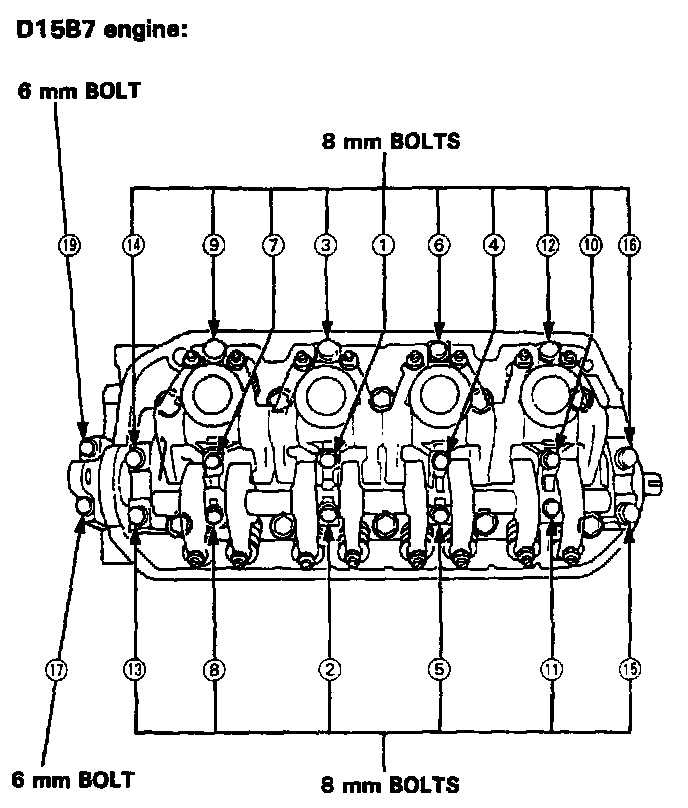

Head Bolt Loosening Sequence:

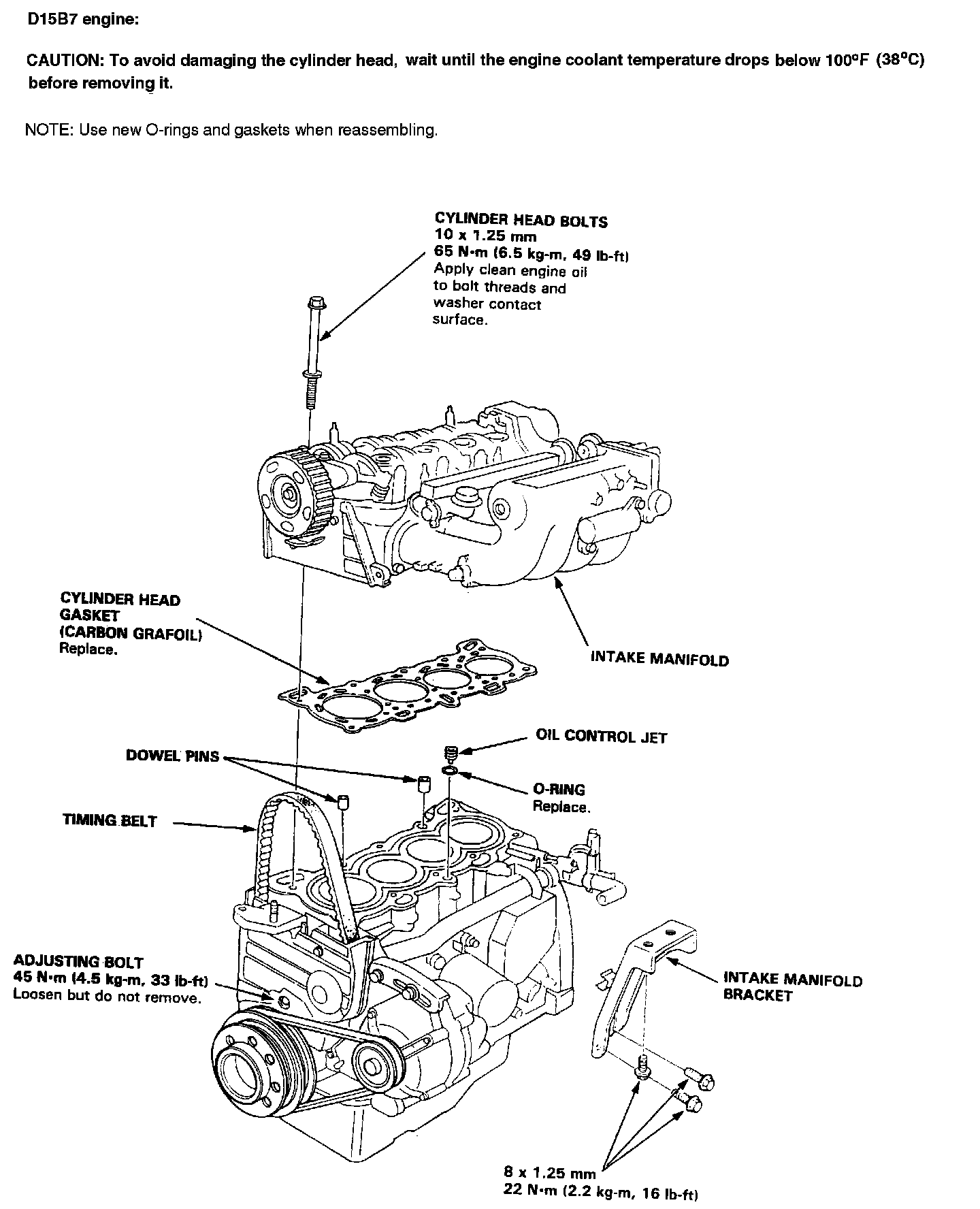

Head Bolt Torque Sequence:

Cylinder Head Torque has been revised as follows per TSB 97-047.

Step 1: Tighten all 10 bolts to 20 N.m (14 lb.ft.)
Step 2: Tighten all 10 bolts to 49 N.m (36 lb.ft.)
Step 3: Tighten all 10 bolts to 67 N.m (49 lb.ft.)
Step 4: Tighten bolts 1 and 2 to 67 N.m (49 lb.ft.)

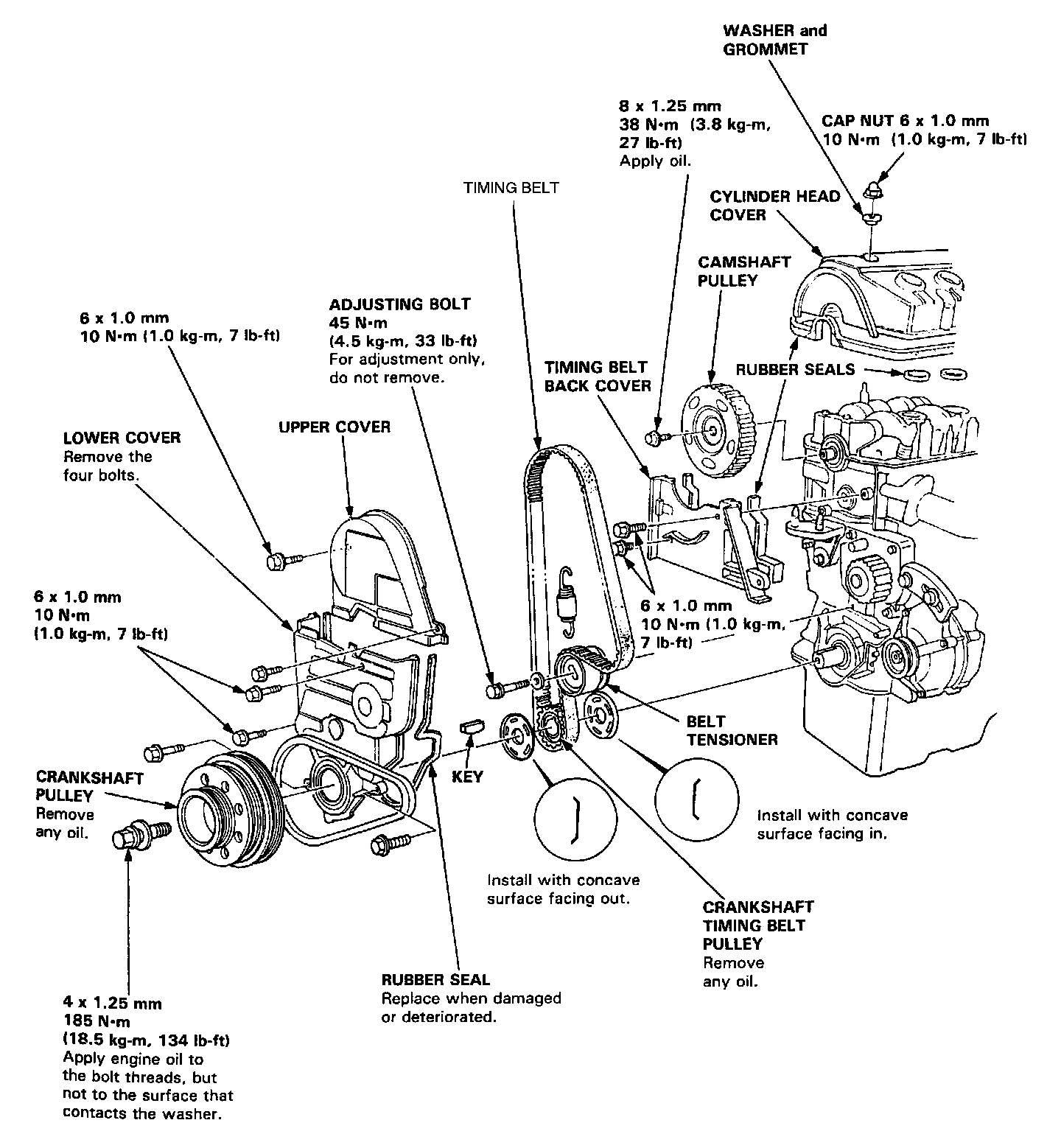

Timing Components (D15B7):

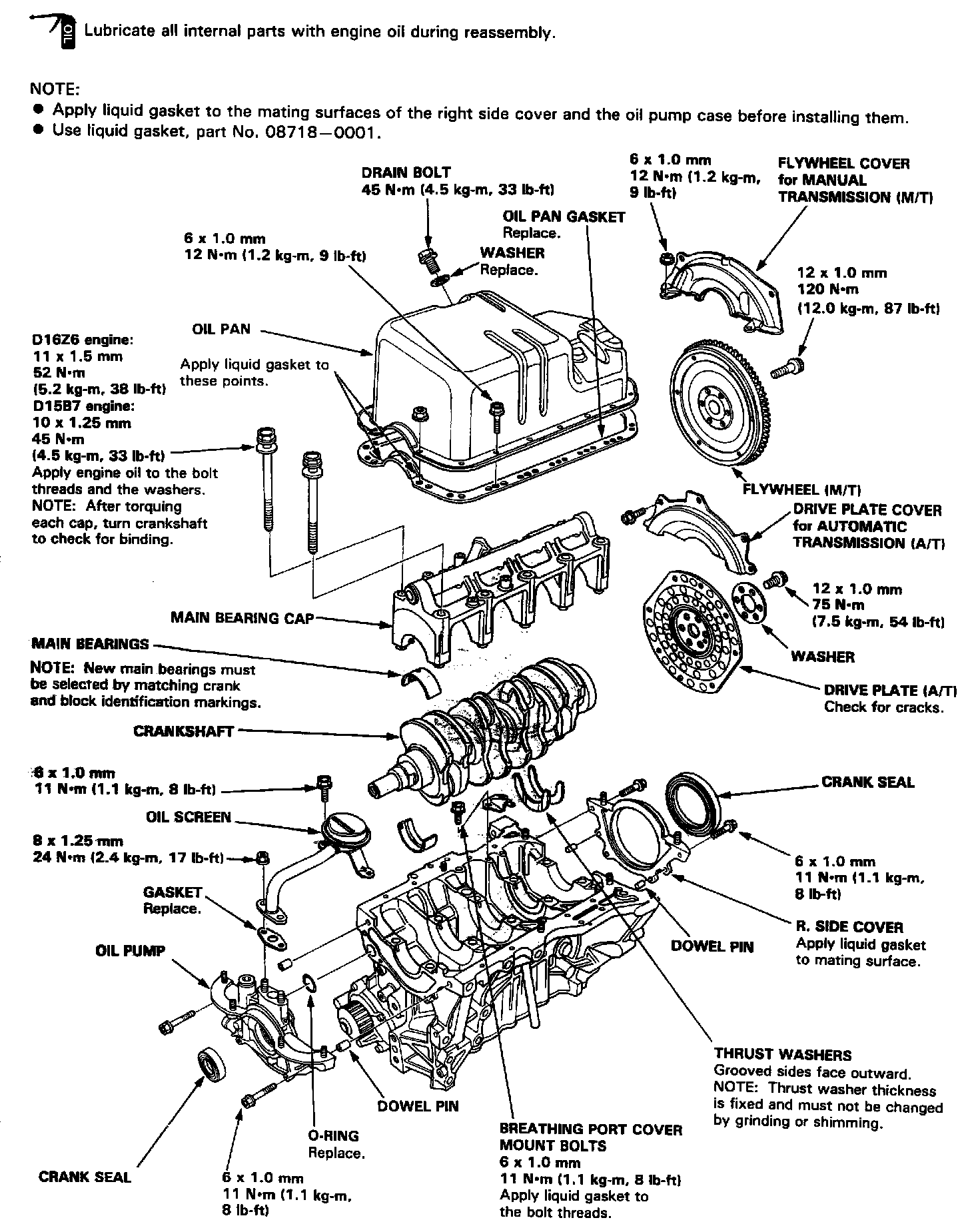

Lower Engine:

Main Bearing Loosening Sequence:

Main Bearing Torque Sequence:

Flywheel (M/T) Torque:

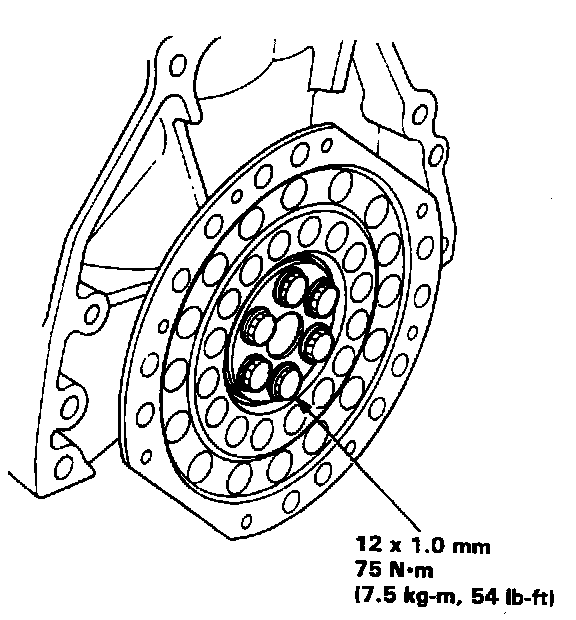

Drive Plate (A/T) Torque:
