Engine Compartment Right Side
Engine Compartment Right Side

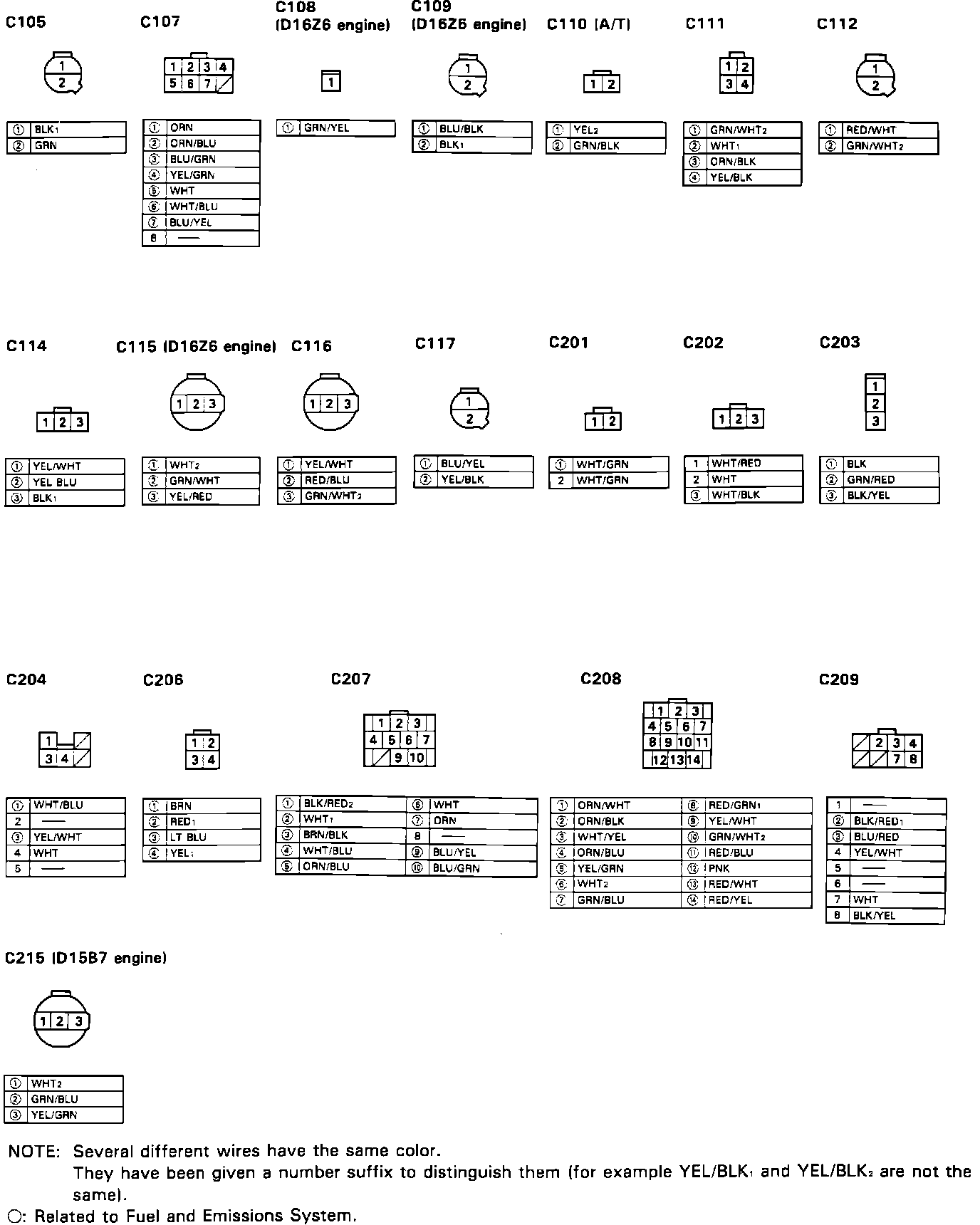

Wire Connector Identification And Wire Location:
