Power Distribution

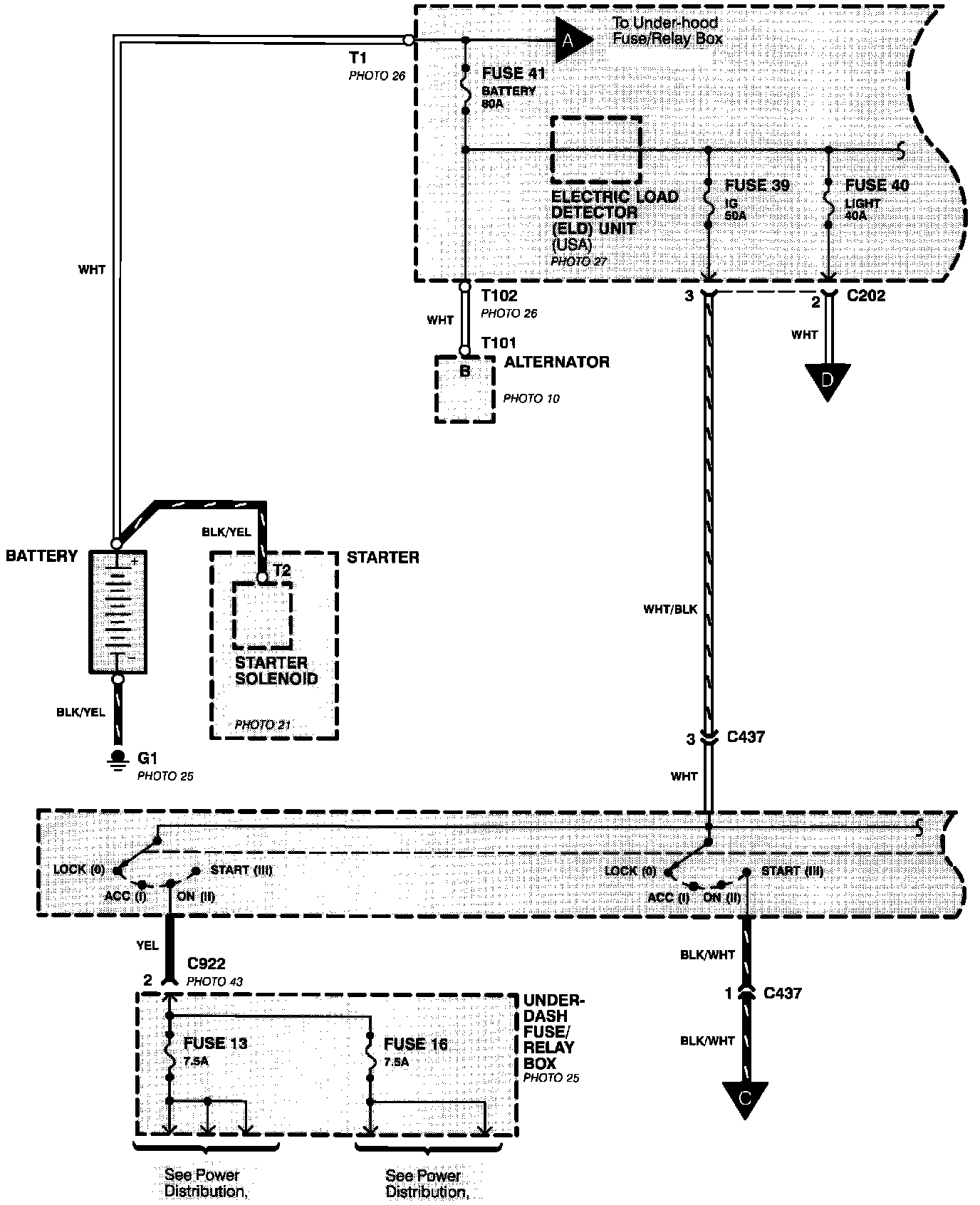

Power Distribution: Battery To Fuses And Relays:

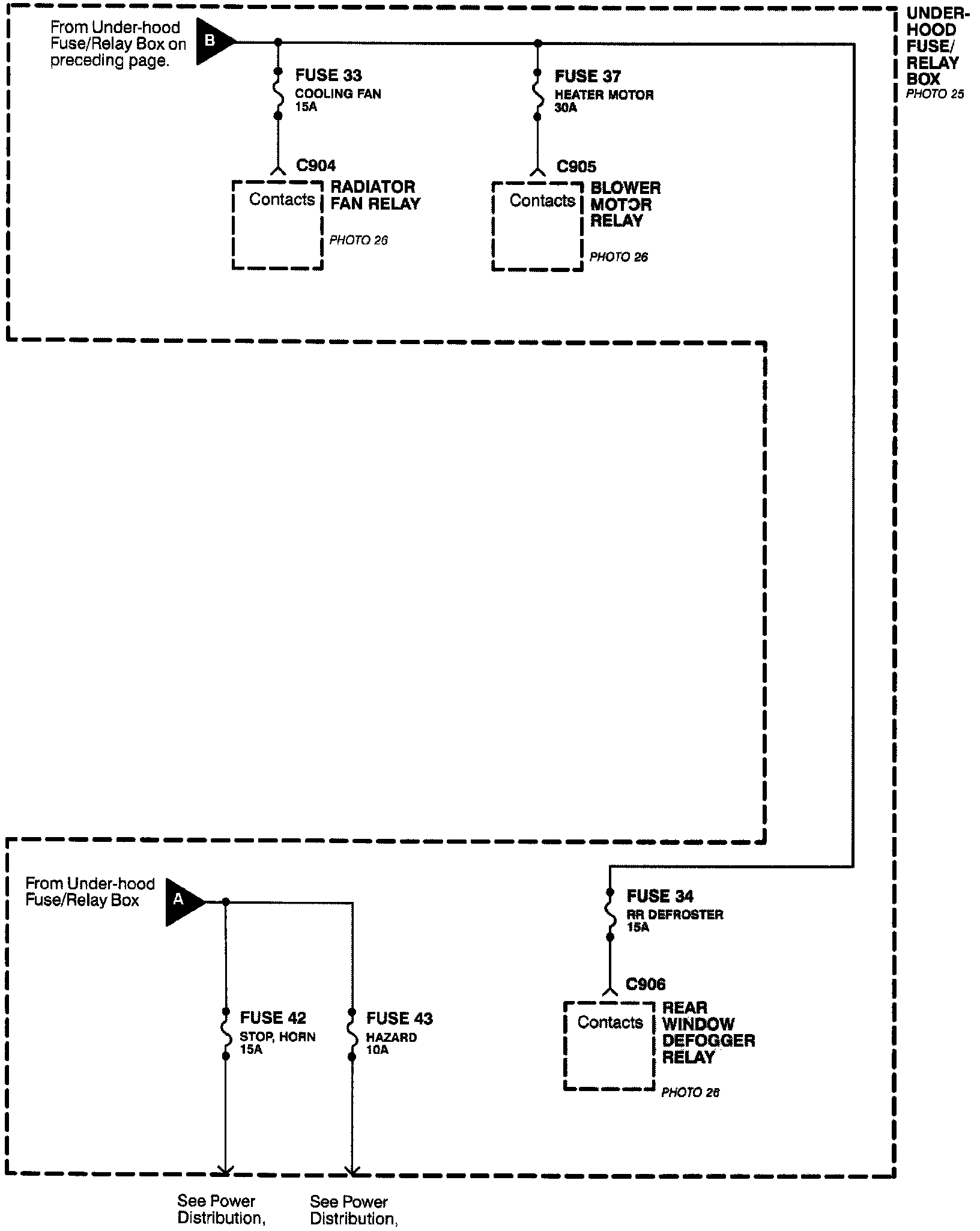

Power Distribution: Battery To Fuses And Relays:

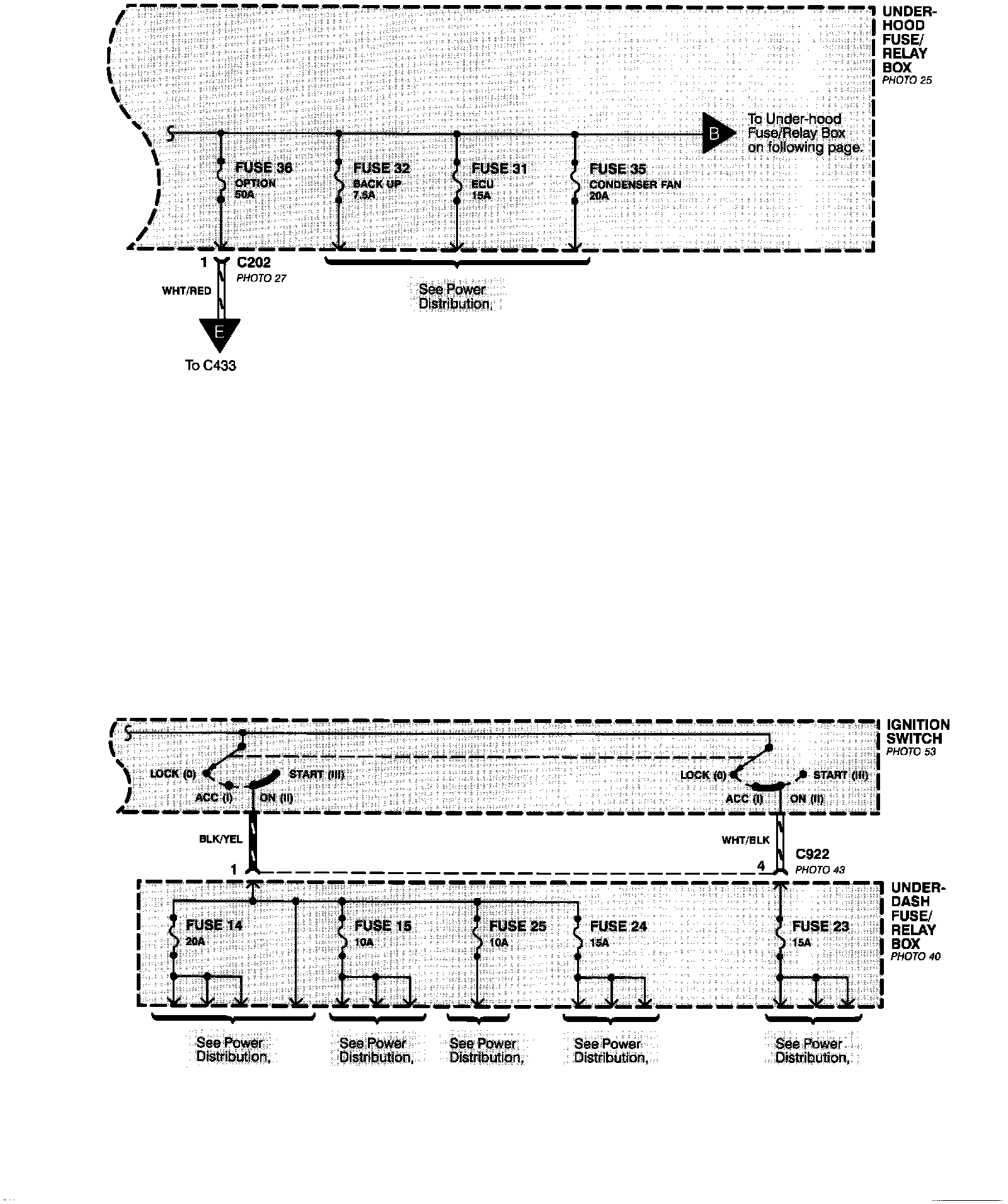

Power Distribution: Battery To Fuses And Relays:

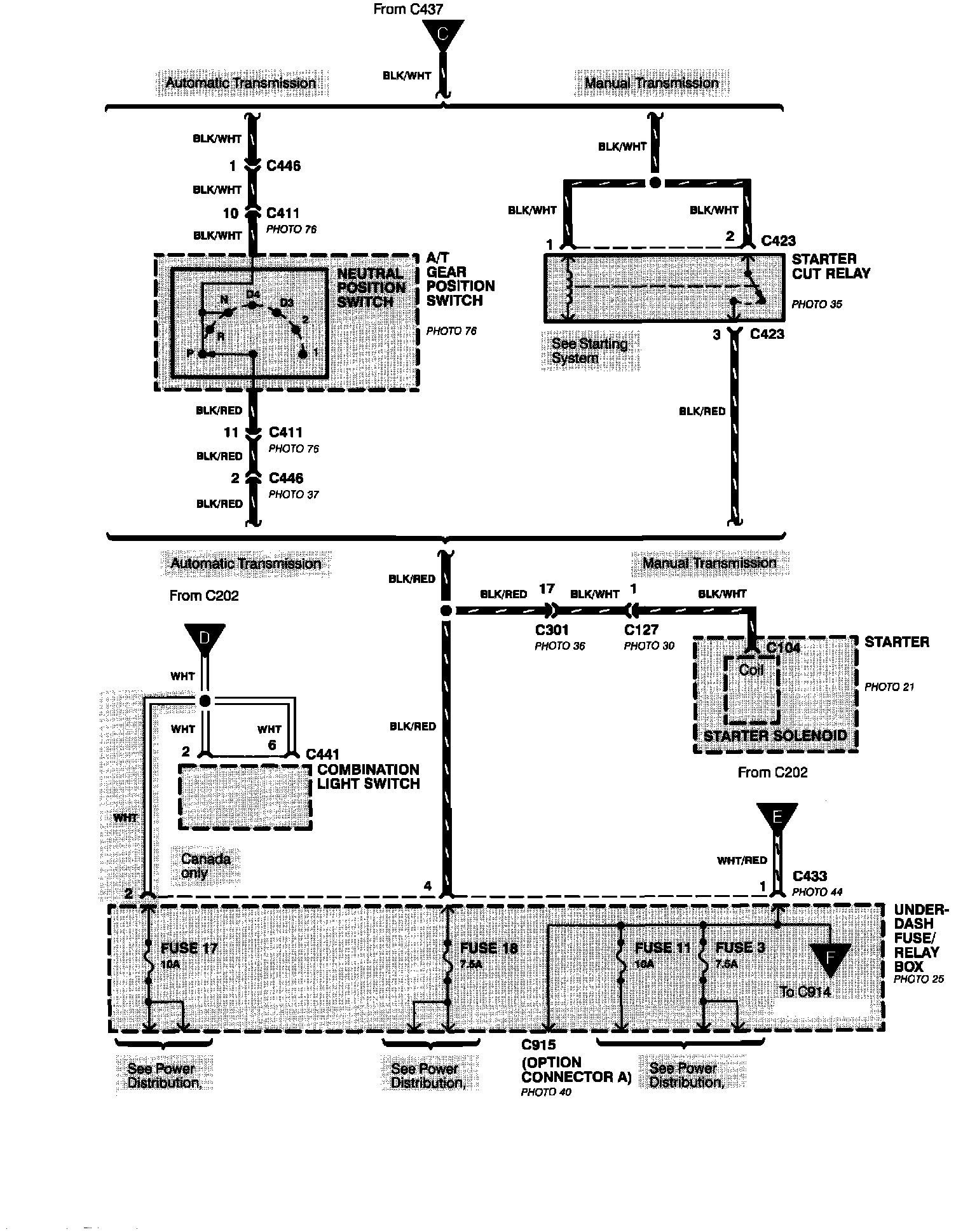

Power Distribution: Battery To Fuses And Relays:
