Power and Ground Distribution
>>
Locations
>>
Connector Locations
>>
Engine Compartment Right Side
Engine Compartment Right Side

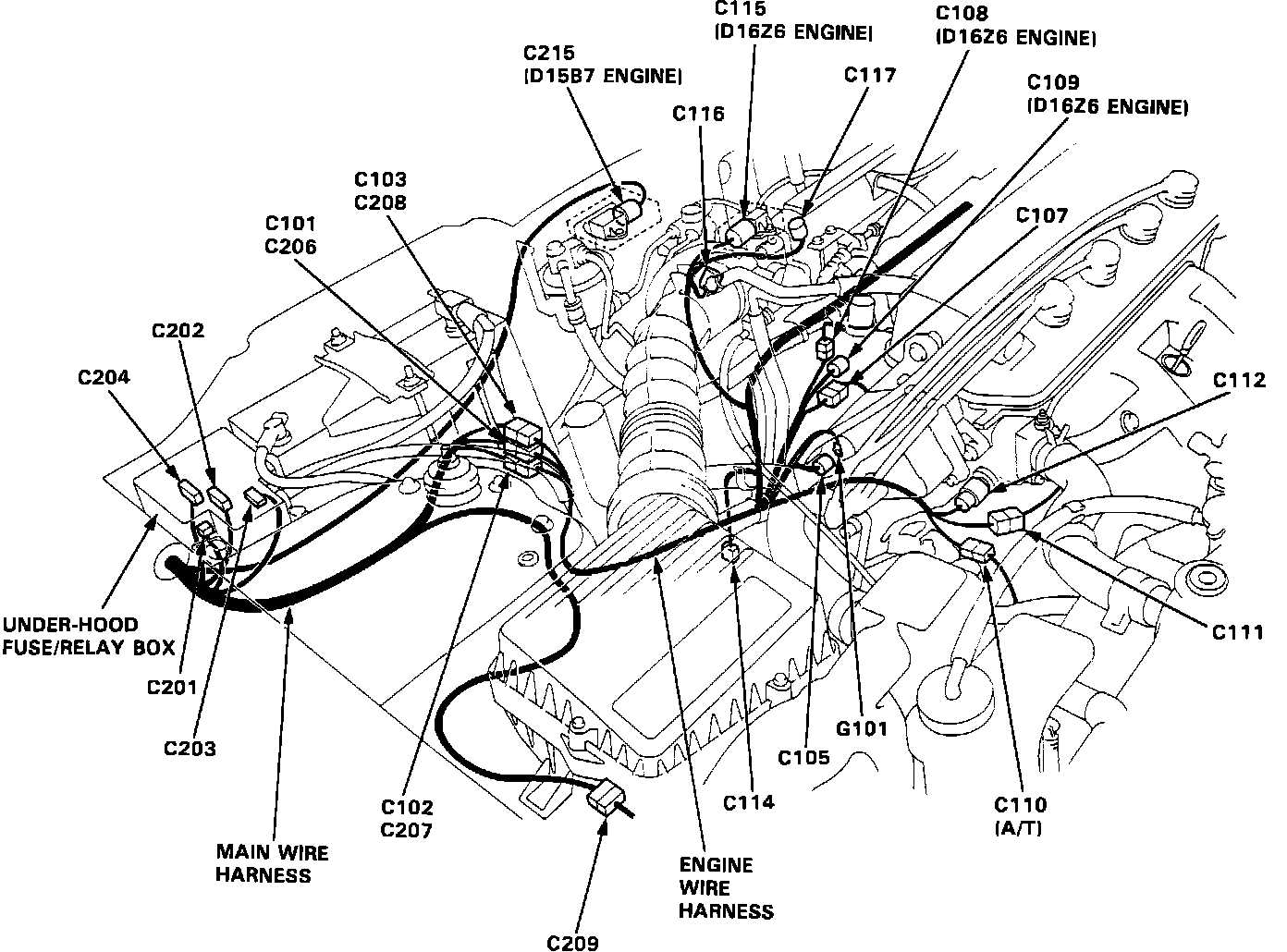

Wiring Harness Engine Compartment:
