Home
>>
Honda
>>
1993
>>
Del Sol L4-1.5L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Connector Locations
>>
Left Side Dash
Left Side Dash

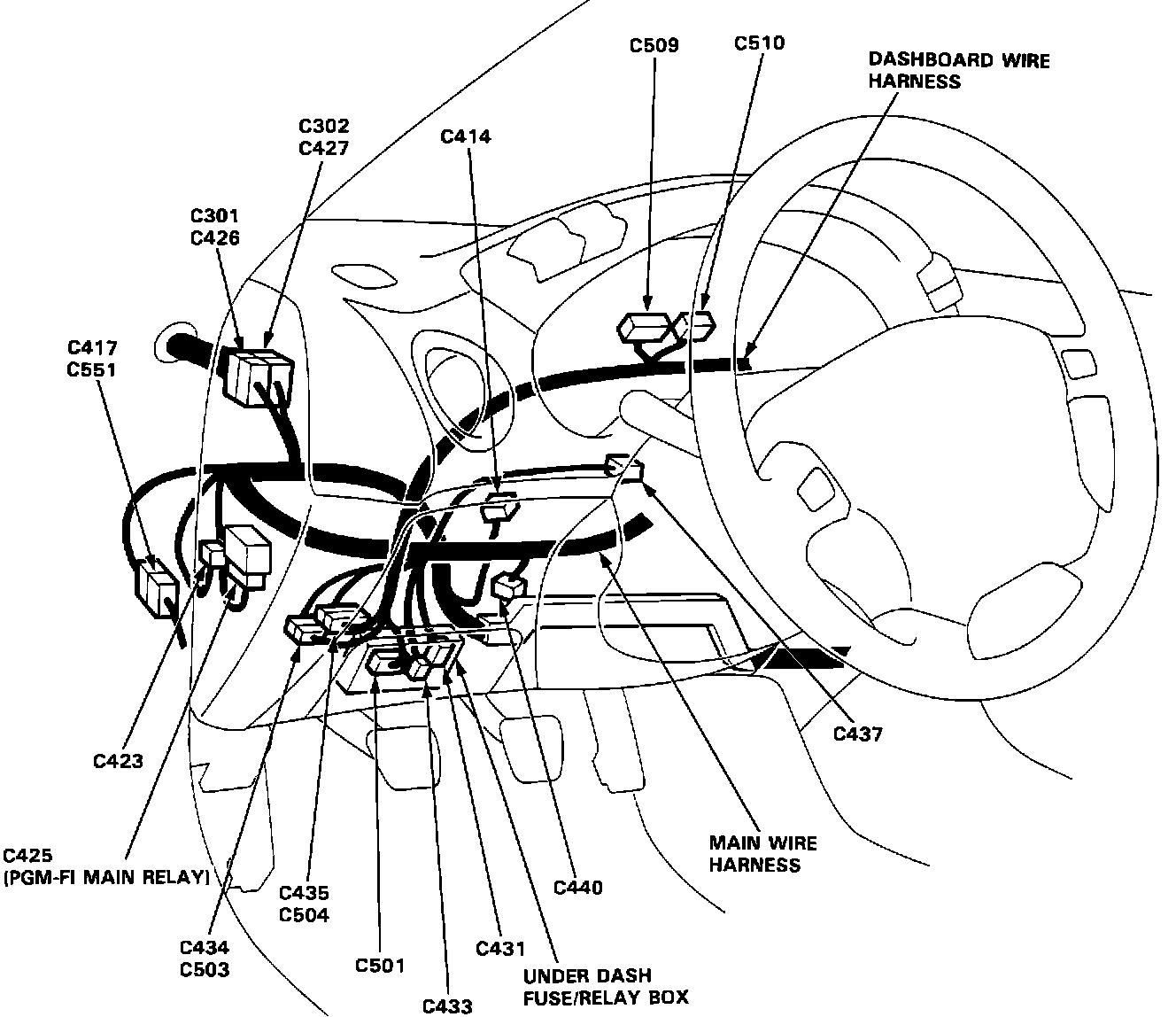

Under-dash Wiring Harness Left Side:
