Malfunction Indicator Light and Vehicle Speed Sensor
Malfunction Indicator Light and Vehicle Speed Sensor

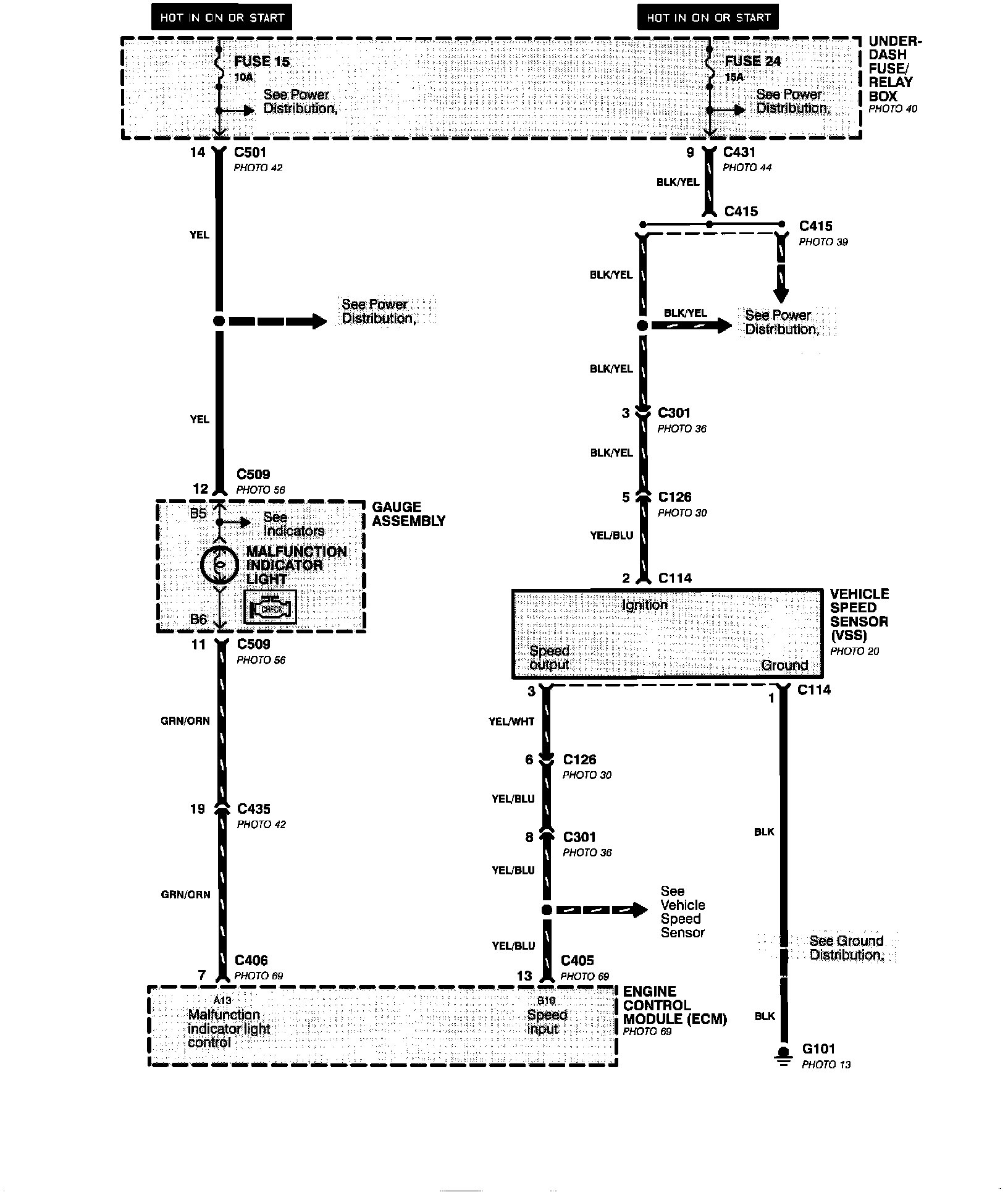

Engine Management (PGM-FI): Malfunction Indicator Light (MIL) And Vehicle Speed Sensor (VSS):
