Schematic and Routing

Engine Vacuum Hose Connections:

ENGINE VACUUM HOSE ROUTING

Schematic View Vacuum Hose Routing:

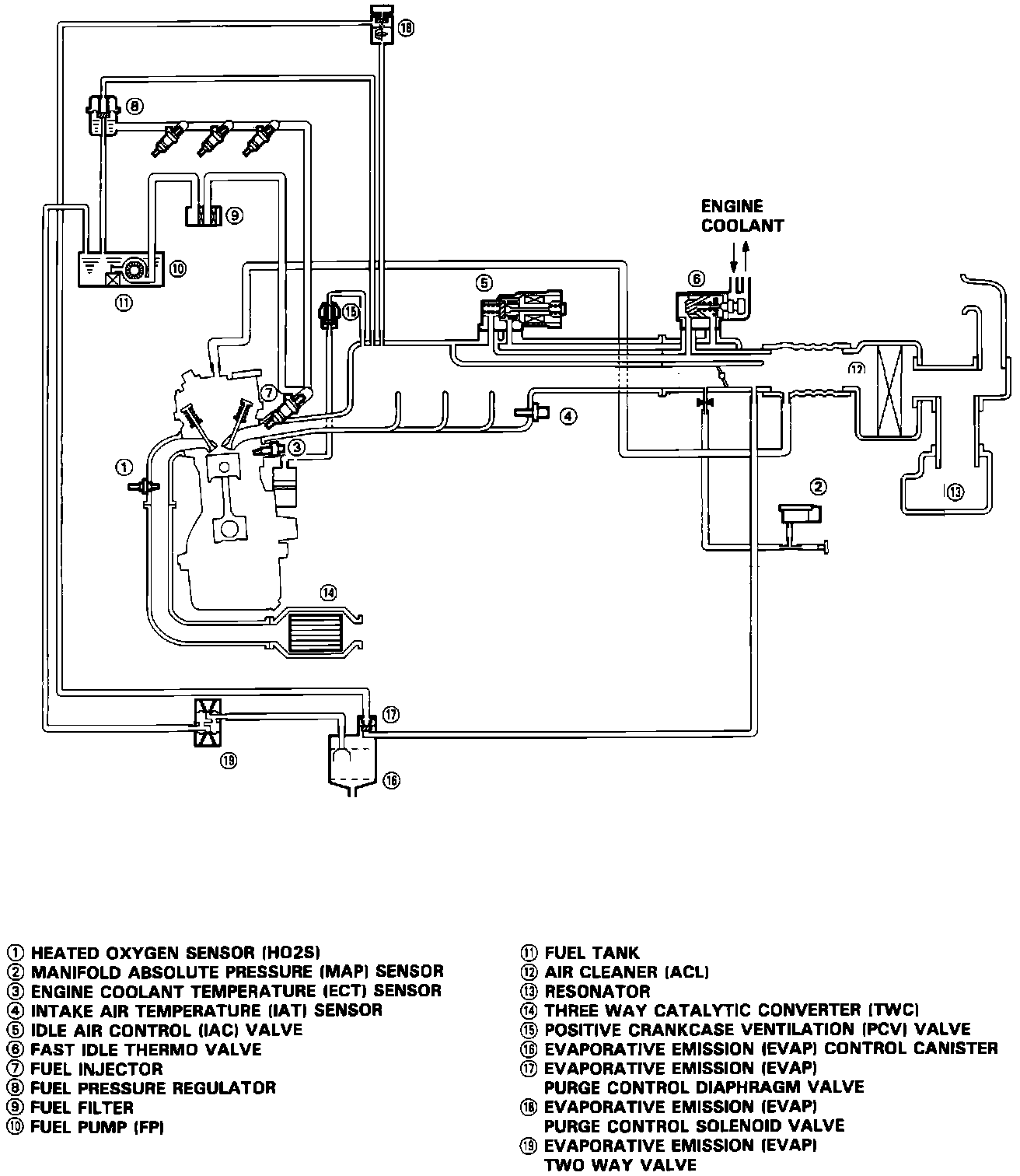

COMPLETE VACUUM SCHEMATIC
