Supplemental Restraint System (SRS)

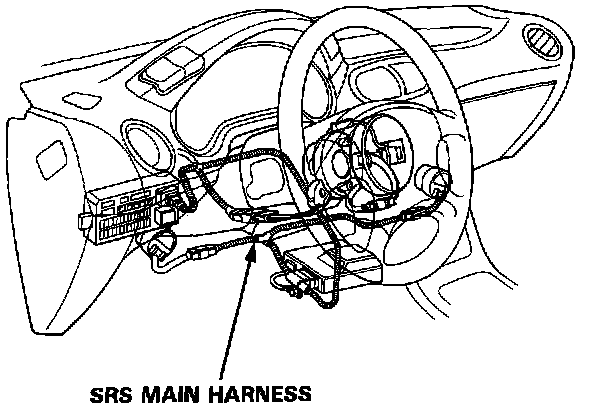

SRS Main Harness Location:

CAUTION:
^ All SRS electrical wiring harnesses are covered with yellow outer insulation.
^ Before disconnecting the SRS wire harness, install the short connector(s) on the airbag(s).
^ Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
