Wiring Precautions

SRS Wiring Harness Repairs:

- Never attempt to modify, splice or repair SRS wiring.

SRS Harness Routing:

- Be sure to install the harness wires so that they are not pinched or interfering with other car parts.
- Make sure all SRS ground locations are clean and grounds are securely fastened for optimum metal-to-metal contact. Poor grounding can cause intermittent problems that are difficult to diagnose.


INSTALLING THE SHORT CONNECTOR

WARNING: To avoid accidental deployment and possible injury, always install the protective short connector(s) on the driver's (and passenger's) airbag connector(s) before working near any SRS wiring.


NOTE: The radio may have a five-digit coded theft protection circuit. Be sure to get the customer 5 code number before disconnecting the battery.

1. Disconnect the battery negative cable, then disconnect the positive cable.
2. Install the short connector(s):

Drivers Side Short Connector Installation:

Driver Side
- Remove the access panel from the steering wheel, then remove the short connector (RED) from the panel.
- Disconnect the connector between the driver's airbag and cable reel, then install the short connector (RED) on the airbag side of the connector.

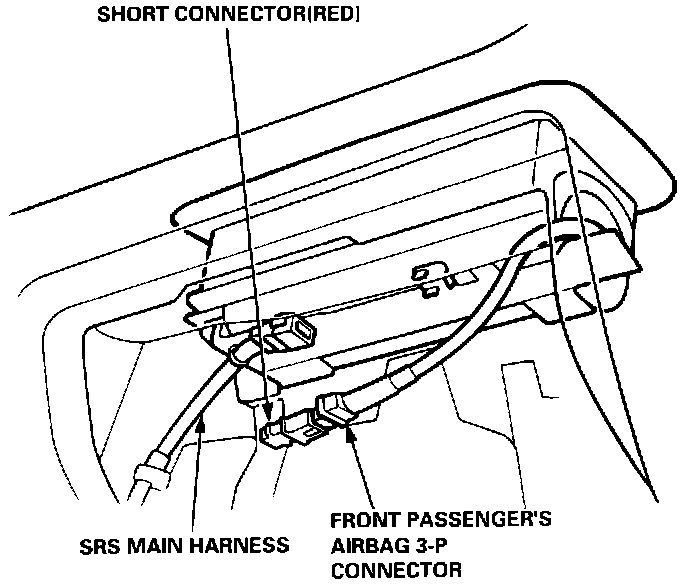

Passenger Side Air Bag Short Connector:

Front Passenger Side (Sedan SE Model)
- Remove the glove box.
- Disconnect the connector between the front passenger's airbag and SRS main harness, install the short connector (RED) on the airbag side of the connector.



DISCONNECTING THE SRS CONNECTOR AT THE FUSE BOX

SRS Main Connector At Fuse Box:

CAUTION: Avoid breaking the connector; it's double-locked.

1. First lift the connector lid with a thin screwdriver, then press the connector tab down and pull the connector out.
2. To reinstall the connector, push it into position until it clicks, then close its lid.
