Alternator: Testing and Inspection

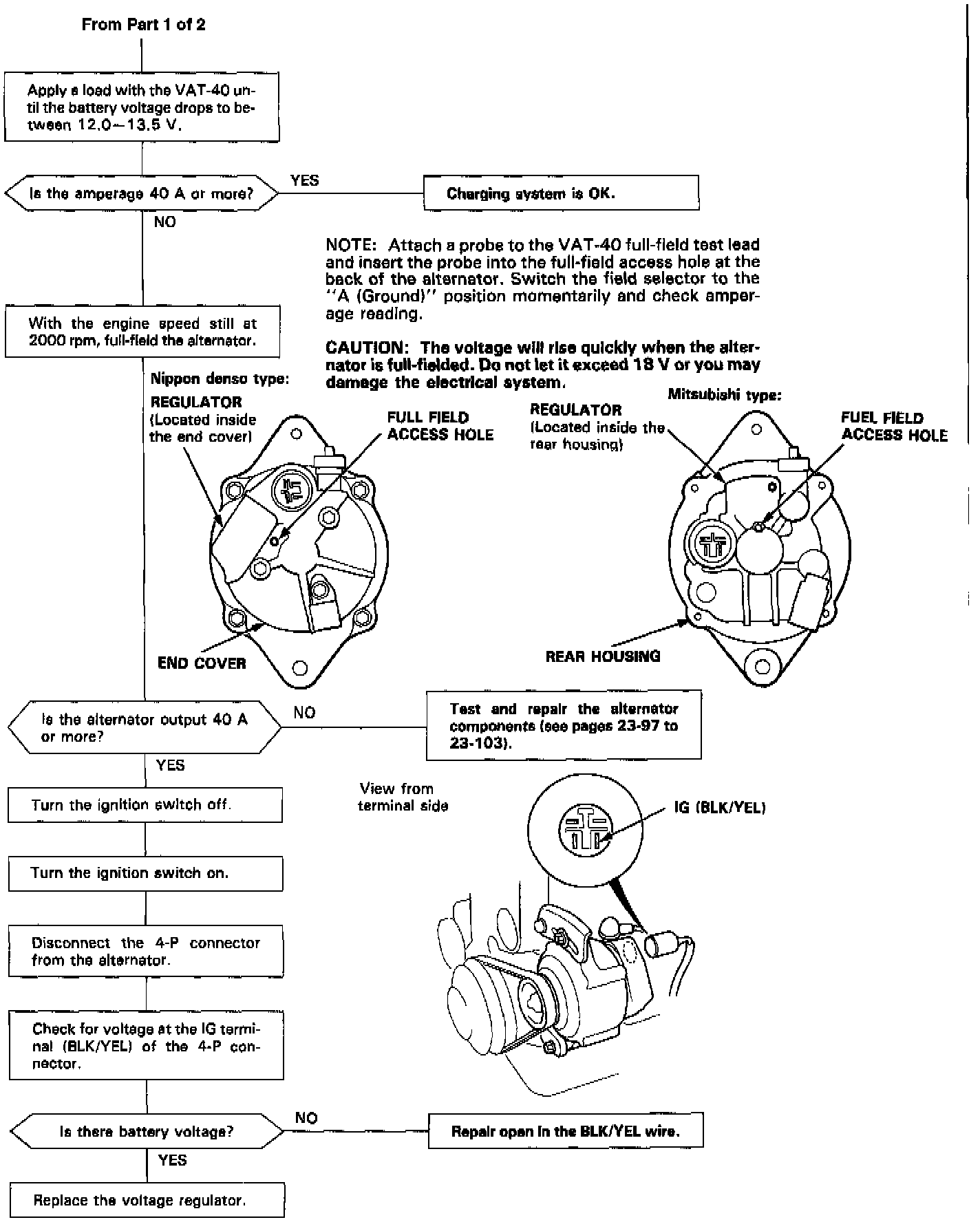

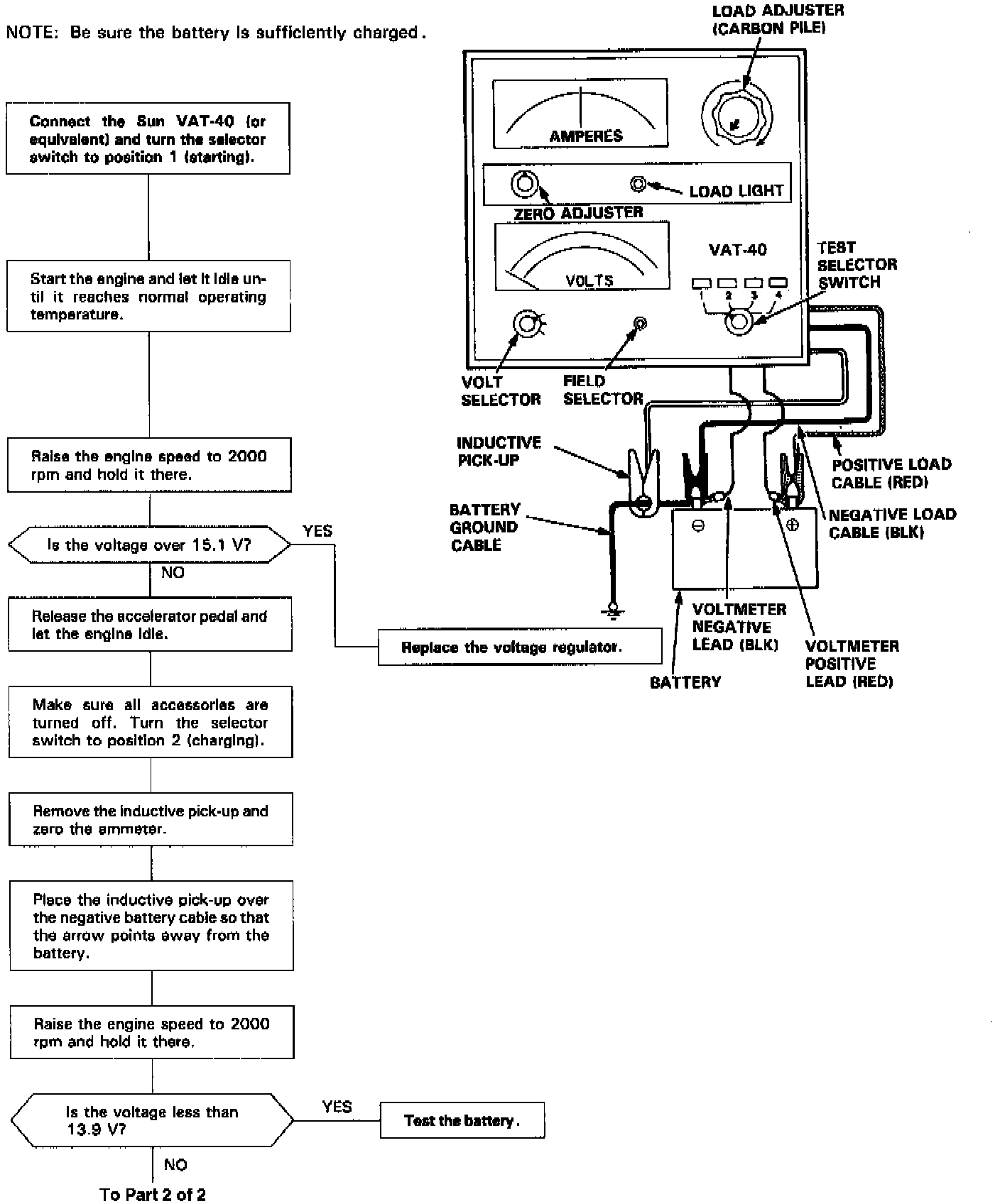

Alternator/Regulator Test Chart:
Alternator/Regulator Test Chart:
