DTC 1-2

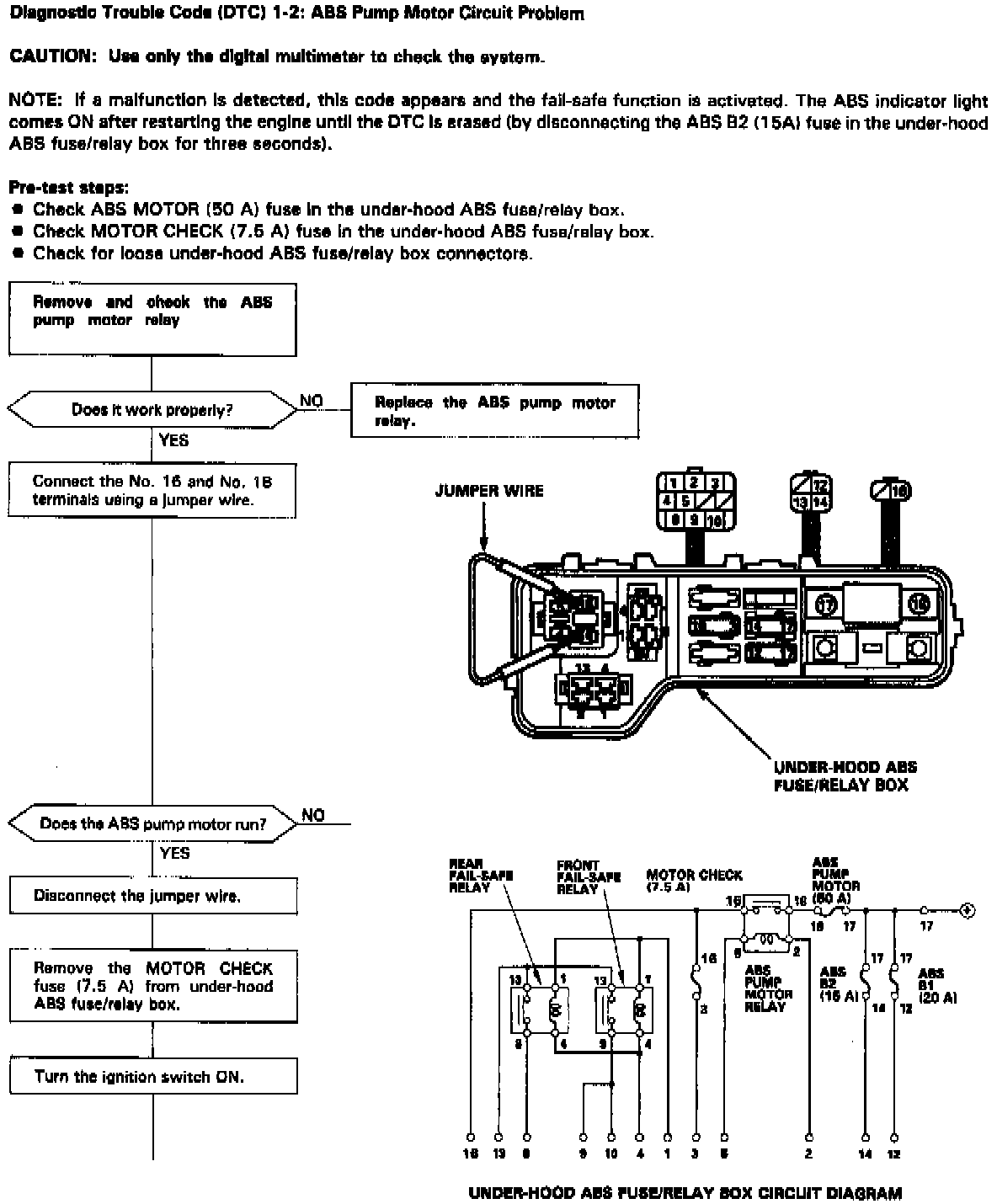

Fig. 71 Code 1-2: ABS Pump Motor Circuit Problem (Part 1 Of 3):

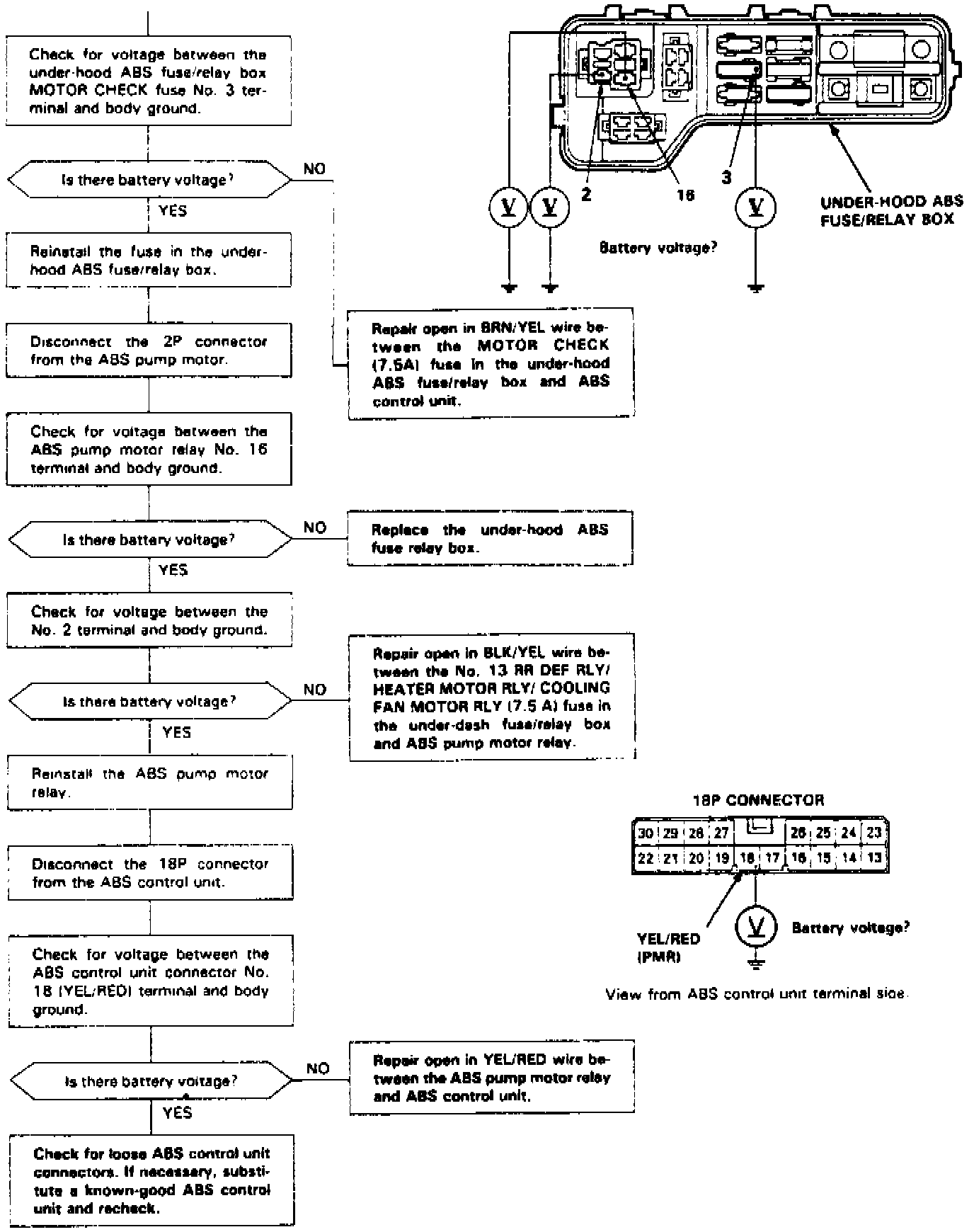

Fig. 71 Code 1-2: ABS Pump Motor Circuit Problem (Part 2 Of 3):

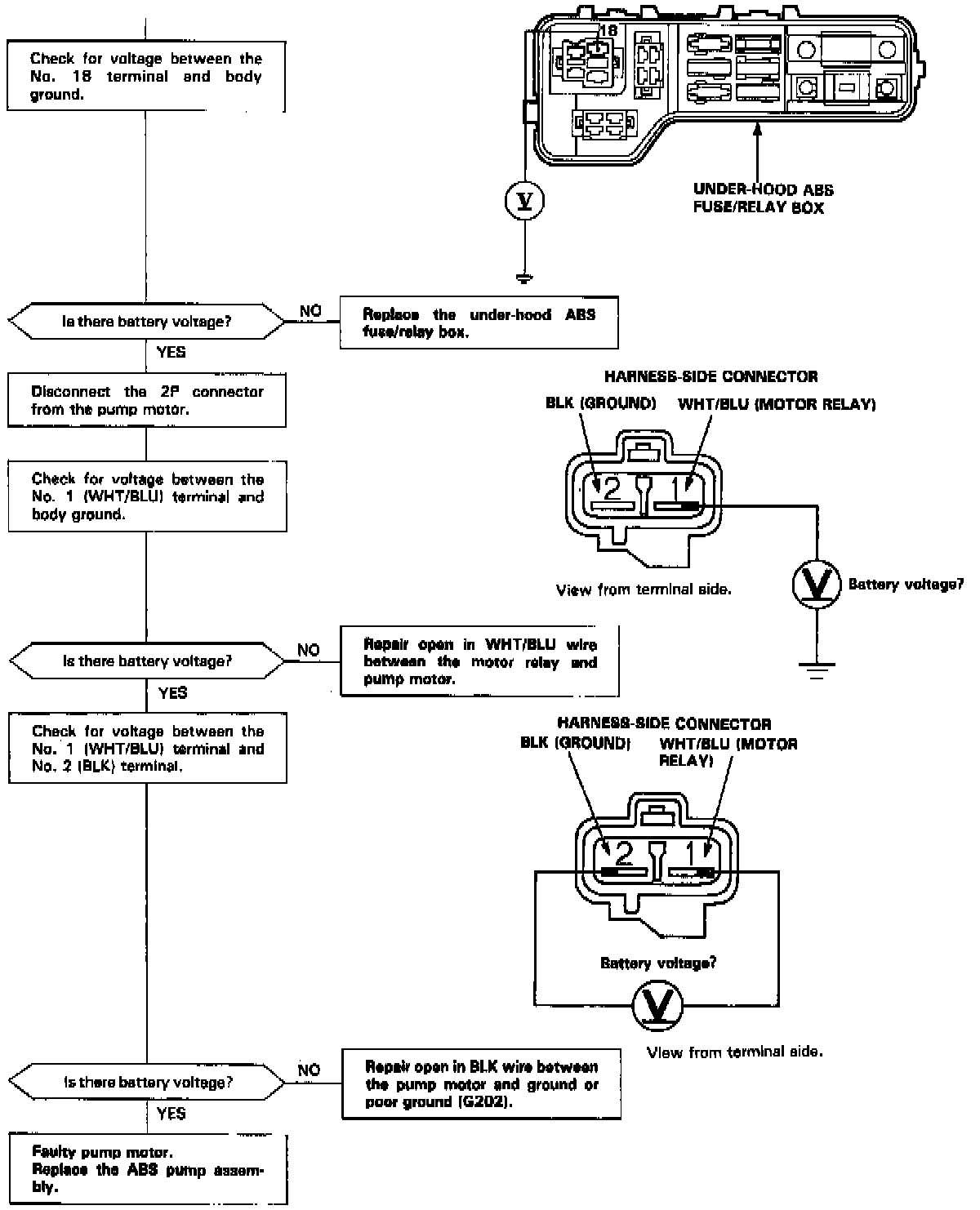

Fig. 71 Code 1-2: ABS Pump Motor Circuit Problem (Part 3 Of 3):

Refer to Fig. 71 for system diagnostic charts.
