Installation

1. Clean the mating surfaces of the hub unit and brake disc.






2. Install the hub unit on the brake disc and tighten the flange bolts.






3. Install the knuckle on the hub unit and tighten the self-locking bolts.

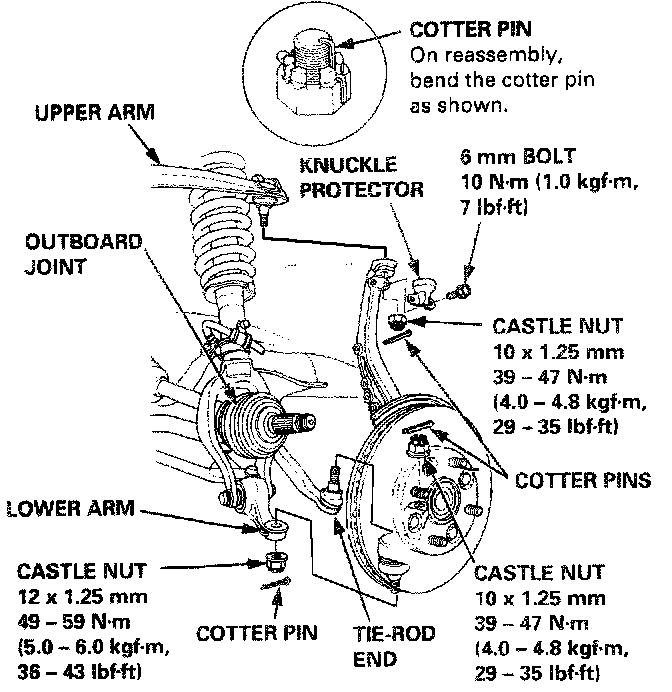

4. Install the knuckle on the tie-rod end, upper arm and lower arm. Tighten the castle nuts and install the new cotter pins.

Caution: Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the point hole. Never align the nut by loosening.

5. Install the knuckle protector with the 6mm bolt.

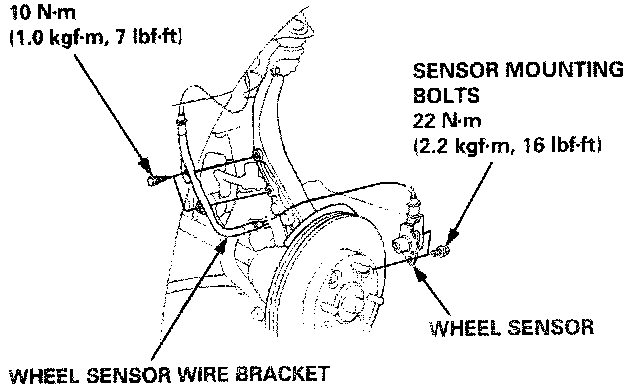

6. On ABS equipped cars, install the wheel sensor with the sensor mounting bolts.






7. On ABS equipped cars, taking care not to twist the wires, install the wheel sensor wire bracket with the two flange bolts.

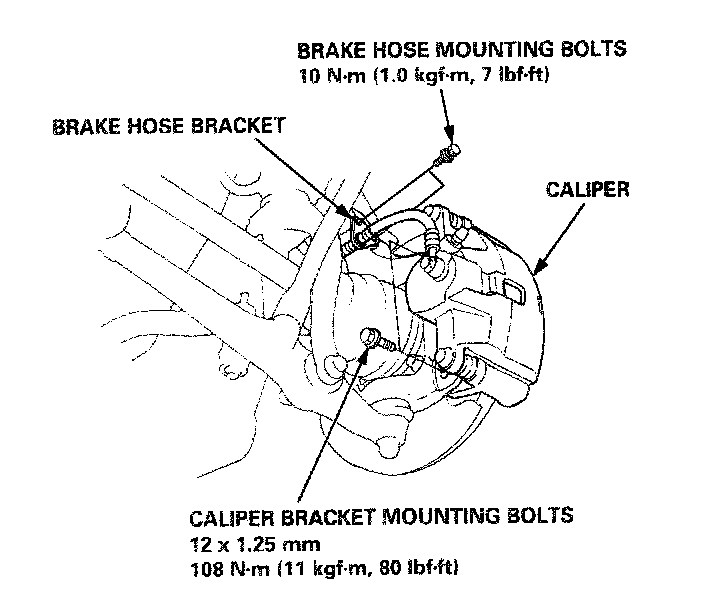

8. Install the caliper with the caliper bracket mounting bolts.

Caution: Be careful not to twist the hose more than necessary.

9. Install the brake hose bracket with the brake hose mounting bolts.

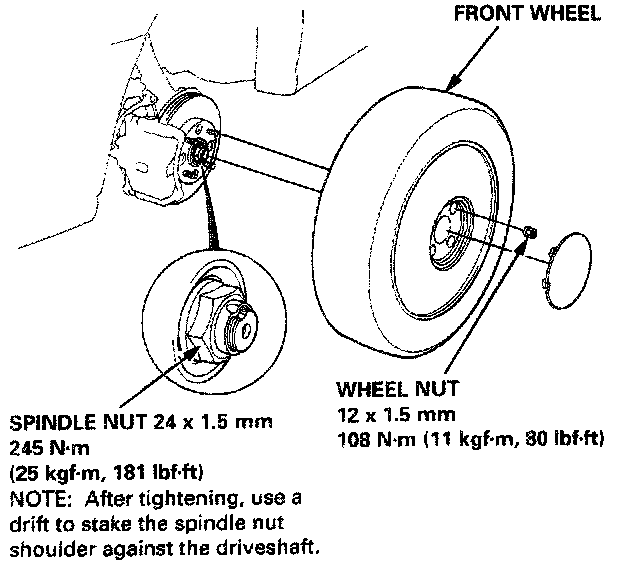

10. Install the new spindle nut, then tighten and stake the nut.






11. Clean the mating surfaces of the brake disc and wheel.
12. Install the front wheel with the wheel nuts and torque to specification.
13. Check and adjust the front wheel alignment as necessary.
