Component Tests and General Diagnostics

1. Disconnect 14-P connector from control unit.

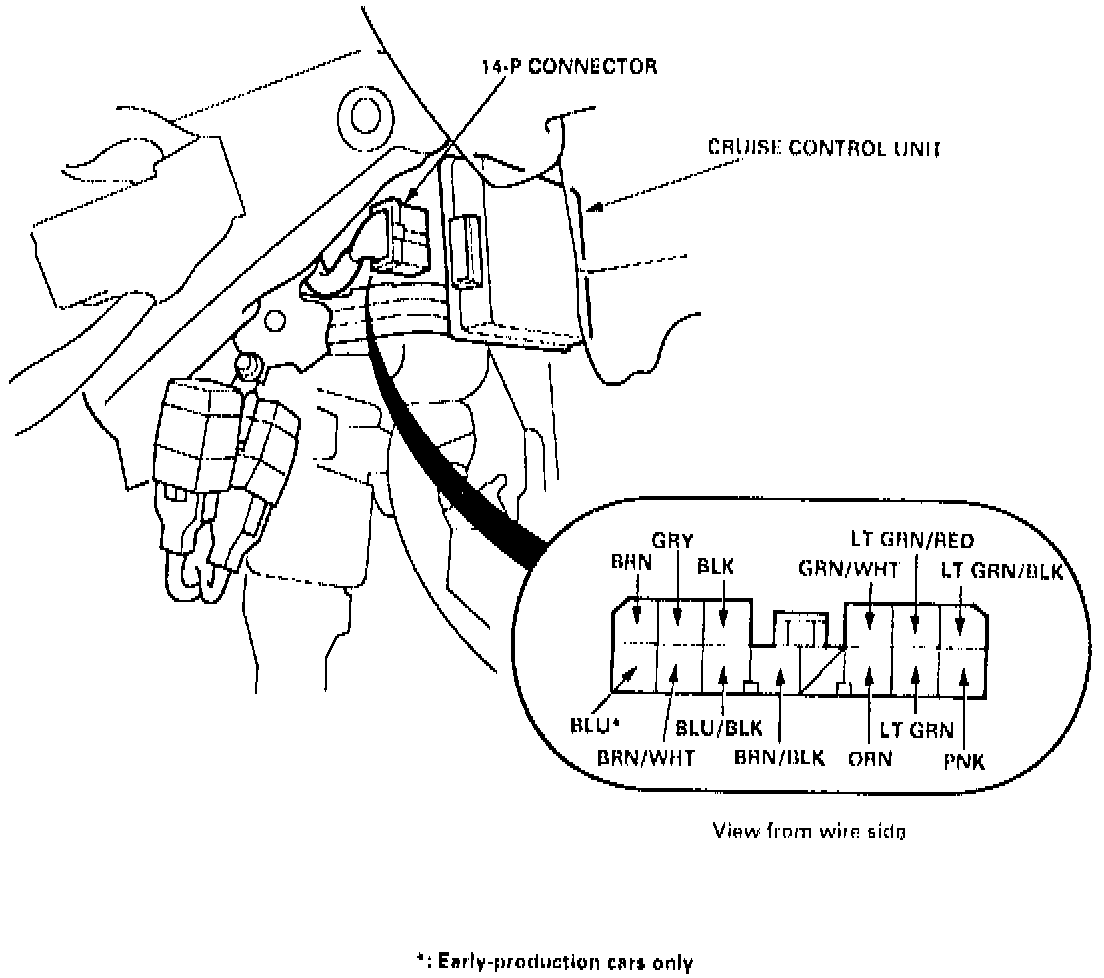

Fig. 19 Speed Control Unit Connector Pin Location:

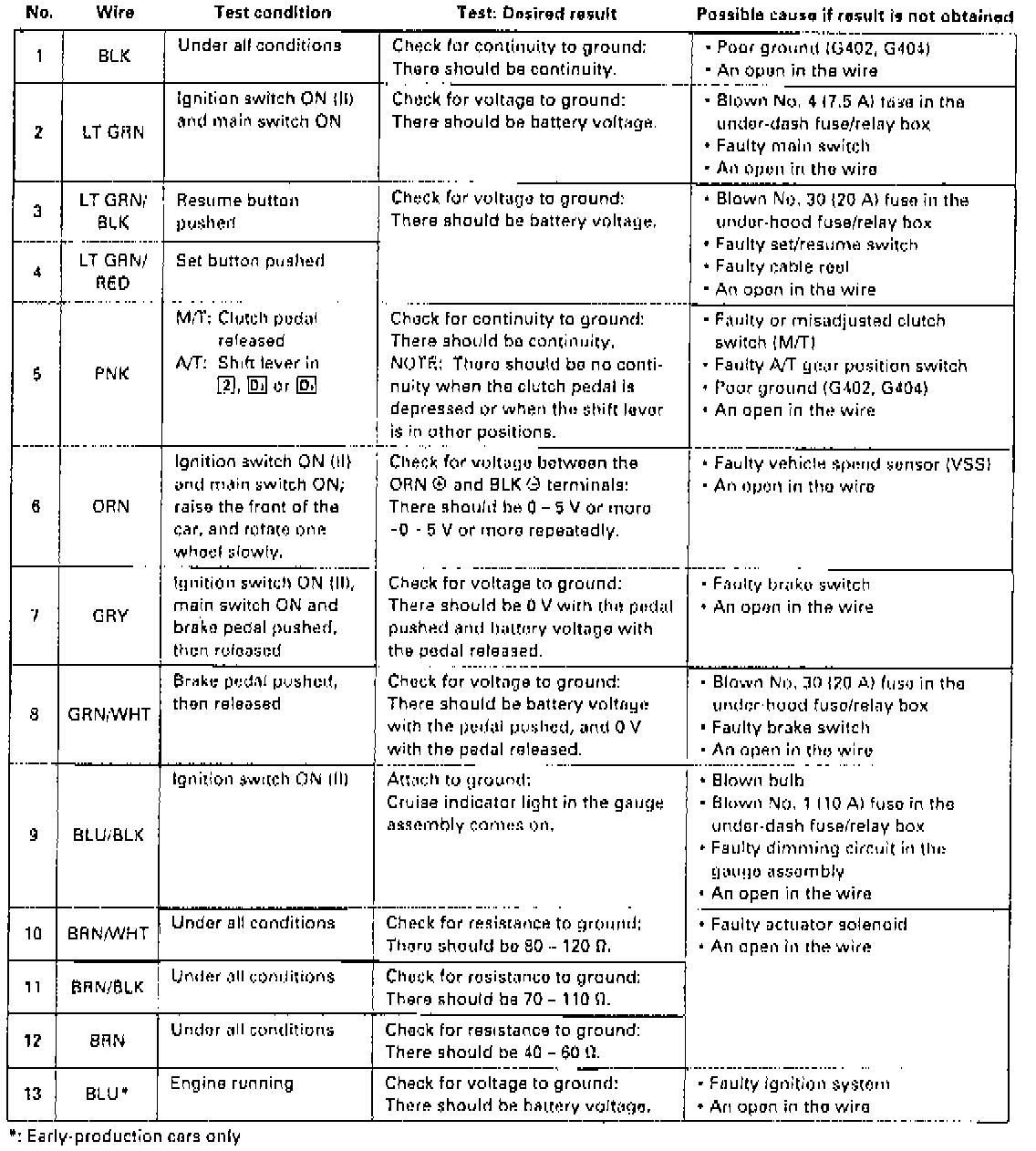

Fig. 21 Speed Control Unit Input Test Chart:

2. Perform tests at harness pin locations, Figs. 19 and 21.
3. Replace control unit if all input tests prove positive.
