Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

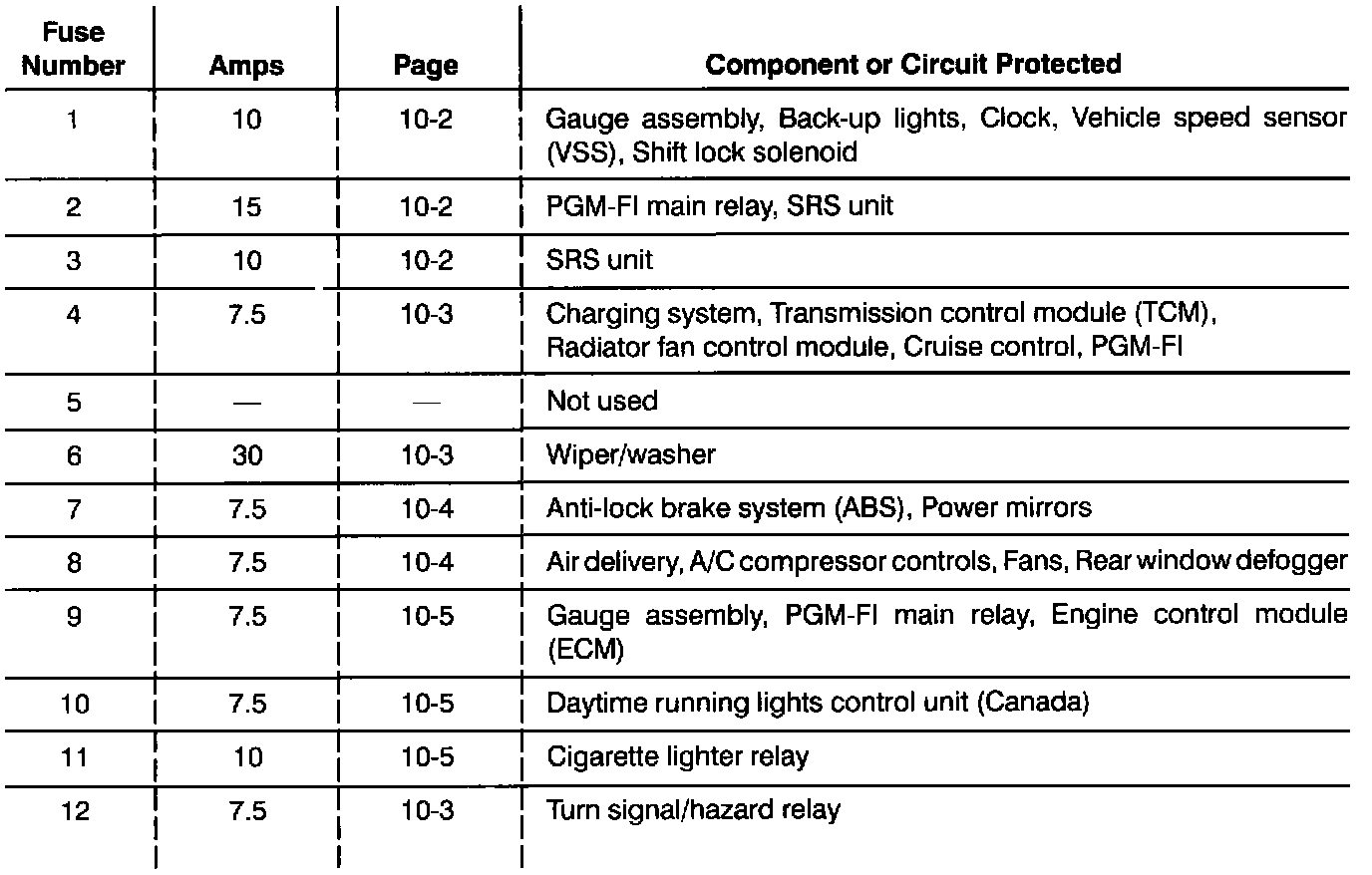

Under-dash Fuse/Relay Box (Part 1 Of 2):
Under-Dash Fuse/Relay Box (Part 2 Of 2):
