Coupe and Sedan

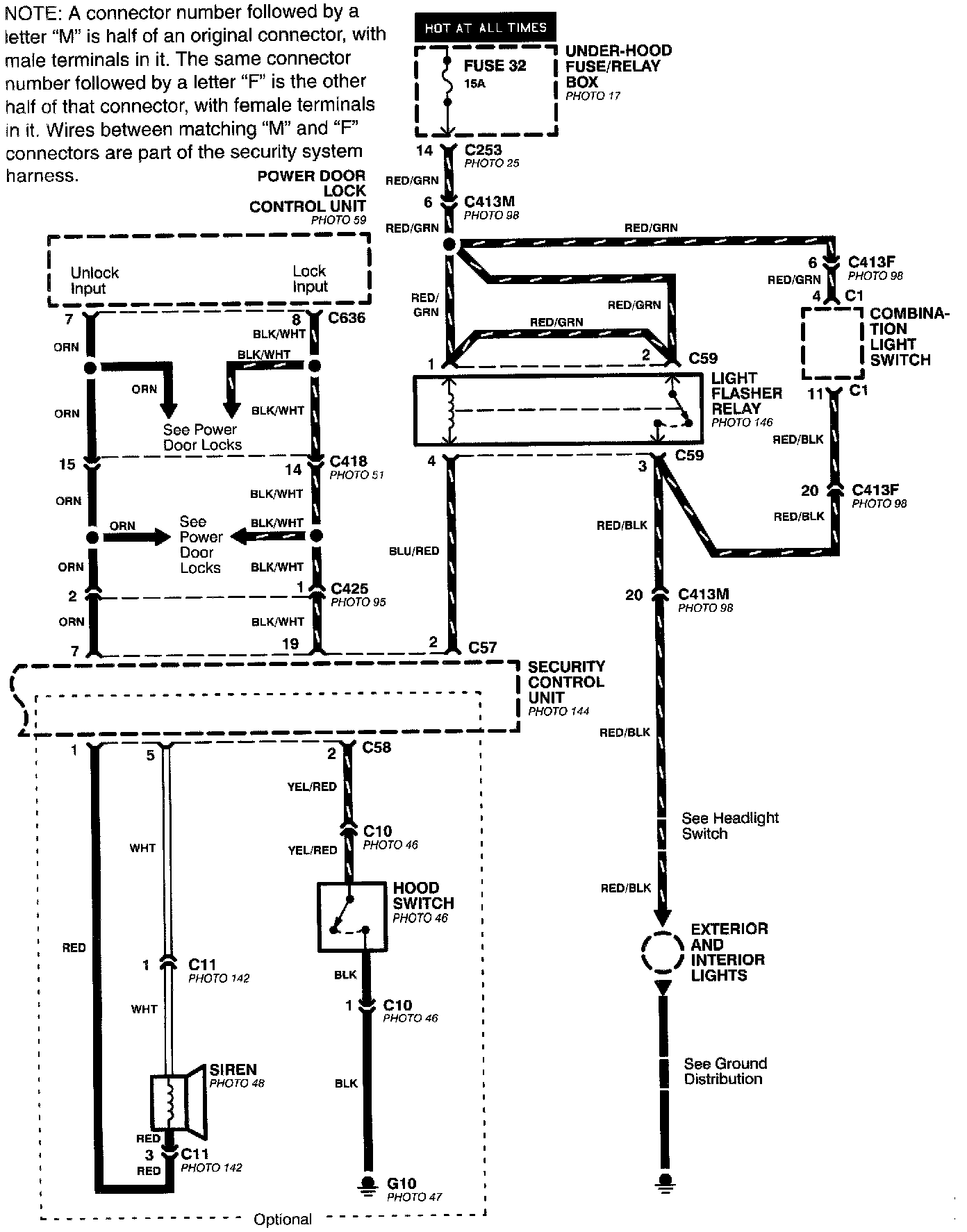

Security System- Coupe And Sedan (Part 1 Of 4):

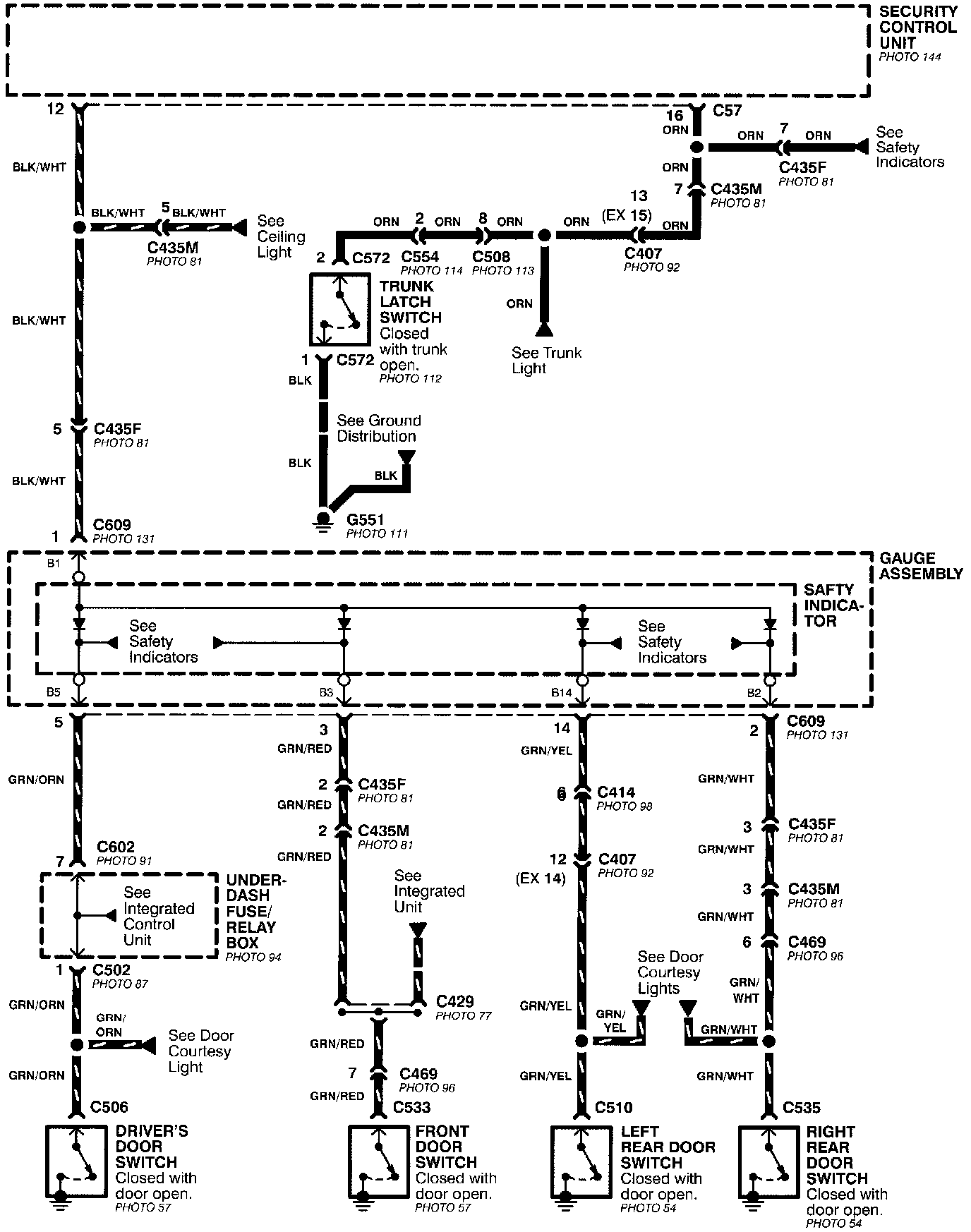

Security System- Coupe And Sedan (Part 2 Of 4):




Security System- Coupe And Sedan (Part 3 Of 4):




Security System- Coupe And Sedan (Part 4 Of 4):
