System Diagram

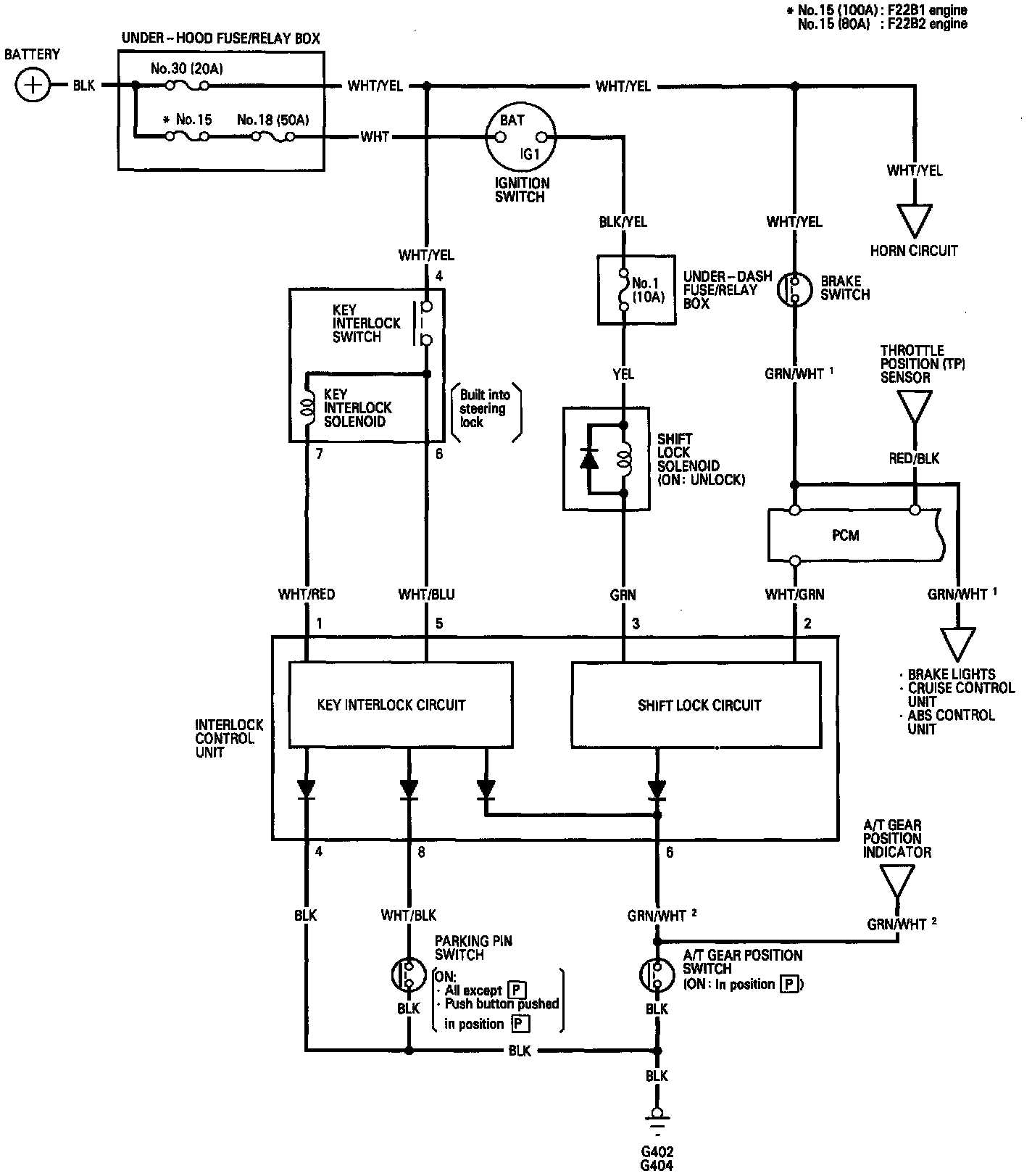

Interlock System - Circuit Diagram:
NOTE: Several different wires have the same color. They have been given a number suffix to distinguish them (for example, GRN/WHT(1) and GRN/WHT(2) are not the same).
NOTE: Several different wires have the same color. They have been given a number suffix to distinguish them (for example, GRN/WHT(1) and GRN/WHT(2) are not the same).
