Home >> Honda >> 1994 >> Accord L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp >> Wagon

Wagon

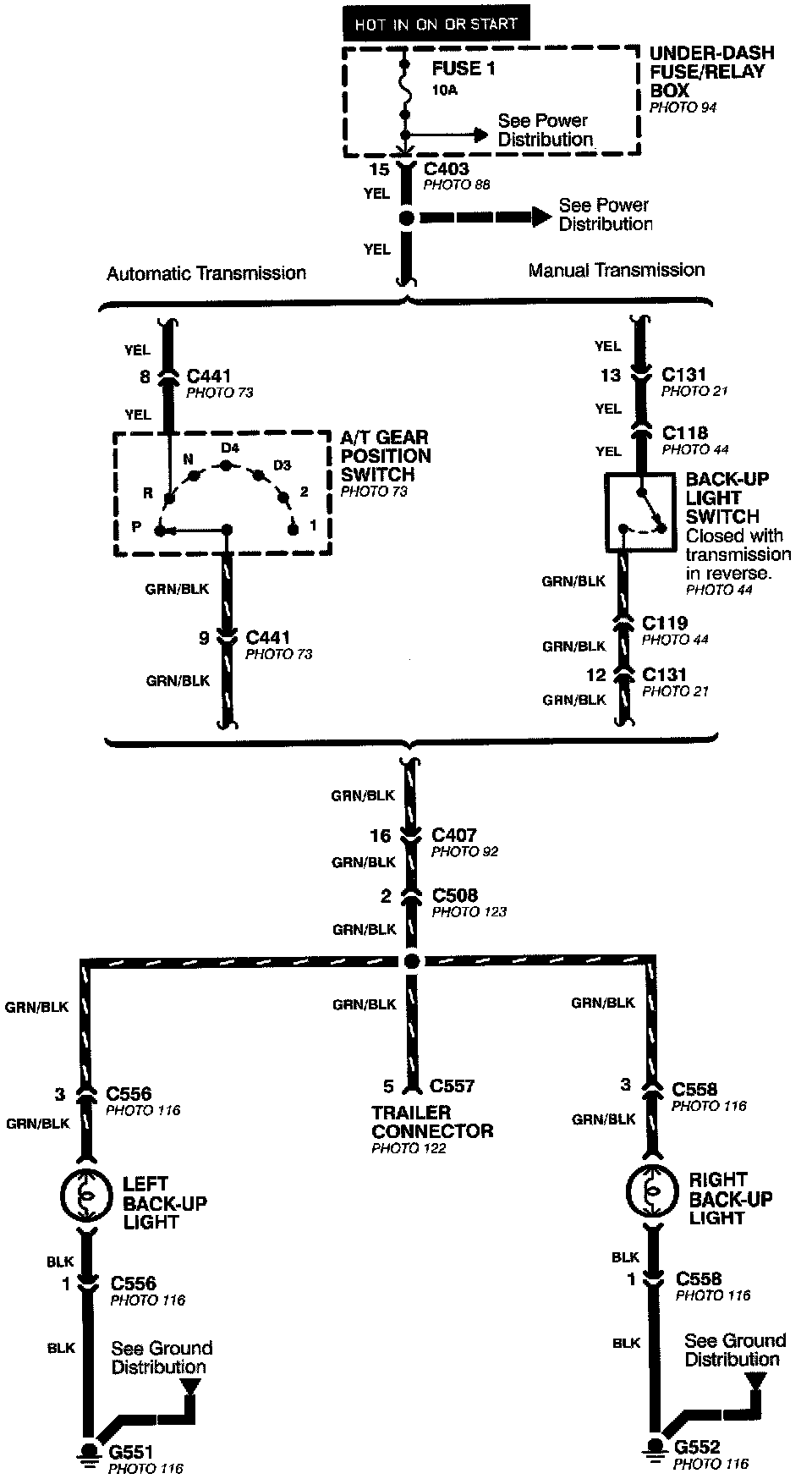

Back-up Lights- Wagon:
