Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1994
>>
Accord L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge

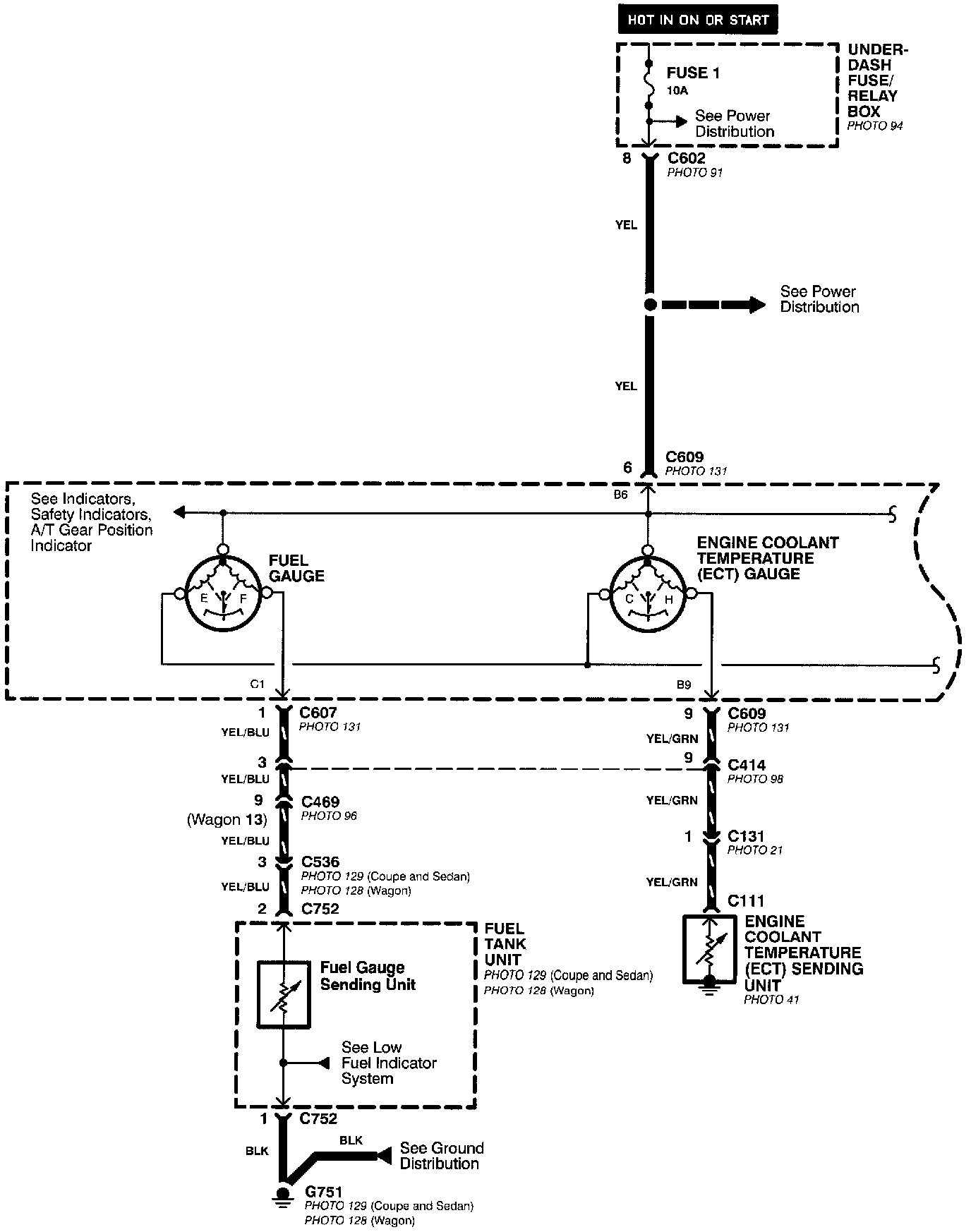

Fuel Gauge
Gauges (Part 1 Of 2):
