Coupe and Sedan

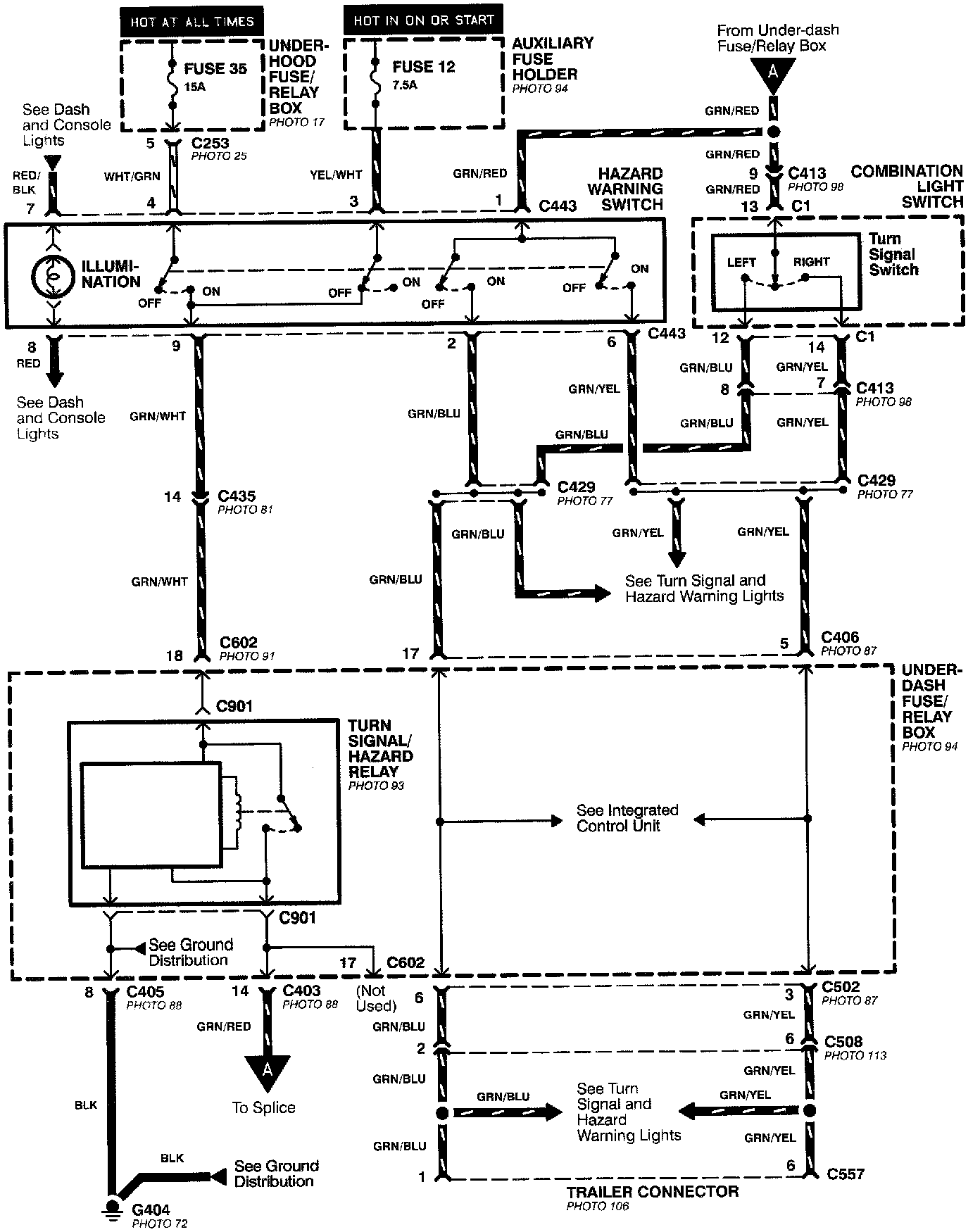

Trailer Connector- Coupe And Sedan (Part 1 Of 2):

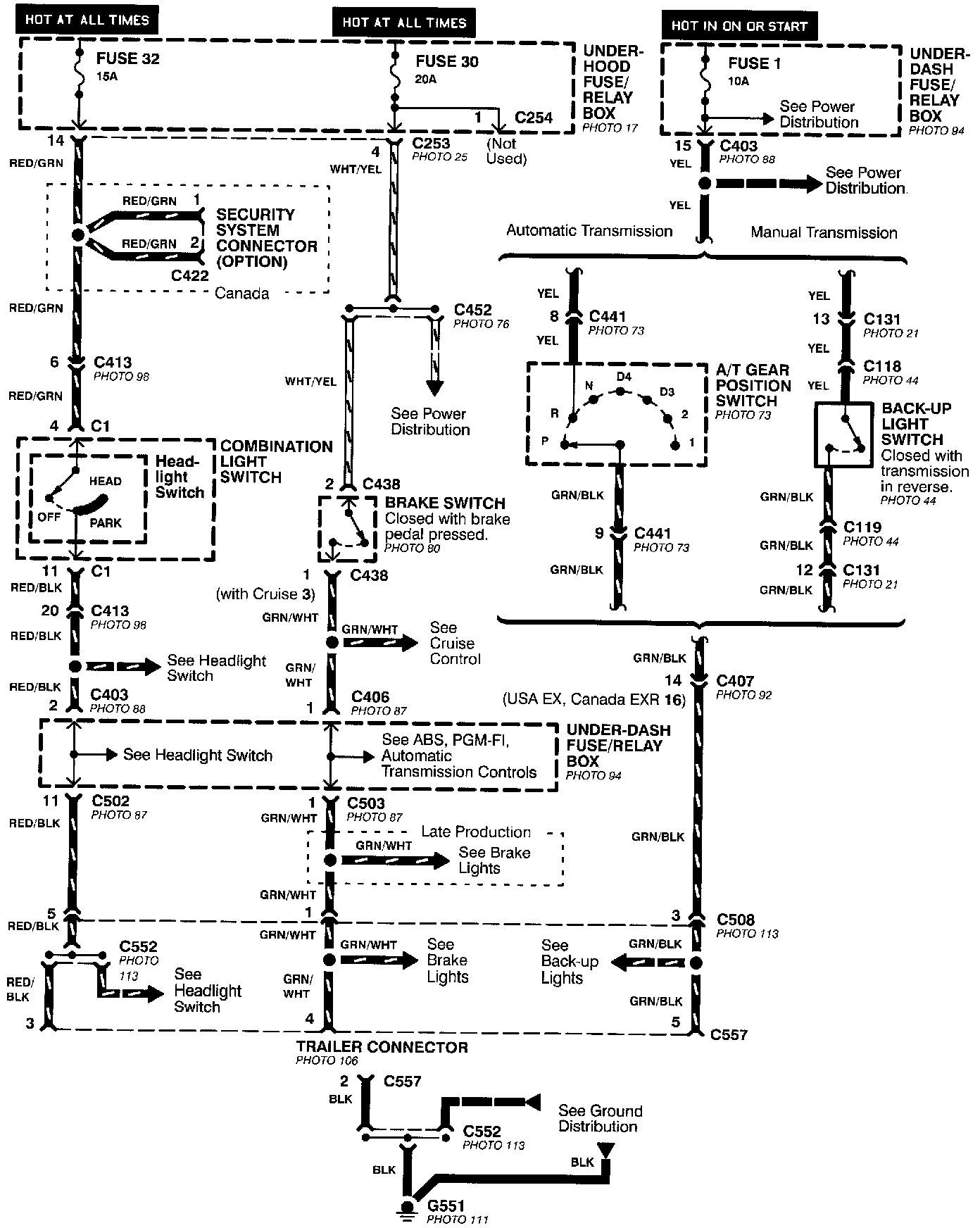

Trailer Connector- Coupe And Sedan (Part 2 Of 2):
