Home >> Honda >> 1994 >> Accord L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Diagrams >> Harness >> Fuel Unit Wire Harness >> Coupe and Sedan

Coupe and Sedan

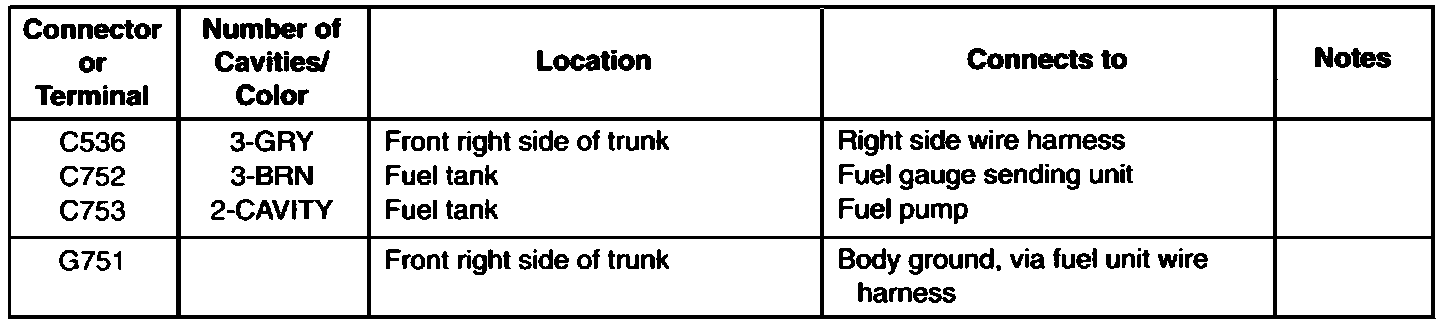

Fuel Unit Wire Harness(Coupe And Sedan):

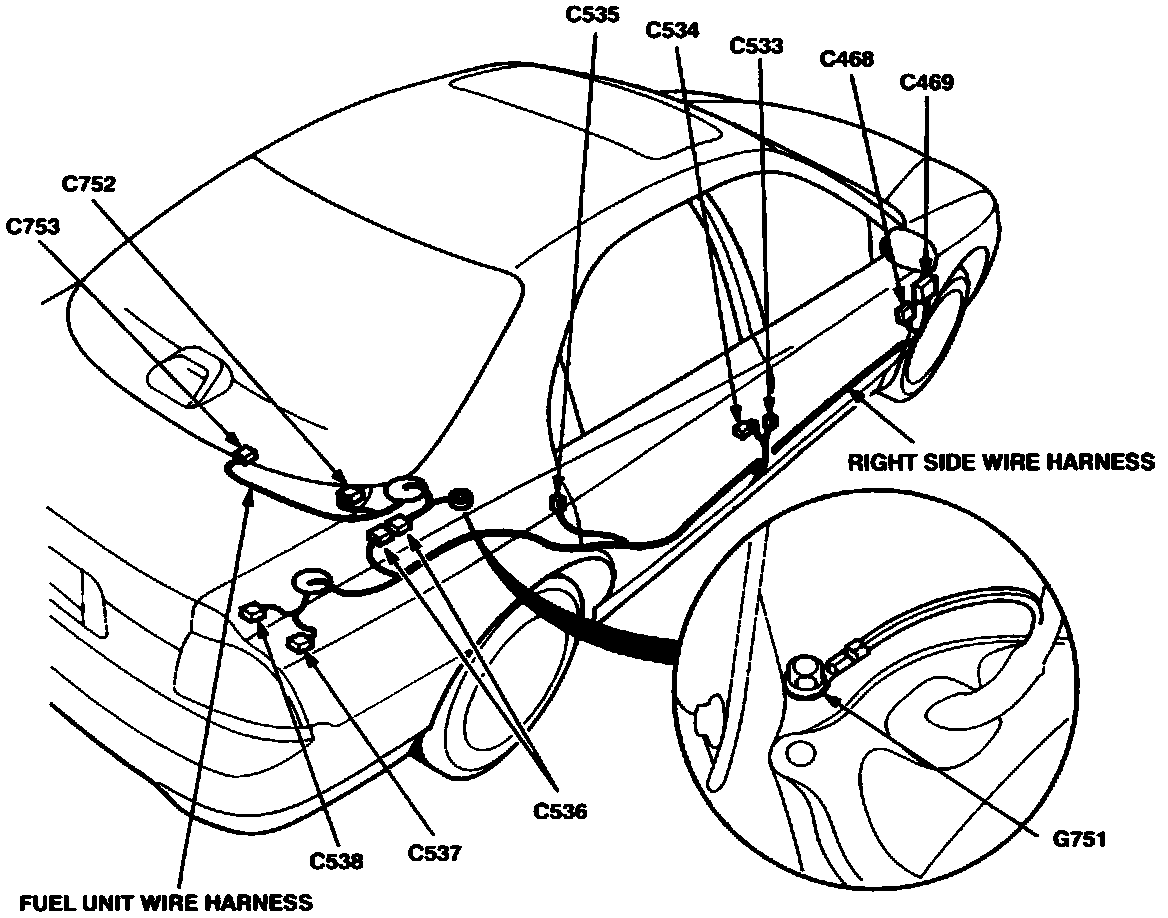

Fuel Unit Wire Harness:
